Lighting set

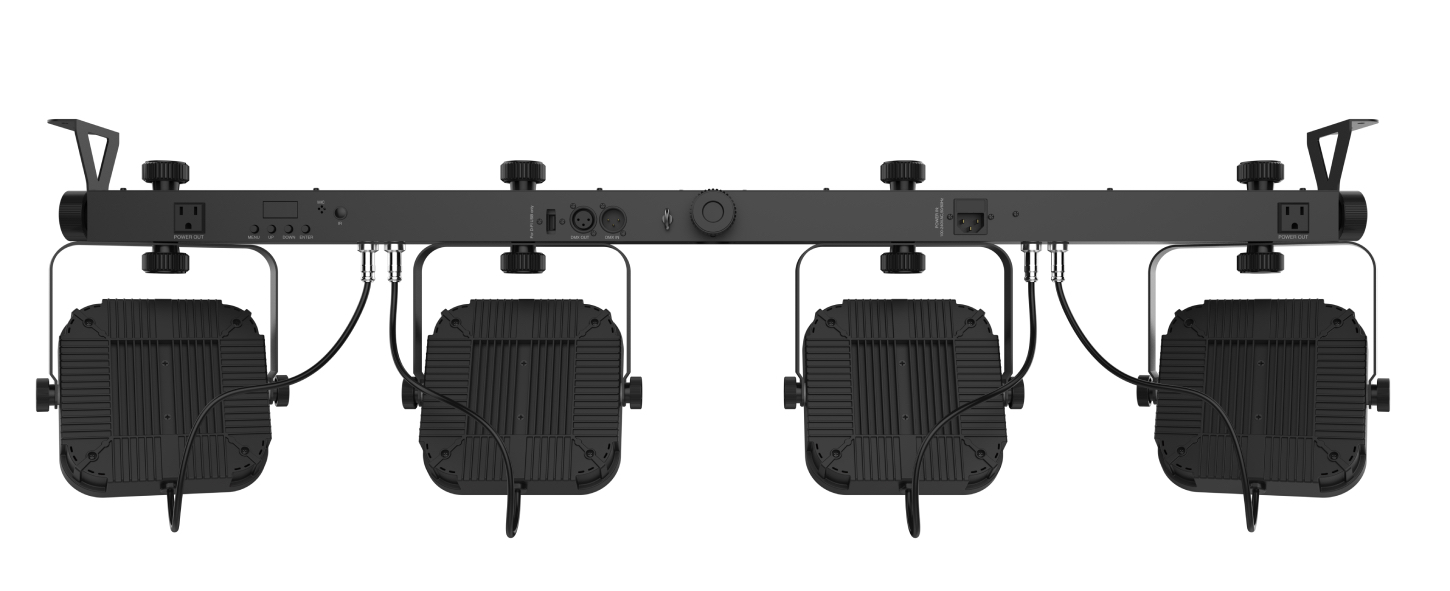

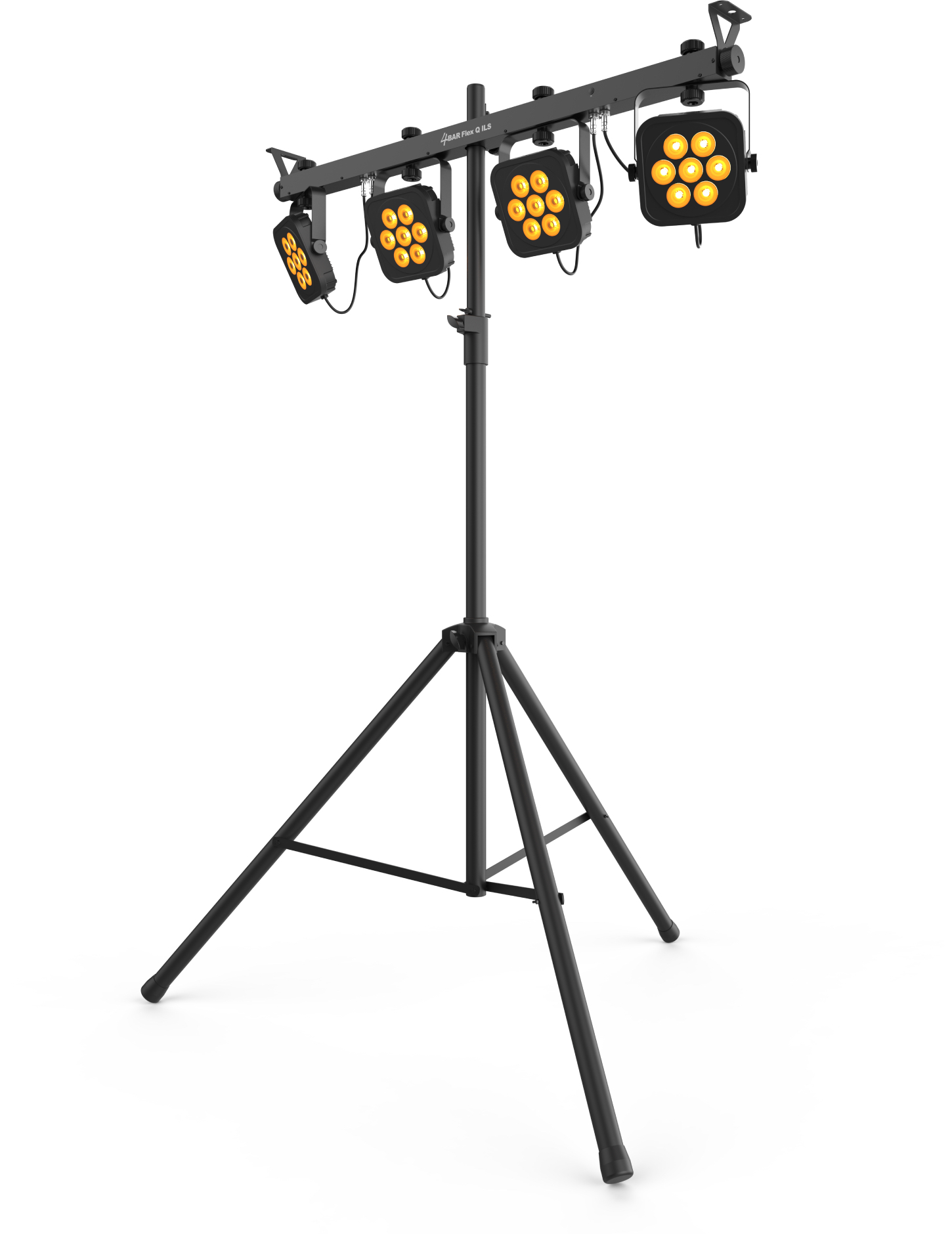

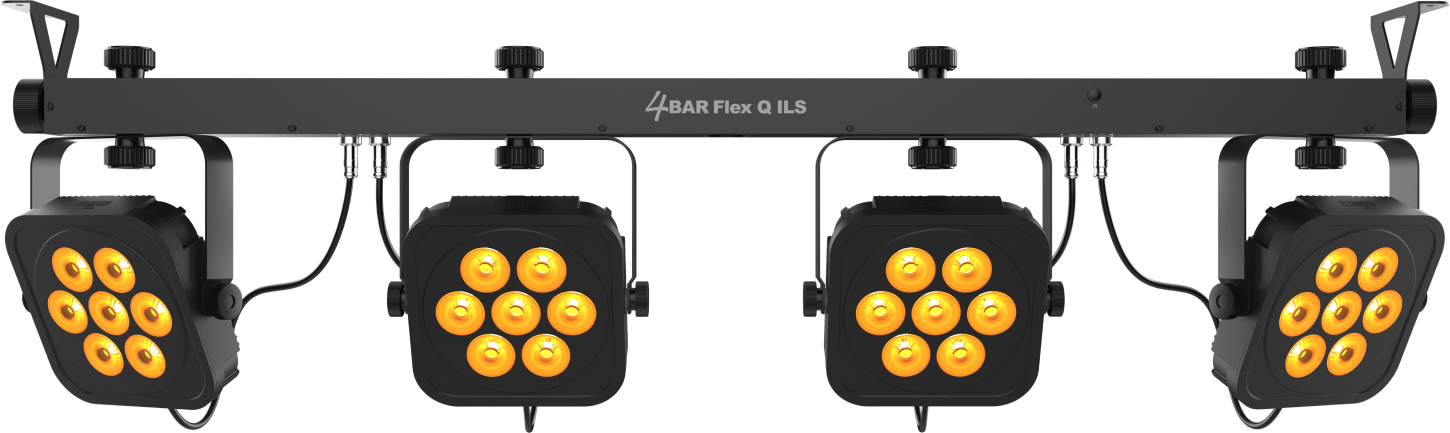

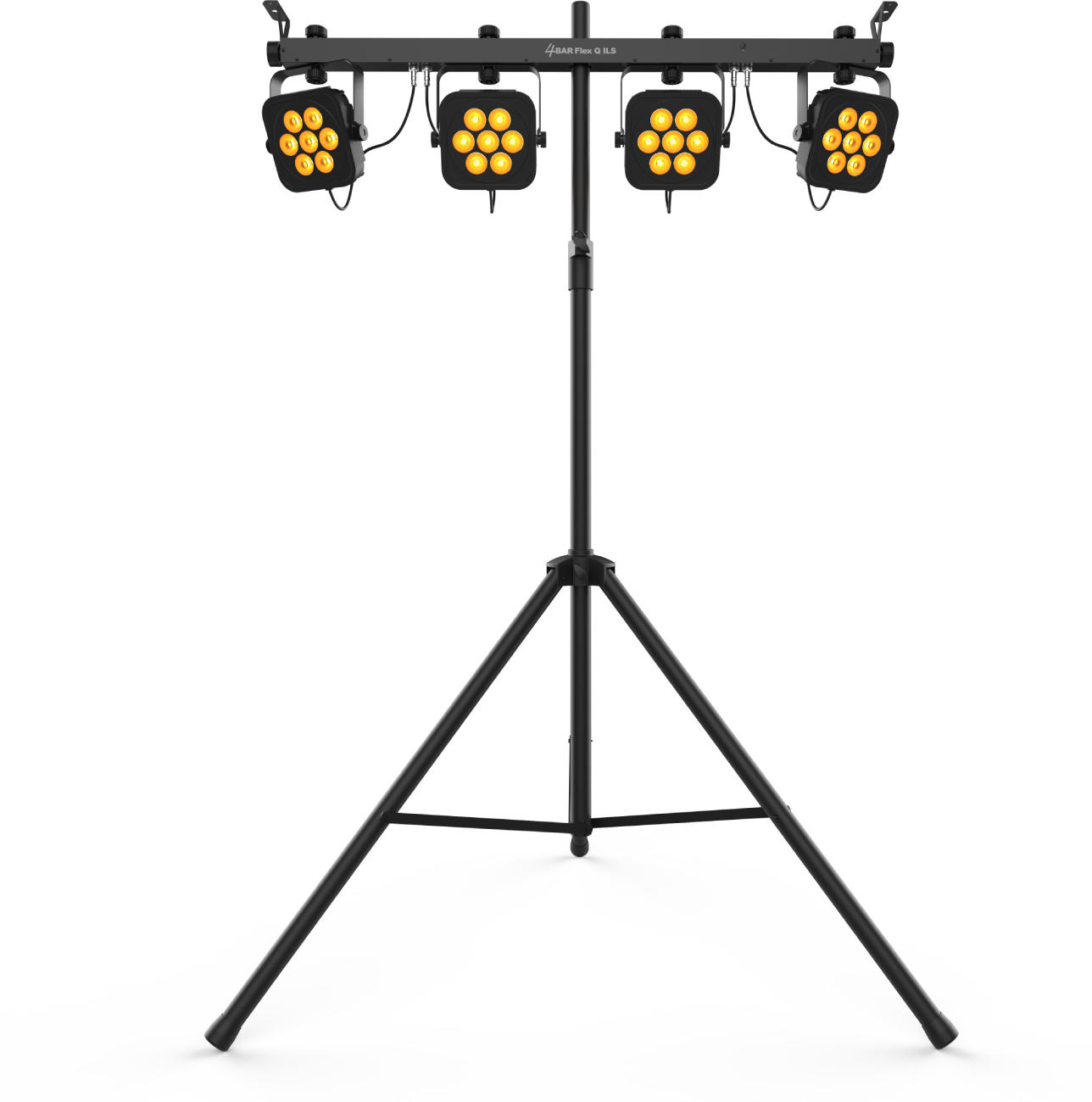

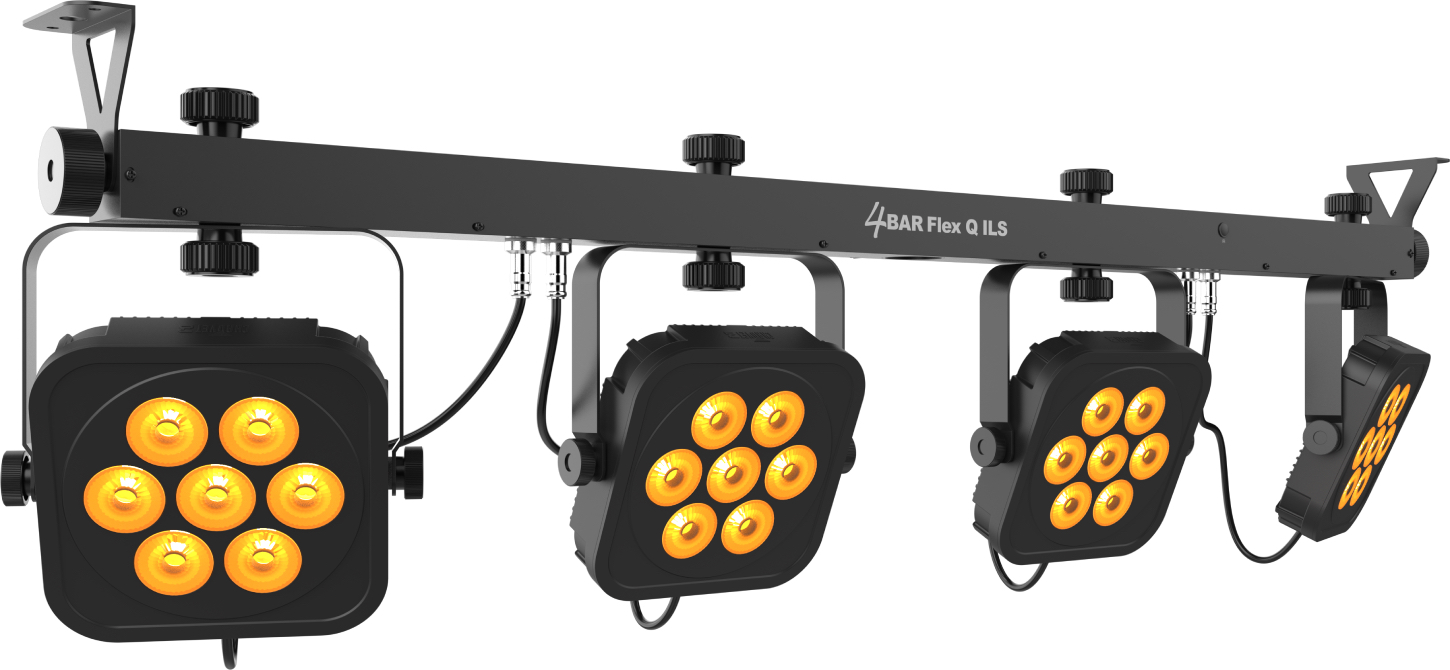

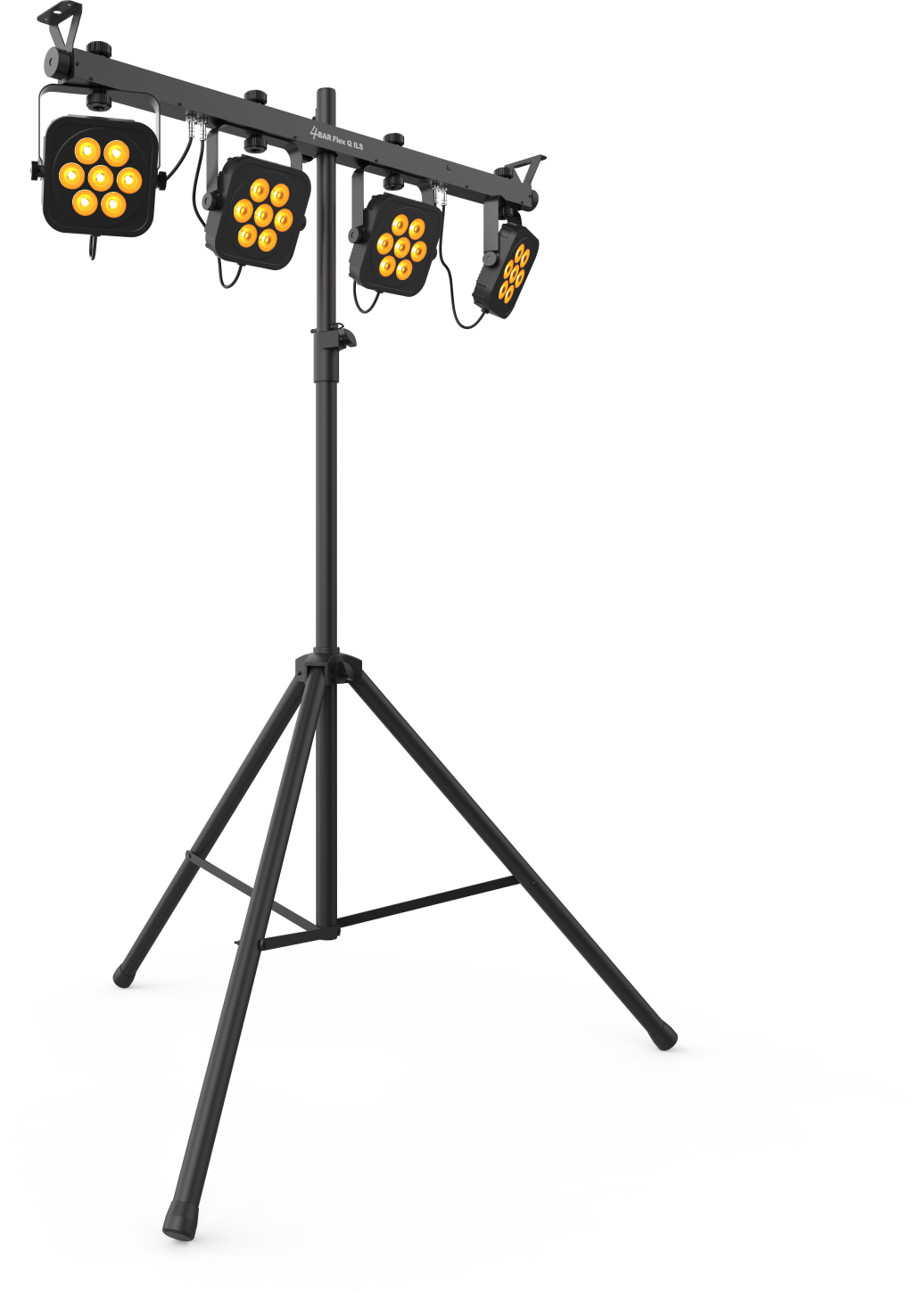

The Chauvet DJ 4 bar Flex q ILs is a pack of 4 spotlights with the ils function (wireless).
Complete wash lighting solution equipped with high intensity quadricolor LEDs (RGBA)
- ILS compatible for use in the ILS ecosystem
- Mounts on most tripods or speaker stands without additional clamps
clamps, using the pass-through hole
- Generates a wide color spectrum and allows for natural color temperatures with punchy amber colors.
Natural color temperatures with vibrant amber LEDs
- USB D-FiTM compatibility for wireless master/slave or DMX control
wireless control.
- Create the ultimate light show by installing up to 4 additional spotlights on top of the 4B
on top of the 4Bar Flex Q
- Provide power to the additional lights using the built-in
integrated Edison outlets
- Maximize installation possibilities and configurations with the 2 included
L-brackets included
- Easily set up and take down in minutes with the included carry bag.
Carrying bag included
- Multiple control options: standalone, DMX mode, wireless foot switch or IRC-6 remote control,
wireless footswitch or IRC-6 remote control
- Mounts securely to a truss with built-in bolts
Complete wash lighting solution equipped with high intensity quadricolor LEDs (RGBA)
- ILS compatible for use in the ILS ecosystem
- Mounts on most tripods or speaker stands without additional clamps
clamps, using the pass-through hole
- Generates a wide color spectrum and allows for natural color temperatures with punchy amber colors.
Natural color temperatures with vibrant amber LEDs
- USB D-FiTM compatibility for wireless master/slave or DMX control
wireless control.
- Create the ultimate light show by installing up to 4 additional spotlights on top of the 4B
on top of the 4Bar Flex Q
- Provide power to the additional lights using the built-in
integrated Edison outlets
- Maximize installation possibilities and configurations with the 2 included
L-brackets included
- Easily set up and take down in minutes with the included carry bag.
Carrying bag included
- Multiple control options: standalone, DMX mode, wireless foot switch or IRC-6 remote control,
wireless footswitch or IRC-6 remote control
- Mounts securely to a truss with built-in bolts
Lire la suite
Technical sheet
- DMX channels: 4, 6 or 19
- DMX connectors: 3-pin XLR
- Light source: 28 LEDs (4-color RGBA) 3.5 W, (1.3 A),
- 50,000 hour life expectancy
- Strobe rate: 0 to 20 Hz
- Beam angle: 14°.
- Field of view: 23°.
- Illuminance: 2,353 lux at 2 m (per pod)
- Operating frequency (D-Fi): 2.412 to 2.484 GHz
- Operating frequency (pedal): 433 MHz
- Maximum unobstructed distance (foot pedal): 30.5 m (100 ft)
- Foot switch battery: 9 V
- Input voltage: 100-240 VAC, 50/60 Hz (auto-ranging)
- Power and current: 80 W, 1.2 A at 120 V, 60 Hz
- Power and current: 78 W, 0.6 A @ 230 V, 50 Hz
- Fits tripod sizes: 1.5 in (36.80 mm)
- Bracket mounting hole: M10 (1.5 mm pitch)
- Weight: 12.2 lbs (5.5 kg)
- Weight (controller): 0.6 kg (1.2 lb)
- Dimensions: 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
- Size (controller): 16.5 x 5.2 x 1.5 inches (419 x 132 x 38 mm)
- Controller included: IRC-6
- Optional controller: D-Fi USB
- Approvals: CE, RoHS, UKCA.
