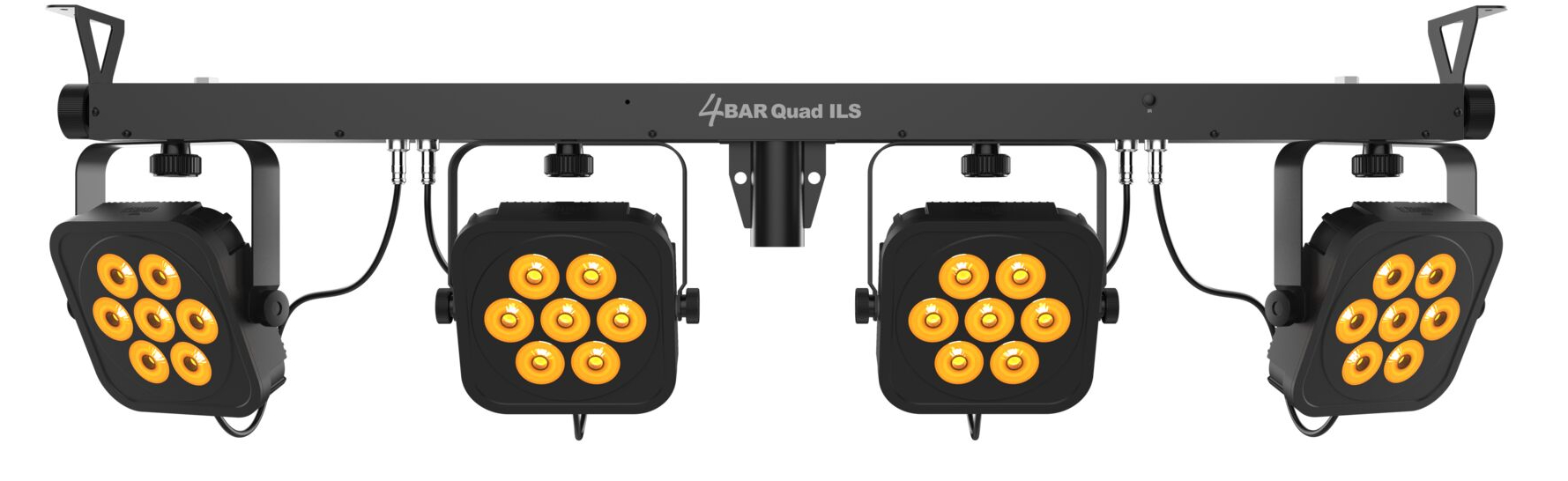

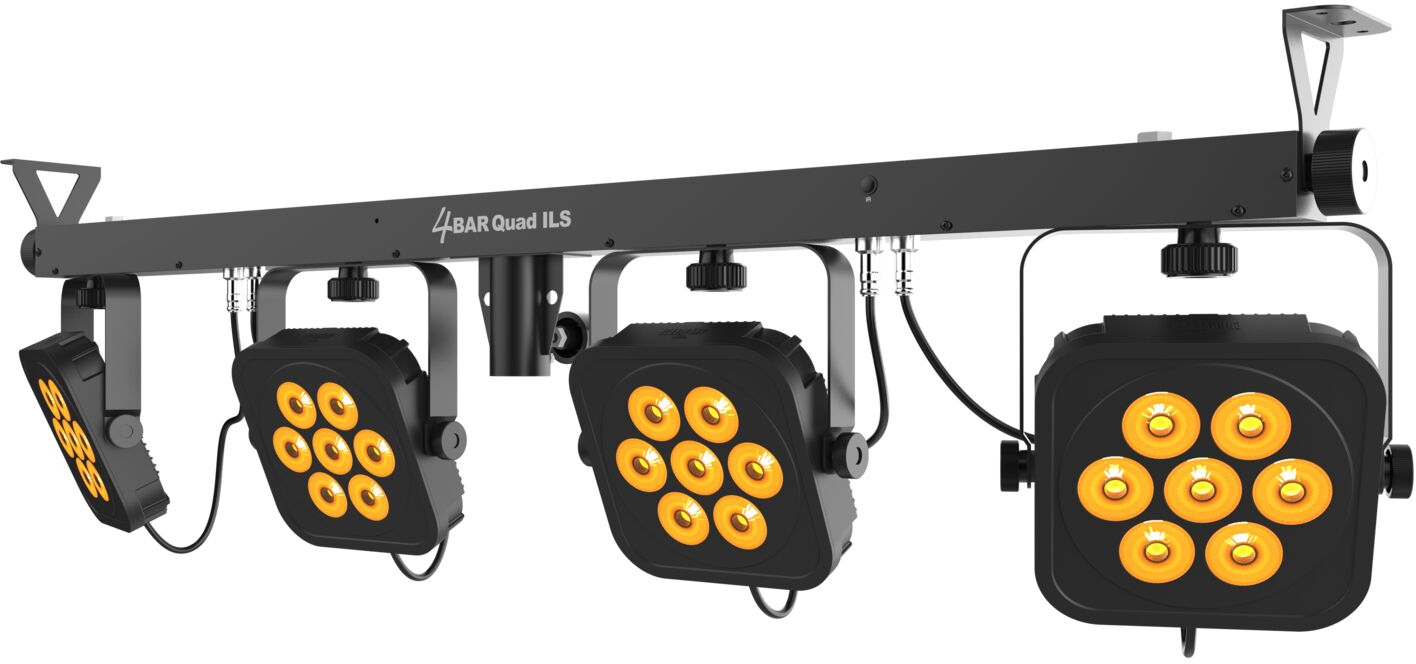

Lighting set
Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs
ILS compatibility for use in the ILS ecosystem
Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
Out of the box wireless control with included footswitch or optional IRC-6 controller

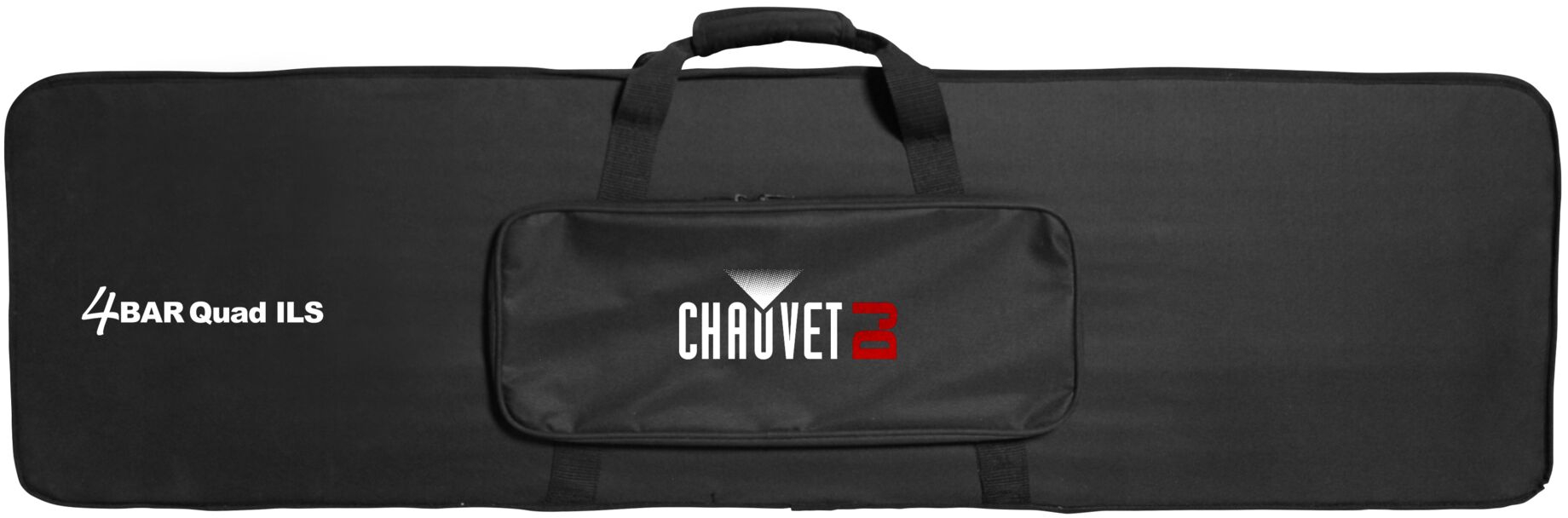

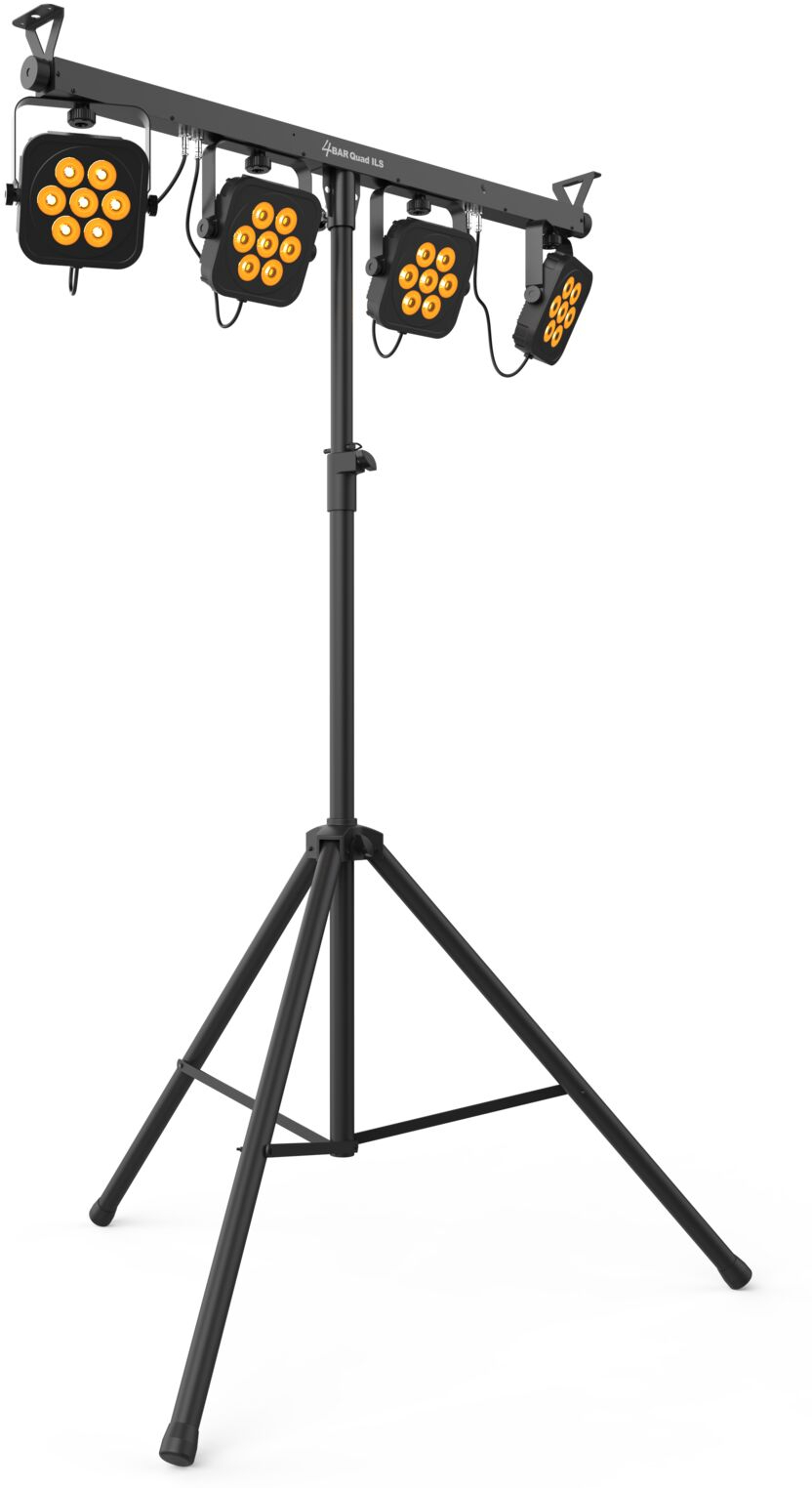

Easily set up and tear down in minutes with the included tripod stand and carrying bags
D-Fi™ USB compatibility for wireless Master/Slave or DMX control
Achieve total room or stage coverage with 4 individually adjustablE
heads
Increase mounting options by safely mounting to truss using built-in bolts
ILS compatibility for use in the ILS ecosystem
Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
Out of the box wireless control with included footswitch or optional IRC-6 controller
Easily set up and tear down in minutes with the included tripod stand and carrying bags
D-Fi™ USB compatibility for wireless Master/Slave or DMX control
Achieve total room or stage coverage with 4 individually adjustablE
heads
Increase mounting options by safely mounting to truss using built-in bolts
Technical sheet
- DMX Channels:4, 6 or 19
- DMX Connectors:3-pin XLR
- Light Source:28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
- Strobe Rate:0 to 20 Hz
- Beam Angle:14°Field Angle:23°Illuminance:2,353 lux @ 2 m (per pod)Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)Power and Current:
- 80 W, 1.2 A @ 120 V, 60 Hz
- 78 W, 0.6 A @ 230 V, 50 HzWeight:12.2 lb (5.5 kg)Size:45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
- Approvals:CE, RoHS, UKCA
- Operating Frequency (D-Fi): : 2.412 to 2.484 GHz
- Operating Frequency (foot switch): : 433 MHz
- Max Unobstructed Distance (foot switch): : 100 ft (30.5 m)Footswitch battery: : 9 V
- Stand Height: : 7 ft 4 in (2.2 m)Fits Tripod Sizes: : 1.5 in (36.80 mm)
- Bracket Mounting Hole: : M10 (1.5 mm pitch)
- Weight (Controller): : 1.2 lb (0.6 kg)Size (Controller): : 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
- Optional Controllers: : IRC-6, D-Fi USB
