Led bar

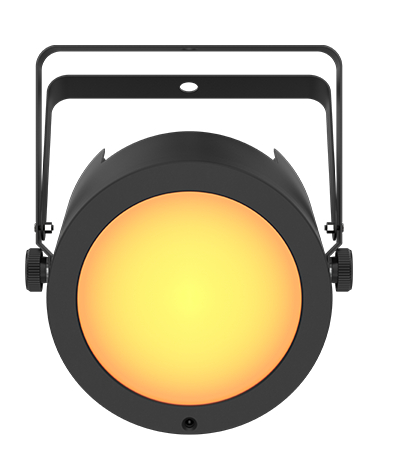

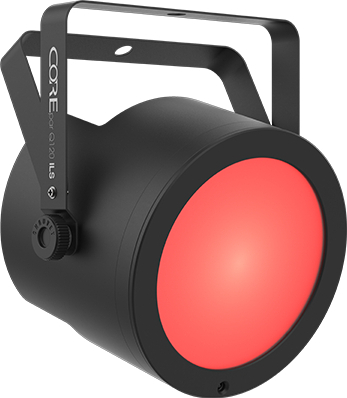

The COREpar Q120 ILS is a 120-watt, four-colour (RGBW) COB (Chip-on-Board) LED that produces a full spectrum of light with unrivalled colour mixing.

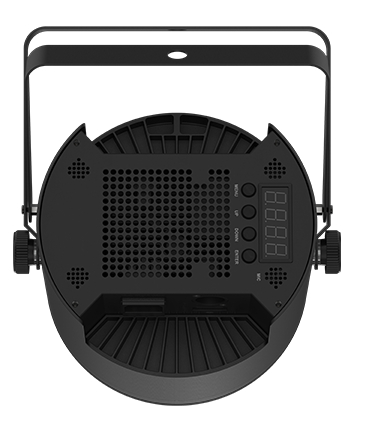

Its robust casing withstands the rigours of moving from gig to gig, and its flat, seated design hugs the floor. Power and DMX sockets are located on the side of the unit for easy connection. Among the powerful features of the COREpar Q120 is ILS compatibility for use in the Integrated Lighting System (ILS) ecosystem, which makes it easy to create coordinated light shows between different types of fixtures. USB D-Fi compatibility is also available for wireless master/slave or DMX control. The included magnetic Fresnel lens lets you switch between ultra-wide and narrow beams in seconds. Create custom colours using the built-in LED screen and cross-fade the LEDs using the built-in dimming curves.
Its robust casing withstands the rigours of moving from gig to gig, and its flat, seated design hugs the floor. Power and DMX sockets are located on the side of the unit for easy connection. Among the powerful features of the COREpar Q120 is ILS compatibility for use in the Integrated Lighting System (ILS) ecosystem, which makes it easy to create coordinated light shows between different types of fixtures. USB D-Fi compatibility is also available for wireless master/slave or DMX control. The included magnetic Fresnel lens lets you switch between ultra-wide and narrow beams in seconds. Create custom colours using the built-in LED screen and cross-fade the LEDs using the built-in dimming curves.
Lire la suite
Technical sheet
- DMX compatible Yes
- DMX Channels: 4 or 9
- DMX Connectors: 3-pin XLR
- Light Source: 1 COB LED (quad-color RGBW) 120 W, (6.9 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 29 Hz
- Beam Angle: (without lens): 56° (with lens): 20°
- Field Angle: (without lens): 100° (with lens): 30°
- Illuminance: (without lens) : 868 lux @ 2 m (with lens) : 4,639 lux @ 2 m
- Power Linking: 6 units @ 120 V; 10 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 100 W, 1.3 A @ 120 V, 60 Hz 94 W, 0.7 A @ 230 V, 50 Hz
- Weight: 4.6 lbs. (2.1 kg)
- Size: 8.9 x 7.4 x 9 in (225 x 188 x 228 mm)
- Approvals: CE, RoHS, UKCA
- Color Temperature Range: 2700 K – 6000 K
- Cable Length: 5ft (1.5 m)
- Bracket Mounting Hole: 13 mm
- WHAT'S INCLUDED
- Fixture
- Power cord
- Magnetic lens
- Quick Reference Guide
