Description

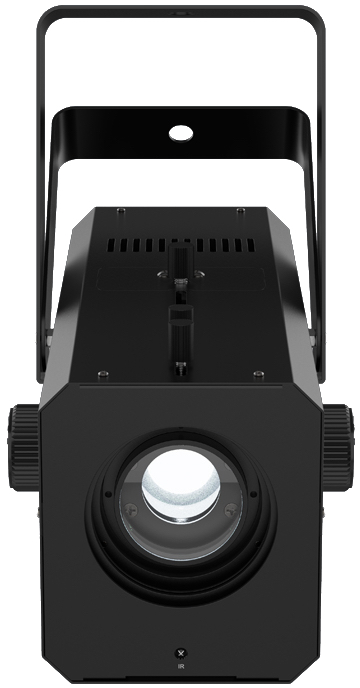

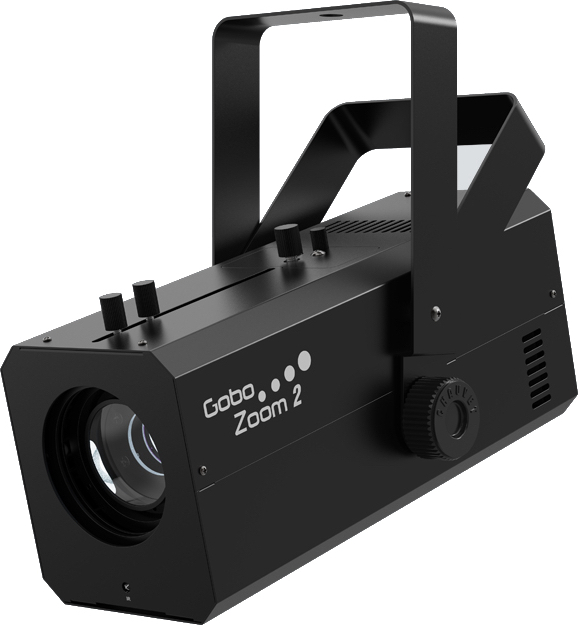

With the Gobo Zoom 2, rock your guests with custom logos, icons and other designs. A high power custom gobo projector with a 70W LED.
Its manual rotation knob allows easy positioning and quick indexing without removing gobos.
The Gobo Zoom 2 comes with 10 gobos and a manual zoom for short or long range applications, making it versatile and convenient.
It doesn't stop there! Most functions can be accessed with the optional IRC-6 remote control and setup time can be reduced by connecting multiple units to the power supply.
Its manual rotation knob allows easy positioning and quick indexing without removing gobos.
The Gobo Zoom 2 comes with 10 gobos and a manual zoom for short or long range applications, making it versatile and convenient.
It doesn't stop there! Most functions can be accessed with the optional IRC-6 remote control and setup time can be reduced by connecting multiple units to the power supply.
Technical sheet
- DMX channels: 1

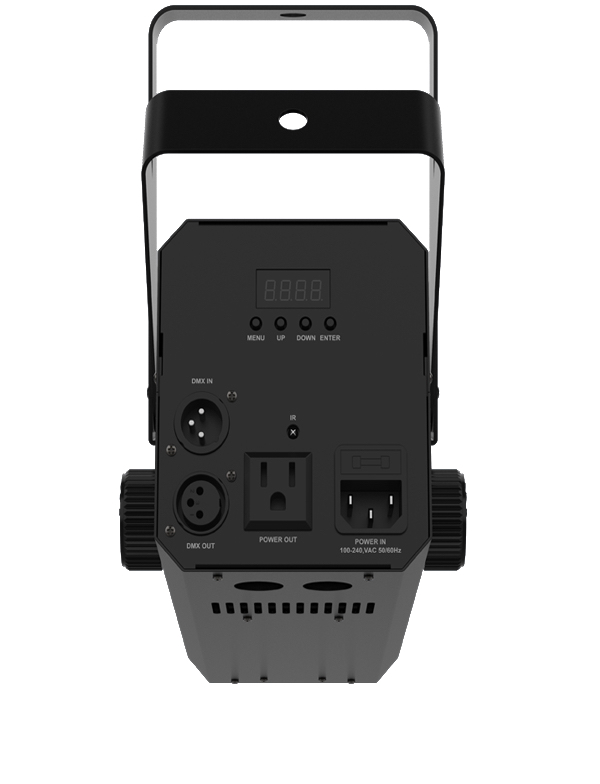

- DMX connectors: XLR 3-pin
- Light source: 1 LED (cool white) 70 W, (3A), 50,000 hours life expectancy
- PWM frequency: 4000 Hz
- Illuminance: (21°) : 8,030 lux @ 2 m
- (38°) 2,660 lux @ 2 mLumens: 2,894
- Electrical connection: 7 units at 120 V; 14 units at 230 V
- Input voltage: 100 to 240 VAC, 50/60 Hz (automatic regulation)
- Power and current: 74 W, 1 A at 120 V, 60 Hz
- 72 W, 0.6 A at 230 V, 50 Hz
- Weight: 2.6 kg
- Dimensions: 330 x 150 x 145 mm
- Approvals: CEGobos (E): 37.3 mm outer, 22 mm image, 1 mm max thickness
- Zoom angle (manual): 21° to 38°Hole on mounting bracket: 13 mmOptional controllers: IRC
