Lyre

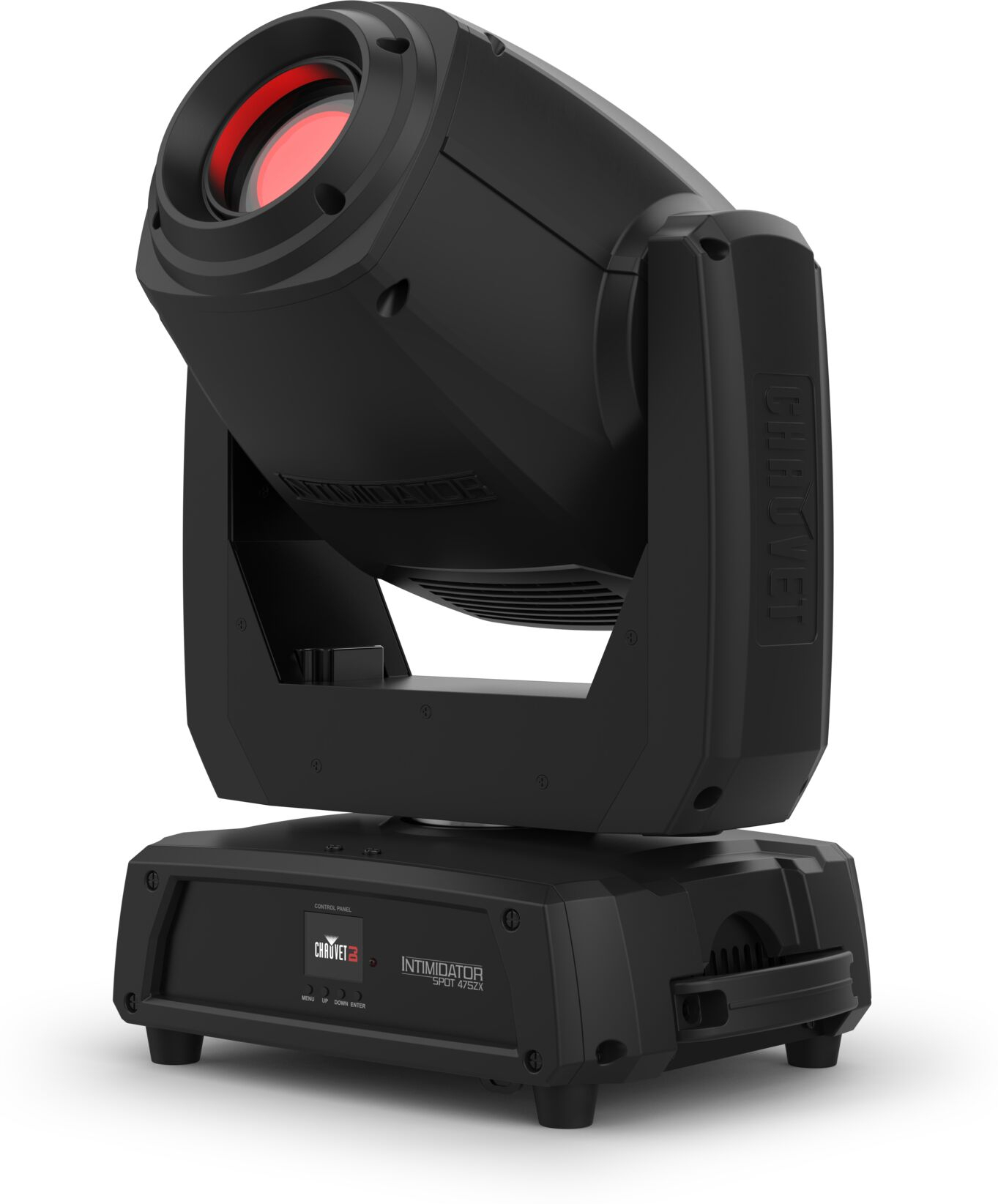

The Chauvet DJ Intimidator Spot 475 ZX is a Spot lyre.
- Compact mobile head designed for large events
- Integrated USB-C port allows for quick software updates
- Built-in RF receiver for wireless control using optional RFC or RFC-XL remotes
RFC-XL remotes
- New home position allows for smoother programming
- Two rotating prisms split the beam for great effects and cover a larger area.
Larger area
- Motorised zoom for short or long range applications
- The ¼ turn suspension bracket allows for single or double mounting.
Single or dual mounting options
- Project sharp gobos from almost any distance with motorized focus.
motorised
- Beams always stay on the dance floor with the built-in Totem mode,
Innovative built-in Totem mode
- Set, record and recall 1 scene manually, directly from the colour LCD screen.
the colour LCD screen
- PowerCON® compatible power input/output connections save setup time.
installation time
- Compact mobile head designed for large events
- Integrated USB-C port allows for quick software updates
- Built-in RF receiver for wireless control using optional RFC or RFC-XL remotes
RFC-XL remotes
- New home position allows for smoother programming
- Two rotating prisms split the beam for great effects and cover a larger area.
Larger area
- Motorised zoom for short or long range applications
- The ¼ turn suspension bracket allows for single or double mounting.
Single or dual mounting options
- Project sharp gobos from almost any distance with motorized focus.
motorised
- Beams always stay on the dance floor with the built-in Totem mode,
Innovative built-in Totem mode
- Set, record and recall 1 scene manually, directly from the colour LCD screen.
the colour LCD screen
- PowerCON® compatible power input/output connections save setup time.
installation time
Lire la suite
Technical sheet
- DMX compatible Yes
- DMX Channels: 10 or 16
- • DMX Connectors: 3 XLR
- • Pan and Tilt: 540°/270°
- • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
- • Colors: 7 + white, split colors, continuous scroll at variable
- speeds
- • Gobos: 7 + open (6 metal + 1 glass), rotating, interchangeable,
- indexing, slot-n-lock, continuous scroll at variable speeds
- • Gobos: 8 + open, indexing, continuous scroll at variable speeds
- • Gobo Size: 25.7 mm outside, 21 mm image, 1.3 mm max
- thickness
- • Prism: 5-facet linear, bi-directional at variable speeds
- • Prism: 6-facet round, bi-directional at variable speeds
- • Light Source: 1 LED (cool white) 250 W, (10 A), 50,000 hours
- life expectancy
- • Strobe Rate: 0 to 20 Hz
- • Zoom Angle (motorized): 13° to 28°
- • Illuminance (13°) : 90,979 lux @ 2 m
- • Illuminance (28°) : 24,565 lux @ 2 m
- • Illuminance (13°) : 14,557 lux @ 5 m
- • Illuminance (28°) : 3,930 lux @ 5 m
- • Lumens : 10,710
- • Color Temperature: 15,000 K
- • Power Linking: 3 units @ 120 V; 7 units @ 230 V
- • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- • Power and Current: 378 W, 3.4 A @ 120 V, 60 Hz
- • Power and Current: 372 W, 1.9 A @ 230 V, 50 Hz
- • Approvals : CE, UKCA, RoHS, MET
- Specifications
- Intimidator Spot 475ZX
- CHAUVETDJ.com
- • Weight: 36.2 lb (16.5 kg)
- • Size: 14.3 x 10 x 21 in (363 x 250 x 531 mm)
- • Optional Controllers: RFC, RFC-XL
