Description

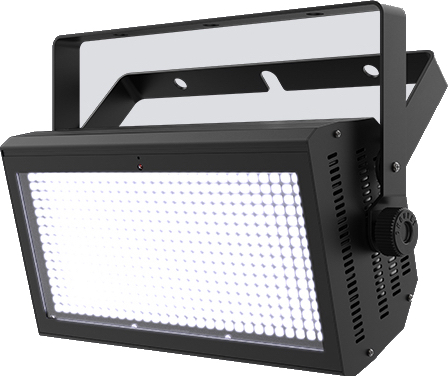

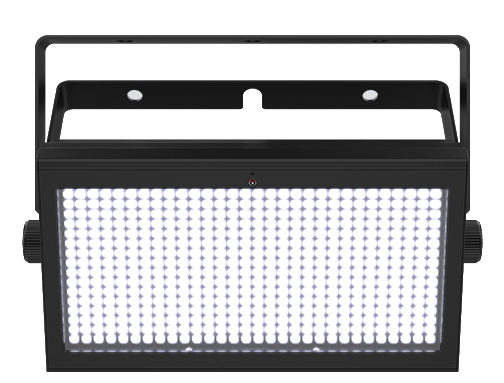

The Chauvet dj Shocker panel 480 is a blinder with led.

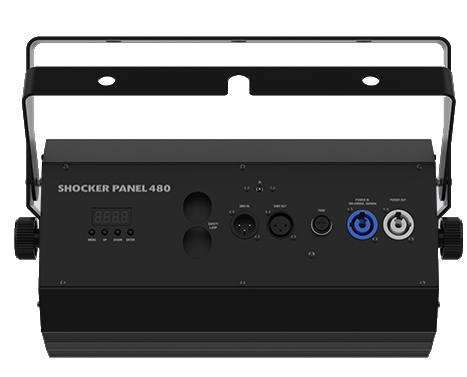

Bring your events to life with the Shocker Panel 480, a single zone blinder that sends out cool white SMD LEDs. Used as a blinder or strobe, it can be triggered easily with the built-in display, DMX or the optional IRC6 remote control. Shocker Panel 480 is ready to go with its rugged housing: ideal for handling in the most demanding mobile conditions. The powerCON® compatible power supply makes it easy and safe to wire and chain fixtures.
Bring your events to life with the Shocker Panel 480, a single zone blinder that sends out cool white SMD LEDs. Used as a blinder or strobe, it can be triggered easily with the built-in display, DMX or the optional IRC6 remote control. Shocker Panel 480 is ready to go with its rugged housing: ideal for handling in the most demanding mobile conditions. The powerCON® compatible power supply makes it easy and safe to wire and chain fixtures.
Lire la suite
Technical sheet
- DMX channels: 4
- DMX connectors: XLR 3-pin
- Light source: 480 SMD LEDs (cool white) 0.7 W (236 mA), lifetime approx. 50,000 hours
- Strobe frequency: 0 to 28 Hz
- Beam angle: 111
- Field angle: 155
- Illuminance: 1348 lux @ 2 m Lumens: 14,974
- Electrical connection: 5 units @ 120 V; 9 units @ 230 V
- Input voltage: 100 to 240 VAC, 50/60 Hz (automatic)
- Weight: 4.3 kgDimensions: 332 x 115 x 170 mm
- Power and current: 208 W, 2.7 A @ 120 V, 60 Hz
- Power and current :: 200 W, 1,5 A @ 230 V, 50 Hz
- Mounting dimensions :: 13 mm
- Optional controllers :: IRC6Certifications :: CE, UKCA
