Pedal power supply

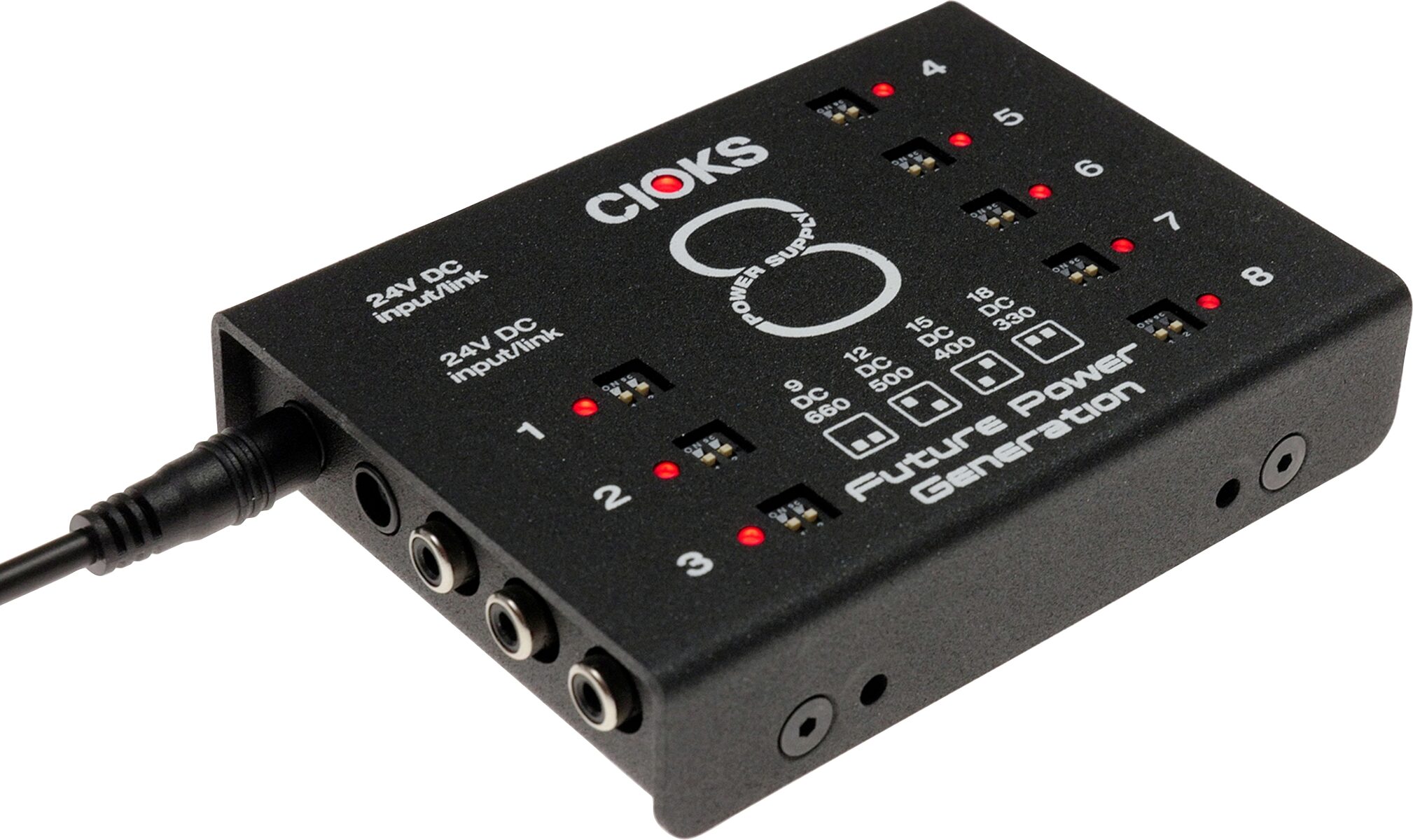

The Cioks 8 is the largest Cioks power supply extension with 8 isolated outputs, each capable of delivering 9 Volts DC at 600 mA. Each output can be 9, 12, 15 or 18 volts. The Cioks 8 was originally designed as an extension to the DC7 in case you needed more outputs, but it can also be used as a stand-alone power supply. To use it as an extension to the DC7, use the DC Link cable supplied to connect the Cioks 8 to the DC7's 24-volt output. To use it as a stand-alone power supply, you can power it from any 24-volt DC power supply with the appropriate DC adapter. To enjoy 6 Watts of power on each of the 8 outputs, the adapter used to power the Cioks 8 must have an output power of 60 Watts.
Lire la suite
Technical sheet
- The Cioks 8 has the same slim 2.54 cm profile as the DC7.
- Ultra-low noise thanks to multi-stage filtering.
- 8 isolated DC outputs at 6 Watts each.
- 660 mA at 9 volts on each output.
- 4 selectable currents on each output.
- LED indicator to monitor overload.
- Maximum output power of 48 Watts (when Cioks 8 is sufficiently powered).
- Mounting kit for Pedaltrain and Templaudio pedalboards included.
- Compatible with Cioks Grip for pedalboard mounting without drilling.
- 12 flex adapters included.
- Link 24-volt DC adapter included.
- Designed in Denmark, assembled in Poland.
- 5-year worldwide warranty.
