Pedal power supply

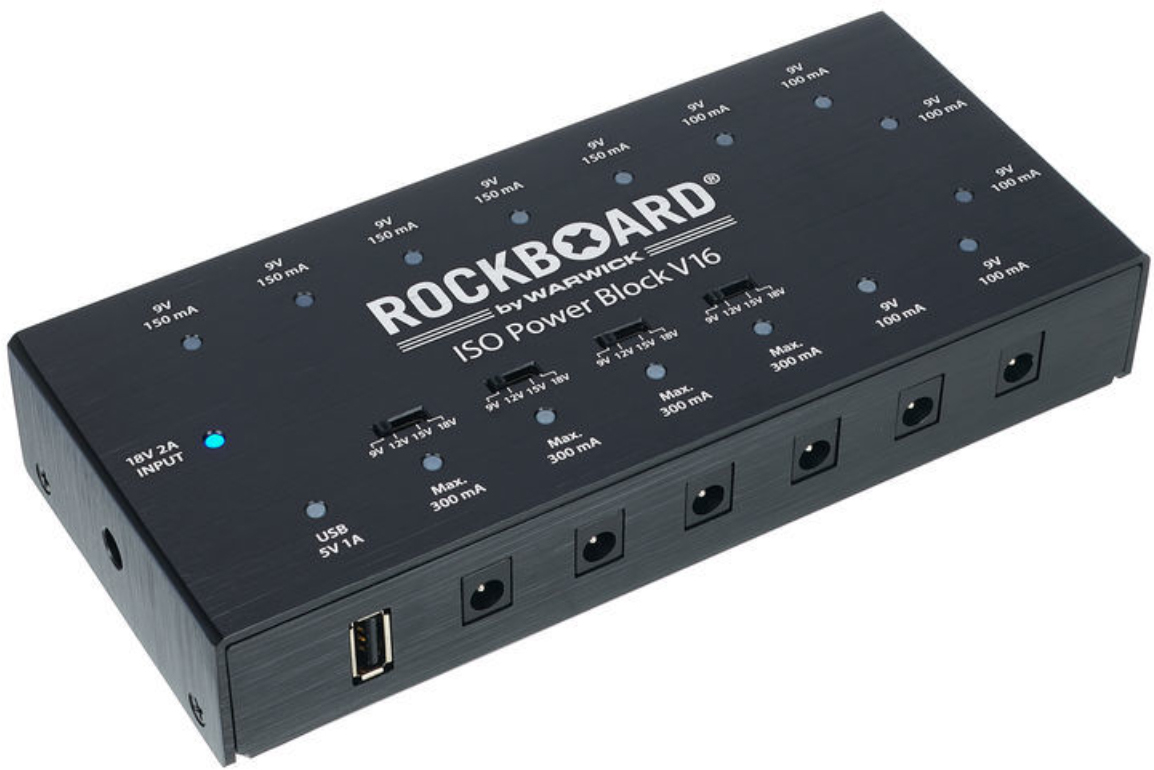

Designed to power up to fifteen effects pedals (9/12/15 or 18v, total power 3550mA) without any background noise, the ROCKBOARD ISO Power Block V16 Isolated Multi Power Supply boasts a remarkable performance/price ratio, featuring advanced filtering technology (each output is galvanically isolated) to prevent high-frequency background noise, and an external transformer to prevent low-frequency interference.
Two switchable outputs provide power for 9VDC (300mA), 12VDC (200mA), 15VDC (180mA), 18VDC (150mA) processors.
A Link 18V DC connection enables several ISO Power Blocks V6 to be connected in series.
Two switchable outputs provide power for 9VDC (300mA), 12VDC (200mA), 15VDC (180mA), 18VDC (150mA) processors.
A Link 18V DC connection enables several ISO Power Blocks V6 to be connected in series.
Lire la suite
Technical sheet
- ROCKBOARD ISO Power Block V16 Isolated Multi Power Supply
- SKU RBO-POWER-BLOCK-ISO16
- Noise-free power supply for 5x effects pedals
- Advanced filtering technology effectively prevents high-frequency background noise
- External transformer prevents low-frequency interference
- 15x galvanically isolated filtered outputs
- 18V DC Link connection for daisy-chaining multiple ISO Power Blocks V6
- Max. total output power 27.95 Watt (3,550 mA)
- 6x 9VDC outputs (100 mA load capacity each, 2.1 x 5.5 mm cylindrical plugs, negative polarity inside)
- 5x 9VDC outputs (150 mA load capacity each, 2.1 x 5.5 mm cylindrical plugs, negative polarity inside)
- 2x switchable outputs 9VDC 300 mA / 12VDC 200 mA / 15VDC 180 mA / 18VDC 150 mA (cylindrical plugs 2.1 x 5.5 mm, negative polarity inside)
- USB peripheral charging capability (5V USB port, 1A resistor, type A)
- Individual status LEDs and short-circuit protection for each connection
- Supplied with cables and 18VDC power supply (2,000 mA, 100-240V AC, adapters EU, UK, US/CA, AU/NZ)
- 178 x 80 x 30 mm
- 400 g / 0.88 lbs
