Cranborne CAMDEN EC1

  • Read reviews (0)
  • Related accessories
  • Similar products

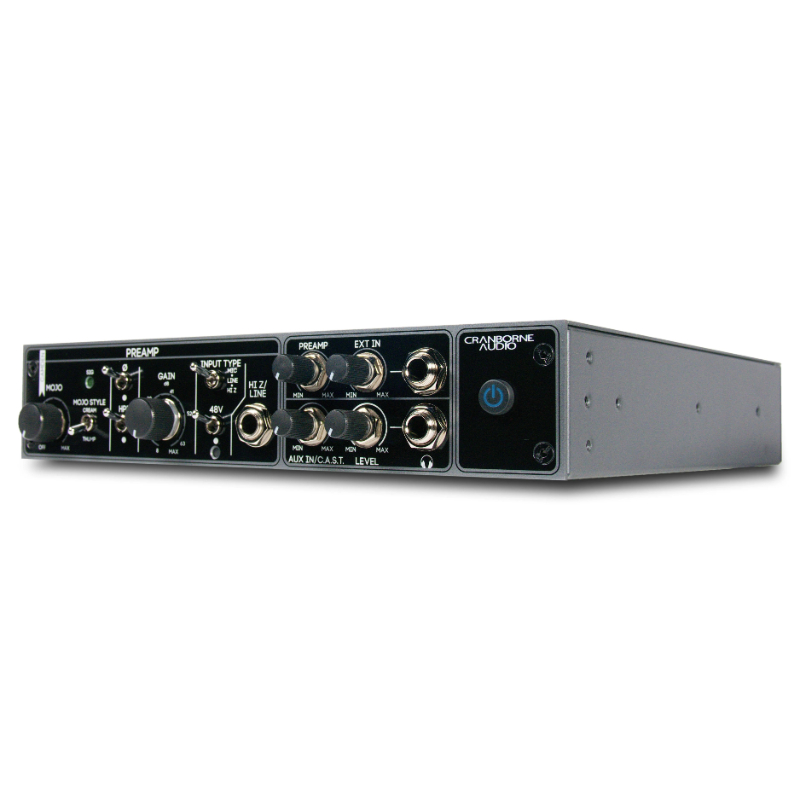

  • Cranborne Camden Ec1 - Preamp - Main picture

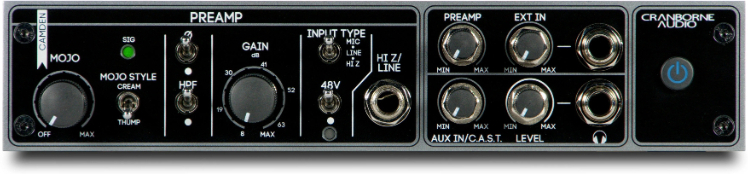

  • Cranborne Camden Ec1 - Preamp - Variation 1

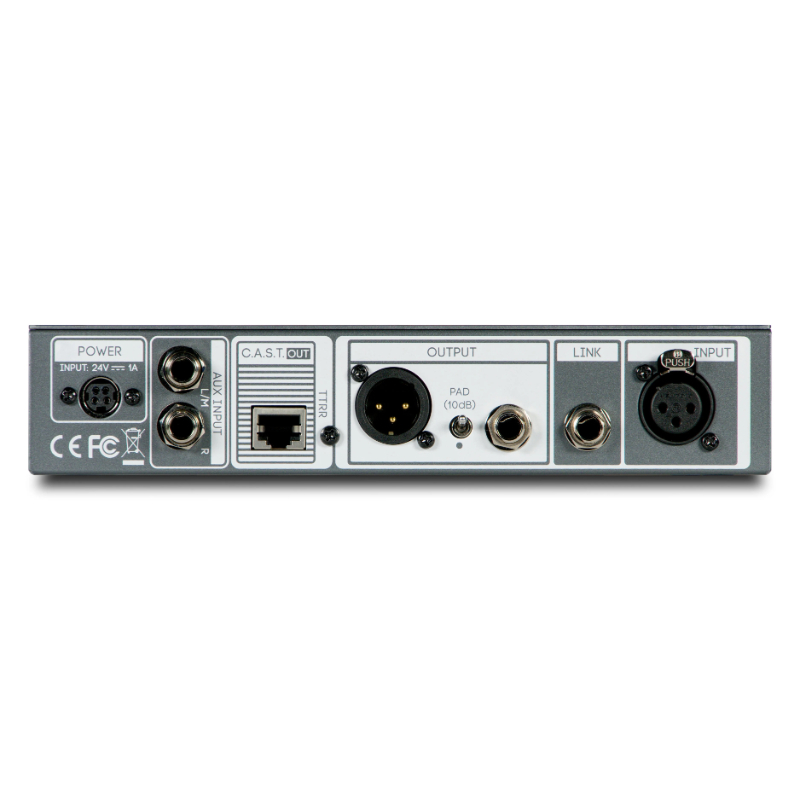

  • Cranborne Camden Ec1 - Preamp - Variation 2
  • Ref : 116764
643,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
In stock
shipped under 3/5 days
Stock in store
Not available in store

The brand Cranborne

Learn more about the Cranborne brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Preamp

The Camden EC1 is a professional-grade studio microphone preamp, awarded for its exceptional sonic transparency. Designed for demanding sound engineers, musicians, and producers, it delivers up to 68.5 dB of ultra-clean gain, ideal for low-gain dynamic mics and ribbon mics.

Equipped with a high-power headphone amplifier with a built-in mixer, the Camden EC1 delivers latency-free mastering-quality monitoring. With its unique "Mojo" feature, you can switch between clinical transparency or add a customizable vintage analog warmth.

It's a versatile, high-performance tool, perfect for studio recording, mixing, and mastering.
Lire la suite

Technical sheet

  • Type of preamp Transistor
  • Audio Performance
  • Gain: up to 68.5 dB
  • EIN: <-129.5 dBu (150 Ω source), <-135.5 dBu (common inputs)
  • THD+N: <0.00025% (1 kHz, 35 dB gain, +24 dBu output)
  • Intermodulation Distortion: <0.0006%
  • Phase Shift: <2.75° (20 Hz – 20 kHz, 40 dB gain), <6° (full gain)
  • Frequency Response: ±0.7 dB (<1 Hz to >1 MHz, 35 dB gain), ±1 dB (<5 Hz to >200 kHz, full gain)
  • Mojo Overdrive Control
  • Progressive control with true bypass
  • Two distinct modes:
  • Thump: Bass boost (even and odd harmonics between 20 Hz and 160 Hz)
  • Cream: Smooth harmonic addition, fundamental reduction, transformer-inspired
  • Headphone Amplifier
  • Frequency Response: <±1 dB, from <1 Hz to >100 kHz
  • Output Impedance: 0.33 Ω
  • THD: 0.0003% (1 kHz)
  • Output Power:
  • 2 × 250 mW @ 600 Ω
  • 2 × 450 mW @ 220 Ω
  • 2 × 250 mW @ 100 Ω
  • Zero-latency direct mix with external playback via Aux Input
  • Independent volume controls (CH1, Ext In, Aux Input)
  • Connectivity
  • Balanced XLR outputs and impedance-balanced 1/4" TRS jacks
  • -10 dB pad for compatibility with audio interfaces Sensitive
  • 1/4” jack "Link" output for DI or distribution to amp/effects
  • 48V LED indicator: orange (charging), red (ready)
  • C.A.S.T. integration
  • C.A.S.T. OUT port compatible with 500R8 / 500ADAT
  • Direct signal transmission to 500 series modules
  • Receive stereo mixes from interfaces and monitor via the Camden EC1
  • Connect via shielded Cat 5e, 6, or 7 network cable
  • Power supply
  • External 24V, 1.25A power supply with secure connector
More specifications
Fewer specifications

User reviews
