The Cranborne Audio N22H is a reference-quality headphone amplifier designed to deliver the full potential of even the most demanding headphones. It replaces the often-limited built-in amplifiers found in audio interfaces and delivers exceptional power and audio precision, regardless of the impedance or sensitivity of the headphones being used.
In addition to its advanced technical performance, the N22H incorporates C.A.S.T. technology, enabling simplified audio cabling via Cat 5e, 6, or 7 network cables over distances of up to 100 meters. It can be powered by either mains power or a 9V battery, making it ideal for both fixed installations and mobile use.
In addition to its advanced technical performance, the N22H incorporates C.A.S.T. technology, enabling simplified audio cabling via Cat 5e, 6, or 7 network cables over distances of up to 100 meters. It can be powered by either mains power or a 9V battery, making it ideal for both fixed installations and mobile use.
Lire la suite
Technical sheet
- Device Type
- High-performance headphone amplifier with CAST connectivity
- Standalone, portable, or installable unit
- Audio Performance
- THD+N: <0.0009% (-100.4 dB) at +6 dBu, 1 kHz, A-weighted, 100 kΩ load
- Frequency Response: 1 dB from <0.8 Hz to >200 kHz
- Output Impedance: 0.33 ohms
- Output Power (1 kHz)
- 252 mW x 2 @ 600 ohms
- 502 mW x 2 @ 220 ohms
- 950 mW x 2 @ 100 ohms
- 470 mW x 2 @ 32 ohms
- Operating Modes
- High Power Mode: For high-impedance, open-back, over-ear headphones, mastering
- Low Power Mode: For low-impedance, in-ear or closed-back headphones, recording

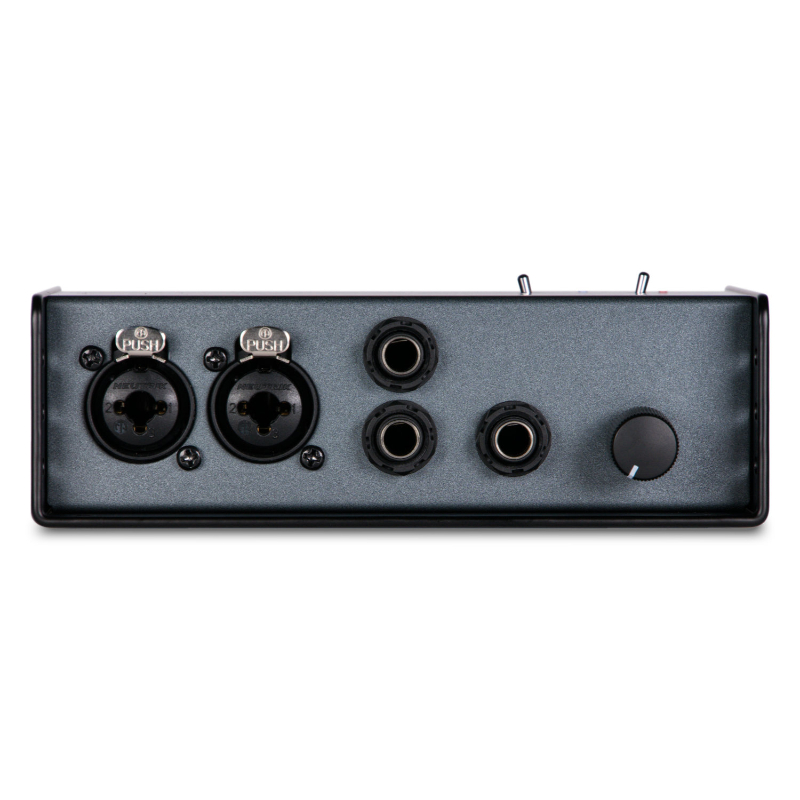

- Connections
- 2 inputs Balanced combo jacks
- 2 balanced XLR and 1/4" jack outputs

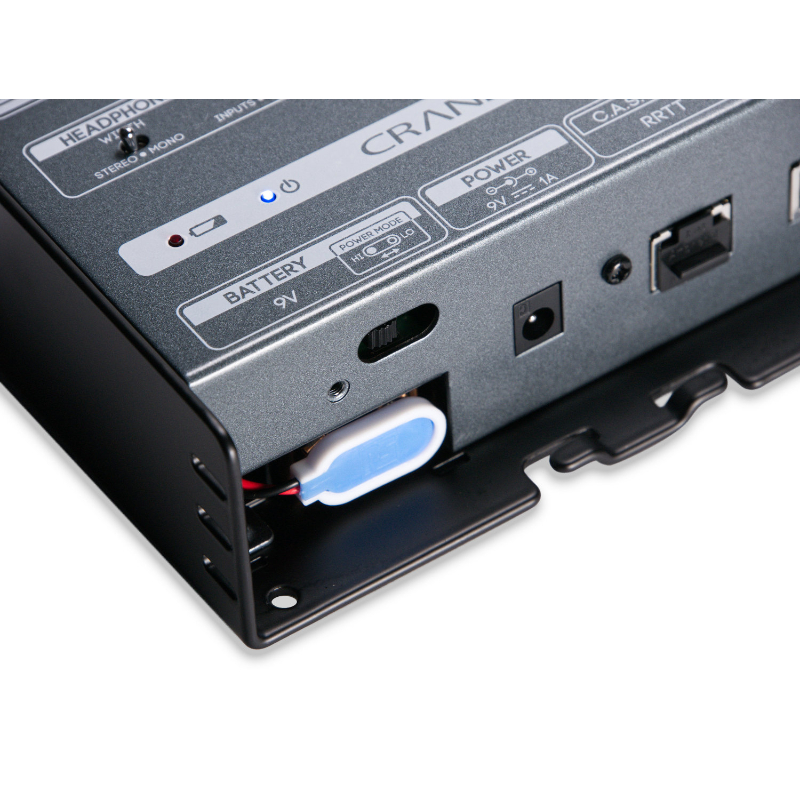

- Power supply
- 9V battery compatible (up to 10 hours on low power, 2 hours on high power)
- 9V DC power supply included (center negative, 1000 mA recommended)
- Compatible with effect pedal adapters
- C.A.S.T. Connectivity
- C.A.S.T. IN (RRTT) port: from an N22 or other compatible source
- C.A.S.T. OUT (TTRR) port: to a 500R8, 500ADAT, or other C.A.S.T. device
- Transmission via Cat 5e, 6, or 7 cable up to 100 meters
- Physical Design
- Robust metal housing
- Non-slip rubber feet
- 3/8" thread for microphone stand mounting
- Cable tie holes
- Mounting holes for permanent installation
