Effects processor

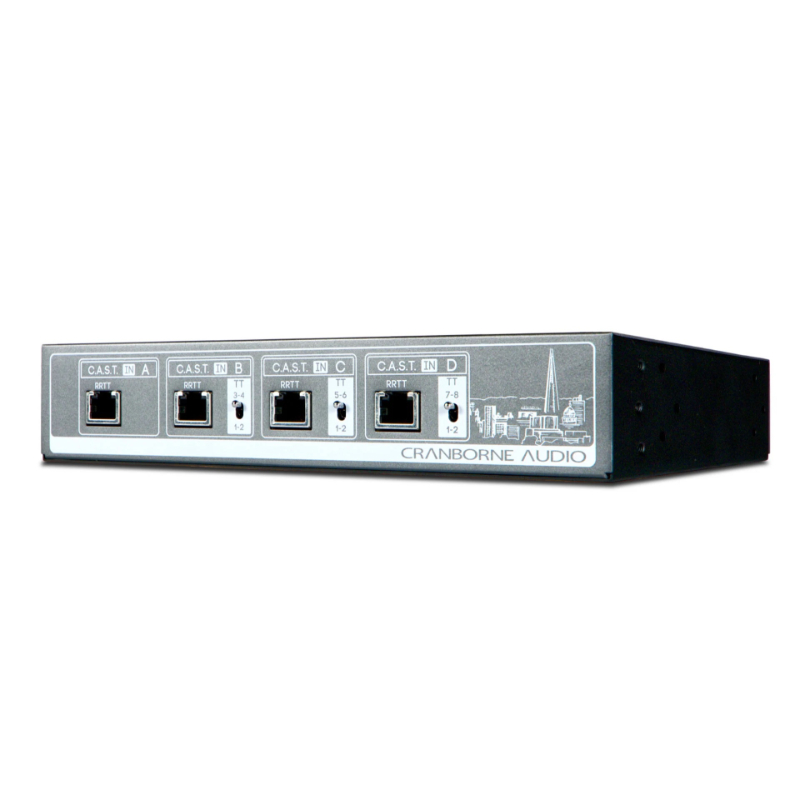

The Cranborne Audio N8 is an analog audio distribution hub utilizing proprietary C.A.S.T. (Cat 5 Analogue Snake Transport) technology. It radically simplifies the audio infrastructure of a studio or live environment by replacing up to four XLR cables with a single Cat 5e, Cat 6, or Cat 7 network cable.
With its standard DB25 connections and four C.A.S.T. ports, the N8 acts as the heart of a modular audio network, capable of distributing up to 16 analog audio channels with consistent sound quality and plug-and-play installation.
This system is ideal for both fixed and mobile installations and is compatible with any audio interface or mixing console via DB25.
With its standard DB25 connections and four C.A.S.T. ports, the N8 acts as the heart of a modular audio network, capable of distributing up to 16 analog audio channels with consistent sound quality and plug-and-play installation.
This system is ideal for both fixed and mobile installations and is compatible with any audio interface or mixing console via DB25.
Lire la suite
Technical sheet
- Device Type
- Analog Audio Distribution Hub via Network Cabling (CAST)
- Connectivity

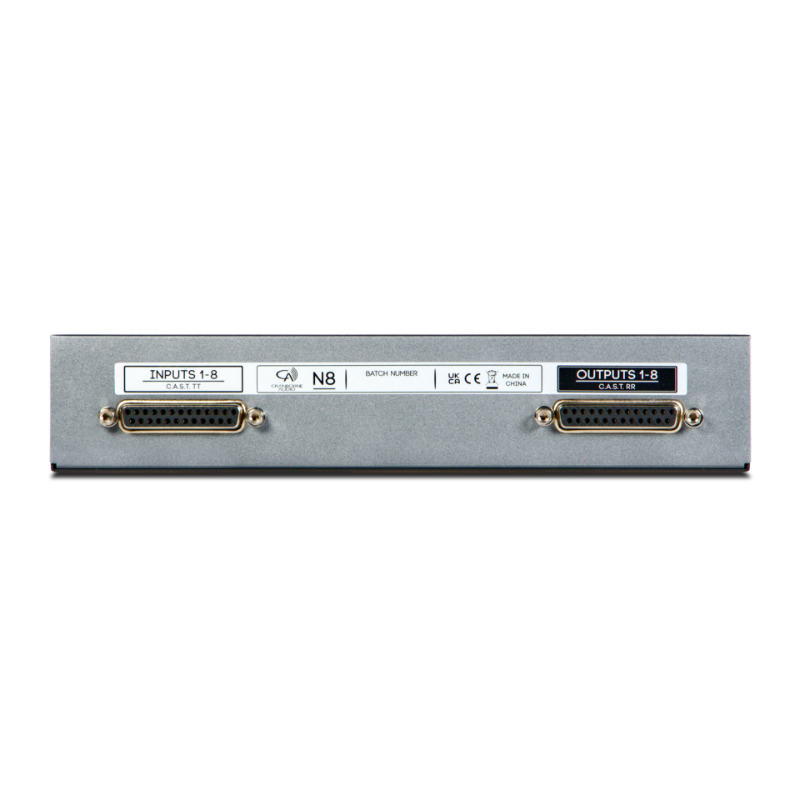

- 8 analog inputs via DB25 connector
- 8 analog outputs via DB25 connector

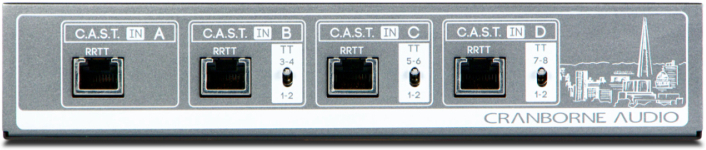

- 4 RJ45 CAST ports (1 port per compatible box, i.e., 4 channels per port)
- CAST Technology
- Analog transmission of 4 audio channels via network cable (Cat 5e, 6, or 7)
- Transmission distance up to 100 meters
- Single cable replaces:
- 2 XLR microphones
- 2 XLR headphone returns
- Dedicated headphone power supply
- Compatibility
- Audio interfaces, consoles, and analog equipment via DB25
- CAST distribution boxes Like the N22 and N22H
- Typical Uses
- In studio control rooms or on stage
- Centralized and simplified cabling
- Vocal booth or musician's station with monitoring and recording
- Main Benefits
- Drastically reduced cabling
- Quick and clean installation
- No dedicated power supply required on CAST boxes
- Ideal for modular studios or mobile configurations
