Description
The INEAR PLUG UHF 100 wireless in-ear monitoring system is designed to provide an immersive and convenient audio experience, ideal for performers on stage.
Overview

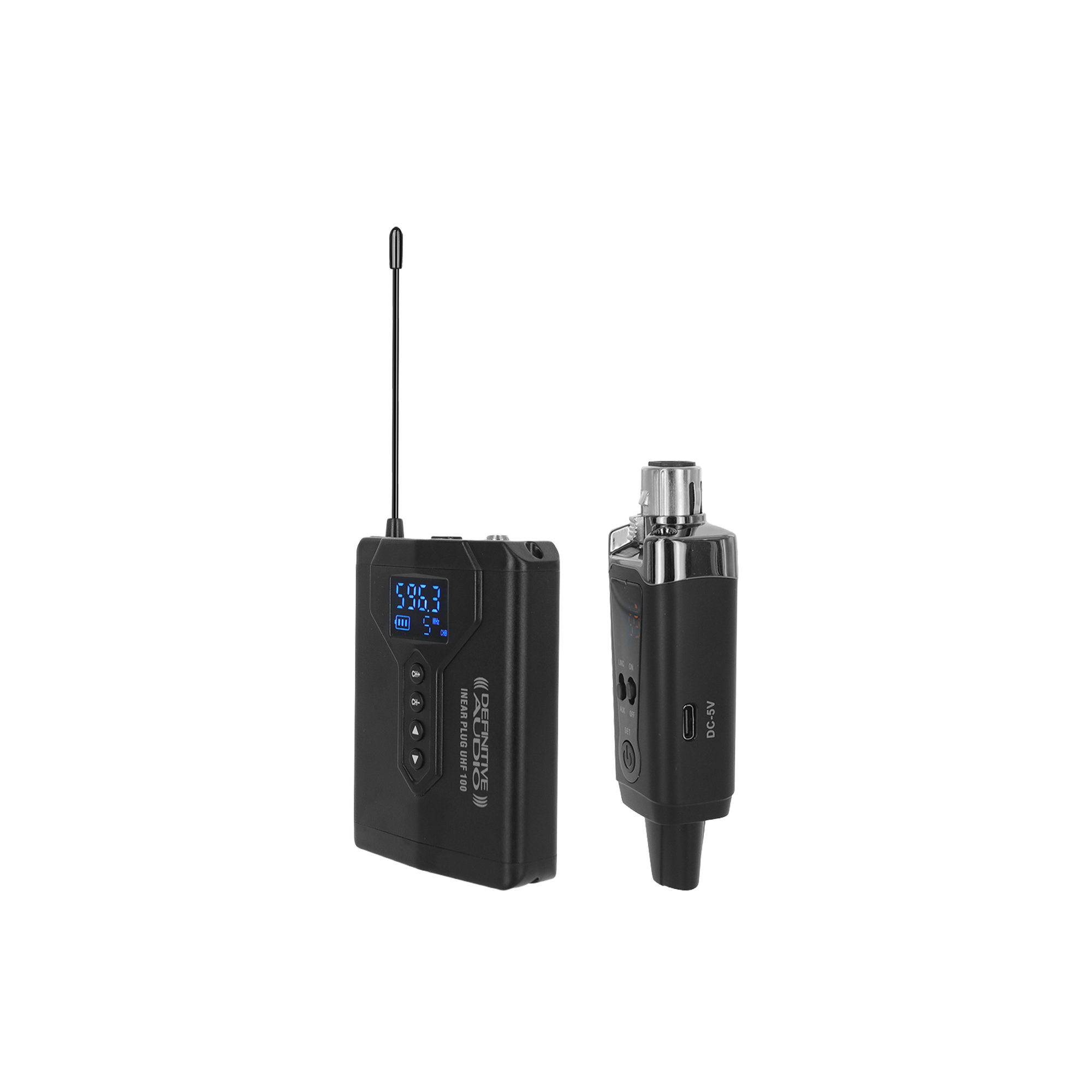

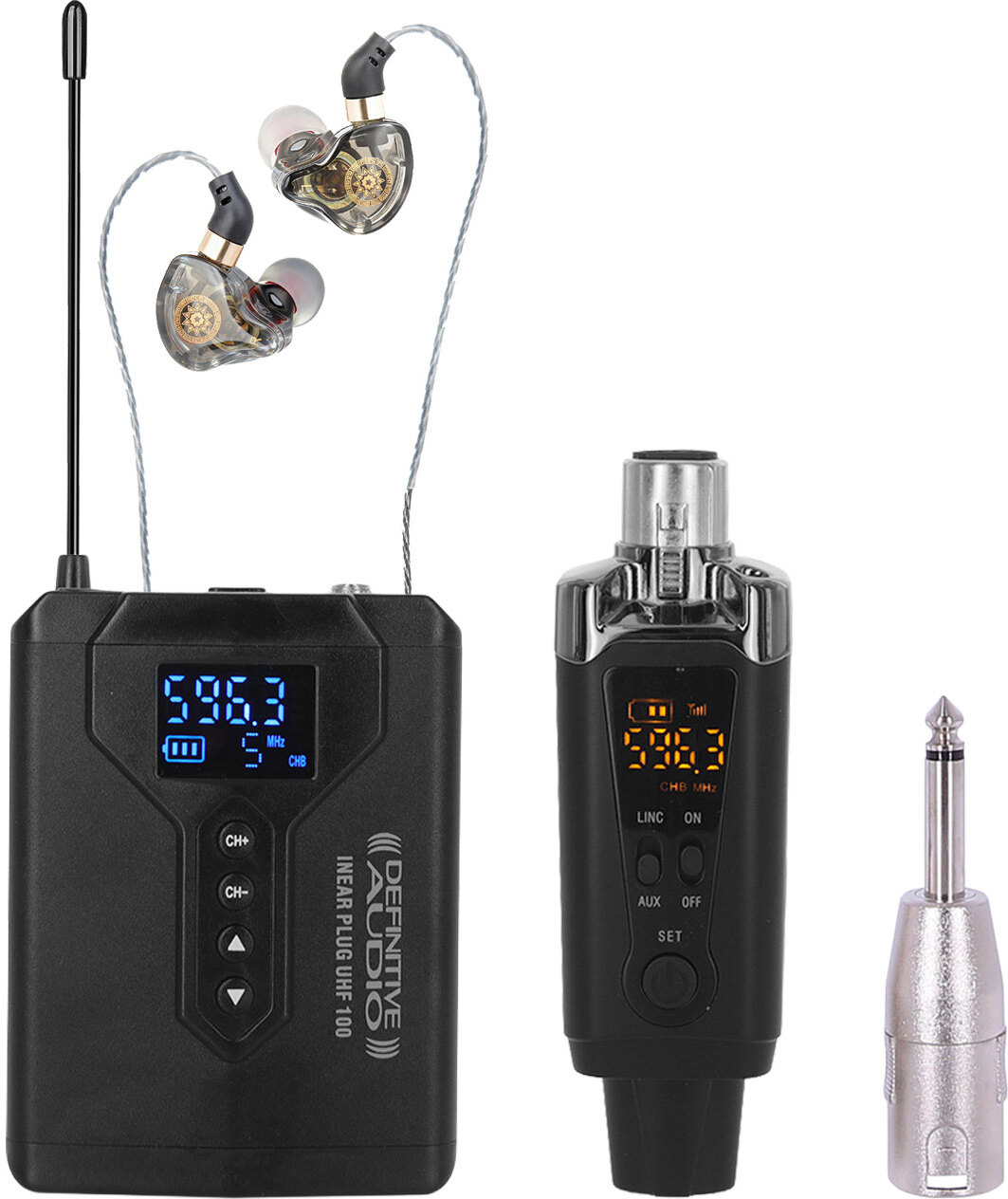

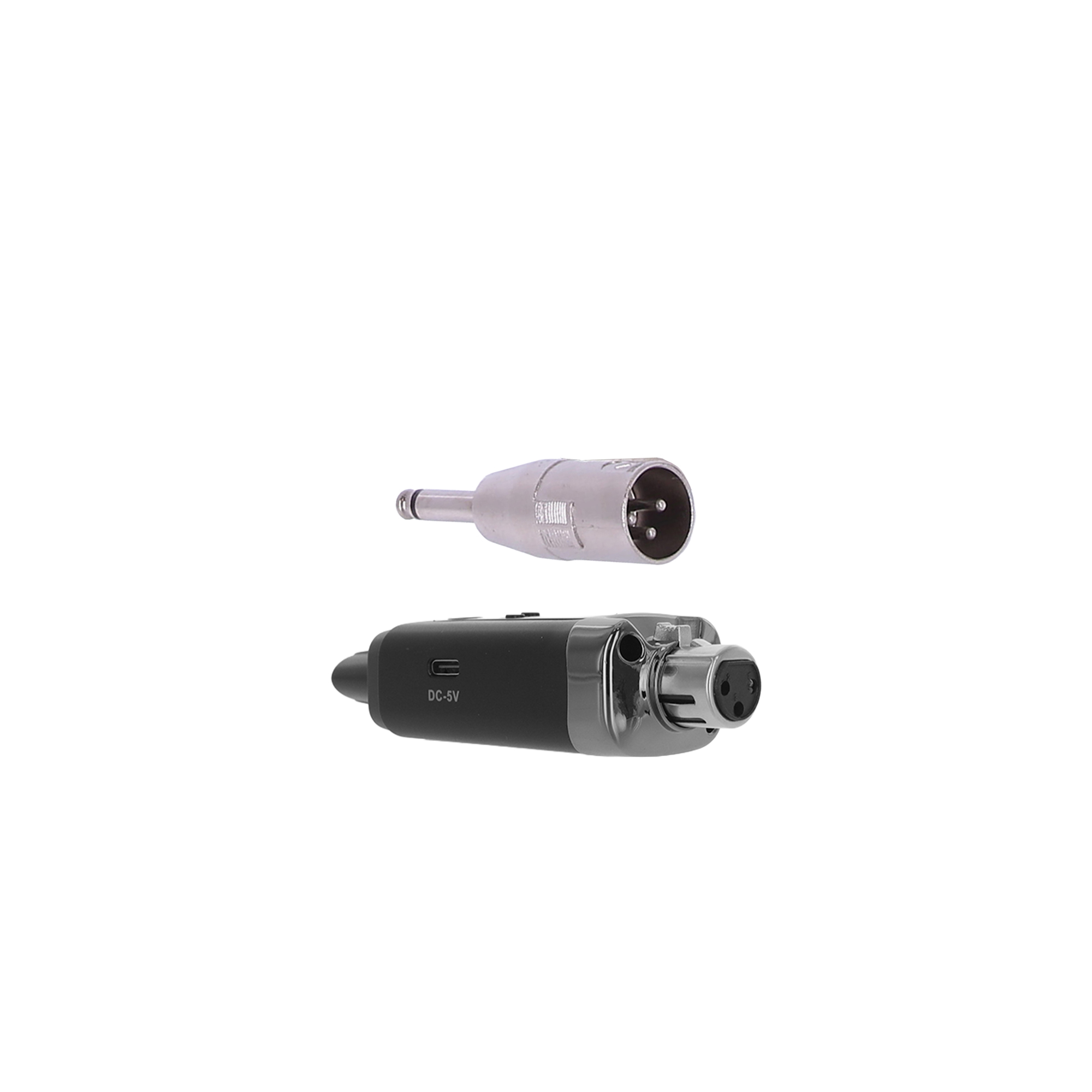

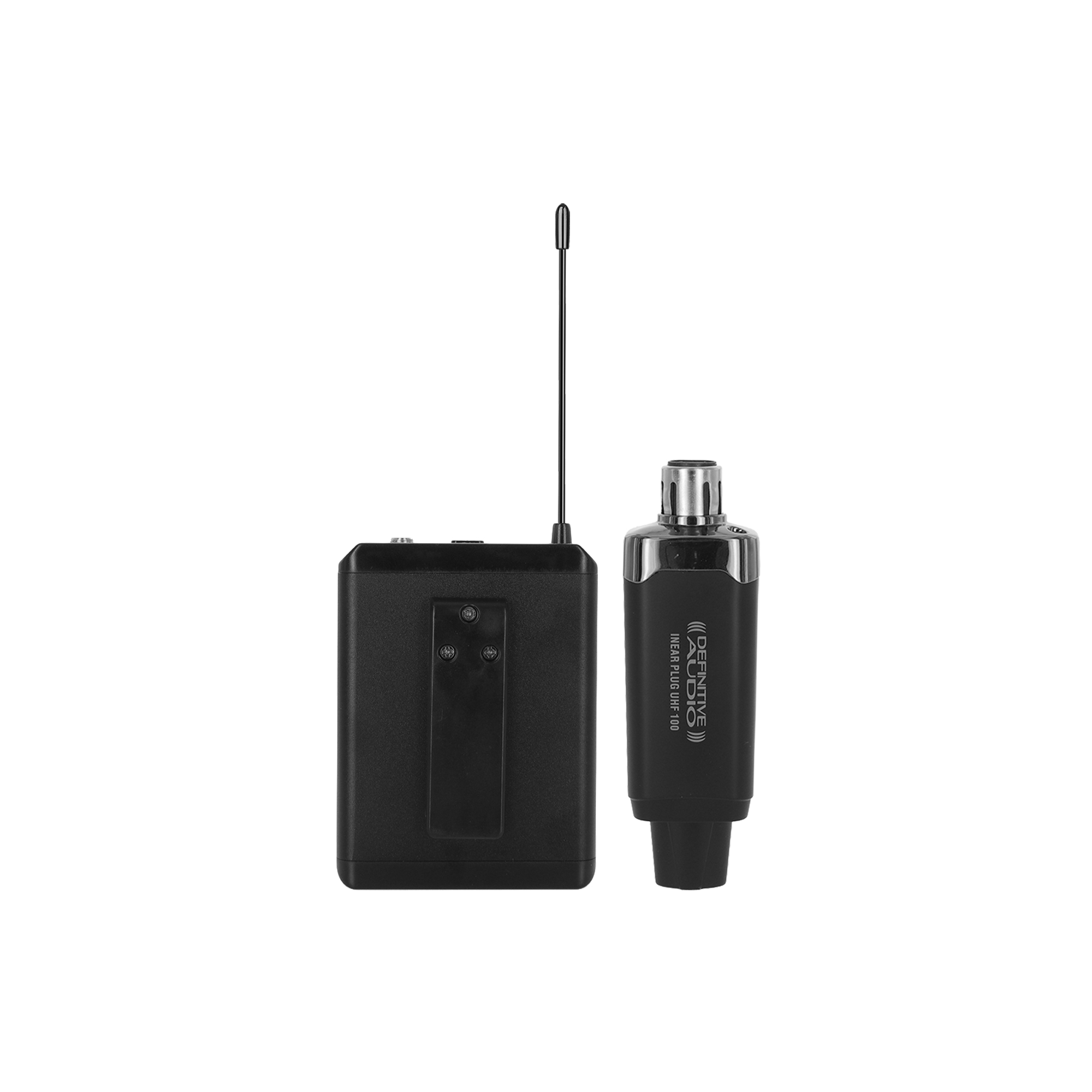

The INEAR PLUG UHF 100 is a compact wireless in-ear monitoring system consisting of an audio transmitter and a rechargeable belt-mounted receiver. This device allows musicians, singers, or technicians to listen to their audio monitor in real time, with complete freedom of movement.
A high-quality wireless connection for total freedom
Operating in the UHF band at frequencies ranging from 500 to 699 MHz, the INEAR PLUG UHF 100 system offers a stable and reliable connection. Here are some of its technical specifications:
- 20 preset frequencies with automatic pairing for simplified setup.
- Maximum range of 50 meters, allowing for great freedom of movement on stage.
- Battery life of approximately 6 to 8 hours for extended, uninterrupted performances.
Lire la suite
Technical sheet
- Monitoring System
- Type: Wireless In-Ear UHF
- Consists of an audio transmitter and a compact belt-mounted receiver
- Transmission: Stable UHF
- Frequency range: 500–699 MHz
- Number of adjustable channels: 20 preset frequencies
- Audio Performance
- Frequency response: 75 Hz – 18 kHz
- Signal-to-noise ratio: > 98 dB
- Total harmonic distortion: < 1% @ 1 kHz
- RF carrier power: 25 mW
- Automatic Pairing
- Range and Power
- Operating range: up to 50 m
- Modulation mode: DQPSK
- Battery life: 6 to 8 hours
- Transmitter battery: 3.7 V / 1000 mAh
- Receiver battery: 800 mAh
- Built-in rechargeable lithium battery

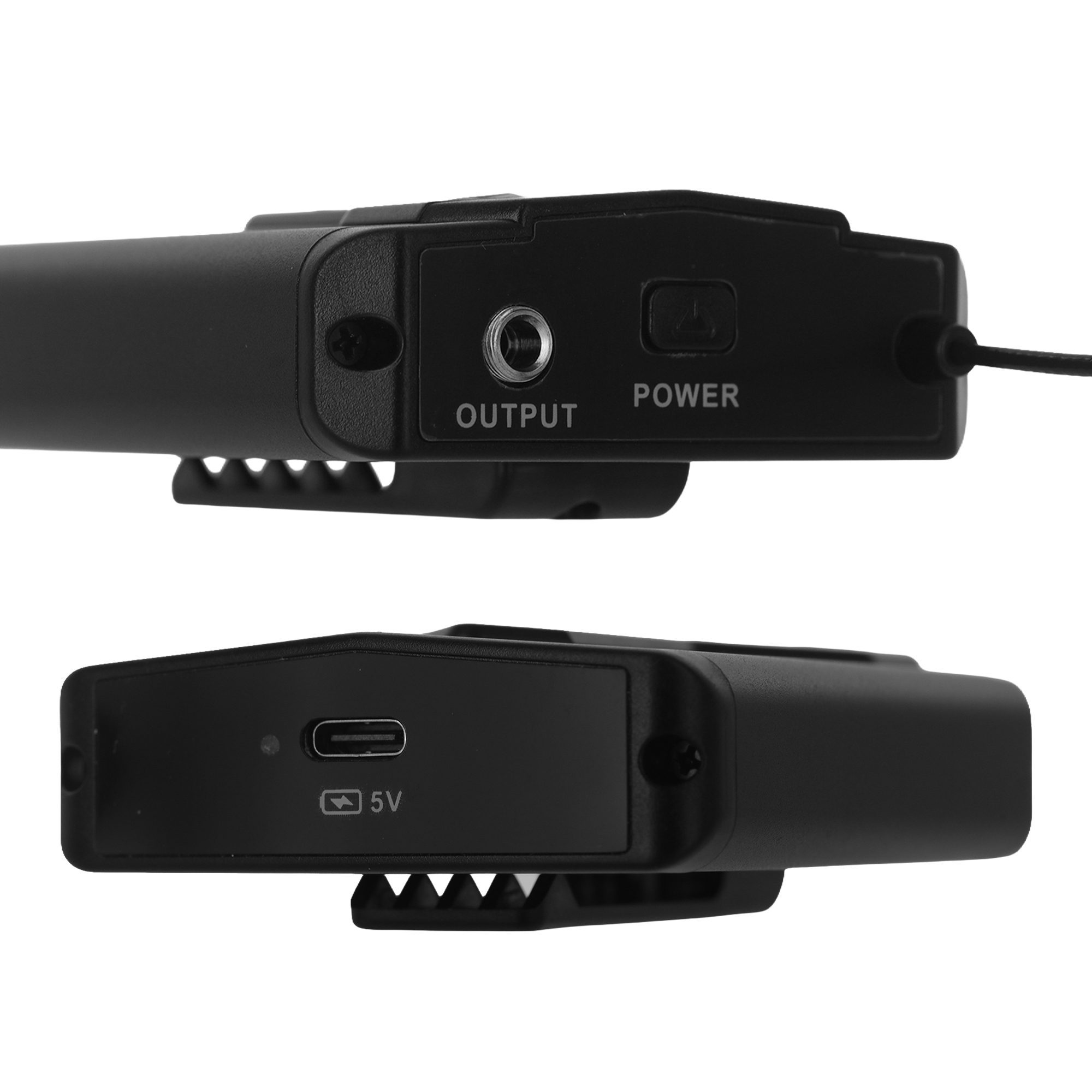

- Charging port: DC 5V
- Dimensions
- Compact belt-mounted receiver: 87 × 62 × 21 mm
- Headphone/earphone output
