Yamaha MG06

  • Read reviews (4)
  • Related accessories
  • Similar products
  • Yamaha Mg06 - Analog mixing desk - Main picture
  • Yamaha Mg06 - Analog mixing desk - Variation 1
  • Yamaha Mg06 - Analog mixing desk - Variation 2
  • Yamaha Mg06 - Analog mixing desk - Variation 3
180.00 €
132,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 34649
In stock
deliverable in 24 hours
Stock in store
See availability. Store
Star's Music Bordeaux
Star's Music Bruxelles
Star's Music Lyon
Star's Music Paris
Star's Music Toulouse
Other version(s) or associated product(s)

The brand Yamaha

Learn more about the Yamaha brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Analog mixing desk

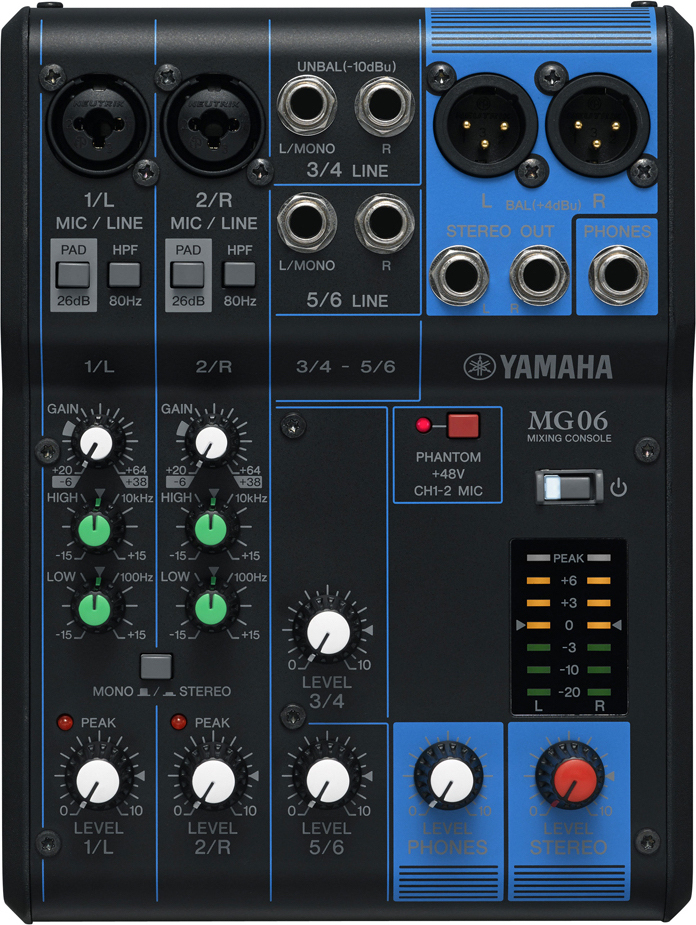

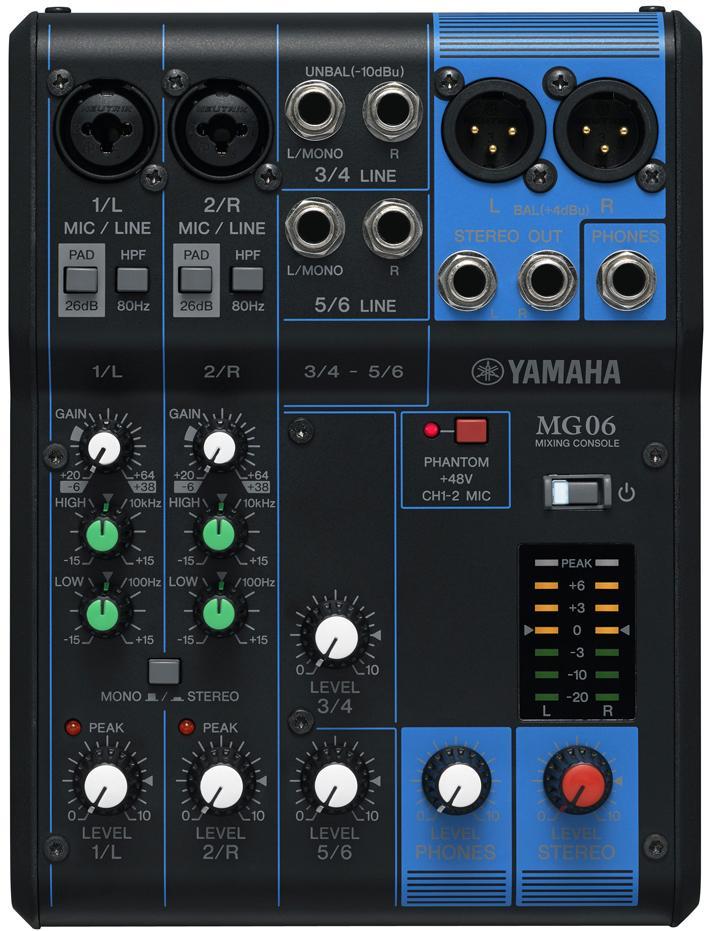

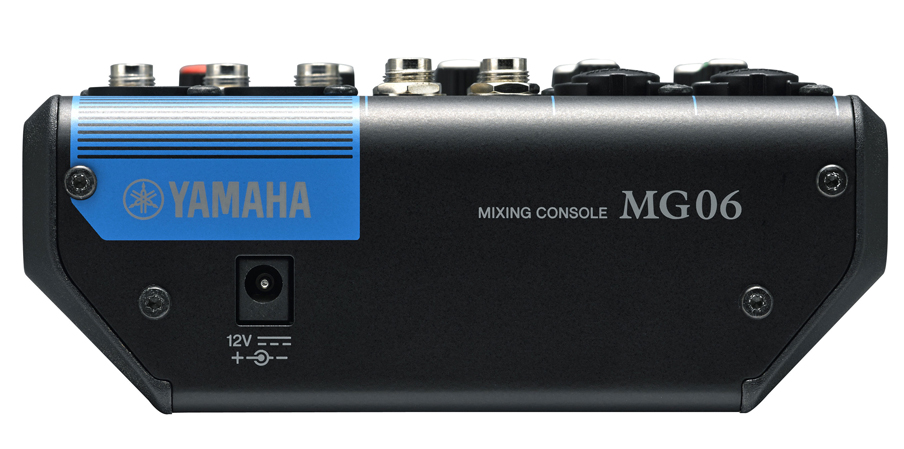

The Yamaha MG06 is a 6-channel mixing console, with high-quality D-PRE preamp,
two XLR/Jack combo inputs with 2-band tone control and including a pad switch as well as a high pass filter of 80 Hz.


Its great sound, 6 channels and preamps allow for a warmth of sound, deep bass and natural highs.
The two stereo inputs can function as mono inputs as well.

This product is perfect for entertainers and home recorders and you can take it anywhere you want.
Lire la suite

Technical sheet

  • Mixer connectivity Without computer connection
  • Number of channel mixing desk 6 and 8 channels
  • I/O
  • Phantom power : +48 V
  • Input Channels
  • Mono[MIC/LINE] : 2
  • Stereo[LINE] : 2
  • Output Channels
  • STEREO OUT : 2
  • PHONES : 1
  • Bus
  • Stereo: 1
  • Input Channel
  • Function
  • PAD : 26 dB (Mono)
  • HPF : 80 Hz, 12 dB/oct (Mono)
  • EQ HIGH : (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
  • EQ LOW : (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
  • PEAK LED : LED turns on when post EQ signal reaches 3 dB below clipping
  • Level Meter : 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
  • General specifications
  • Total harmonic distortion : 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
  • Frequency response : +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
  • Hum & noise level
  • Equivalent input noise : -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
  • Residual output noise : -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
  • Crosstalk : -88 dB
  • Power requirements : PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
  • Power consumption : 12 W
  • Dimensions
  • W : 149 mm (5.9")
  • H : 62 mm (2.4")
  • D : 202 mm (7.9")
  • Net weight : 0.9 kg (1.98 lbs.)
  • Accessories
  • Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
  • Others :
  • Operating
More specifications
Fewer specifications

User reviews : 4 notice

4,3 5
