Multiple channels power amplifier

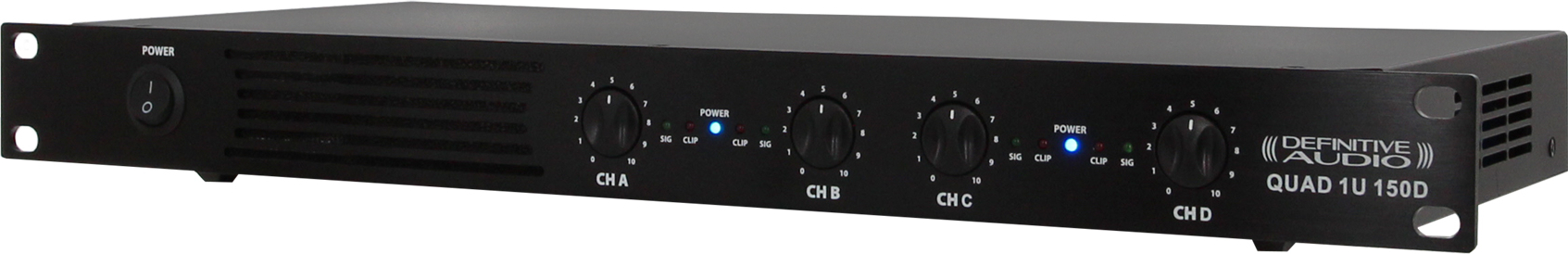

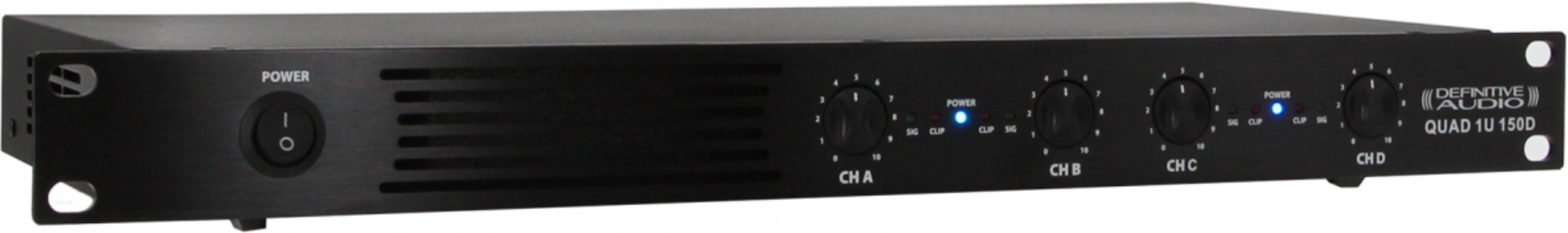

The Quad 1u 150D is a 1U 4x150W RMS amplifier under 4 ohms.
The QUAD 1U 150D is a 4-channel amplifier specifically designed for use in restaurants, bars, meeting rooms, and any space where sound diffusion is required. They are built around a Class D power supply circuit, allowing very high performance with very low weight. The height is 1U and in 19" rack format, they will fit in a flight case or a control room very easily and will occupy a very small space.
The QUAD 1U 150D is a 4-channel amplifier specifically designed for use in restaurants, bars, meeting rooms, and any space where sound diffusion is required. They are built around a Class D power supply circuit, allowing very high performance with very low weight. The height is 1U and in 19" rack format, they will fit in a flight case or a control room very easily and will occupy a very small space.
Lire la suite
Technical sheet
- Class D type amplifier
- Continuous power: 4 ohms: 4 x 150W and 8 ohms: 4 x 90W
- Bridge mode: 8 ohms: 2 x 300W
- Damping factor: 260
- Input impedance: 10 Kohms unbalanced, 20 Kohms balanced
- Frequency response: 20 Hz-20 KHz +/-0.5dB
- THD + N: 0.05%.
- Distortion (SMPTE-IM): <0.5%.
- S/N RATIO: >100 dB
- Input connectors : XLR and Jack combo

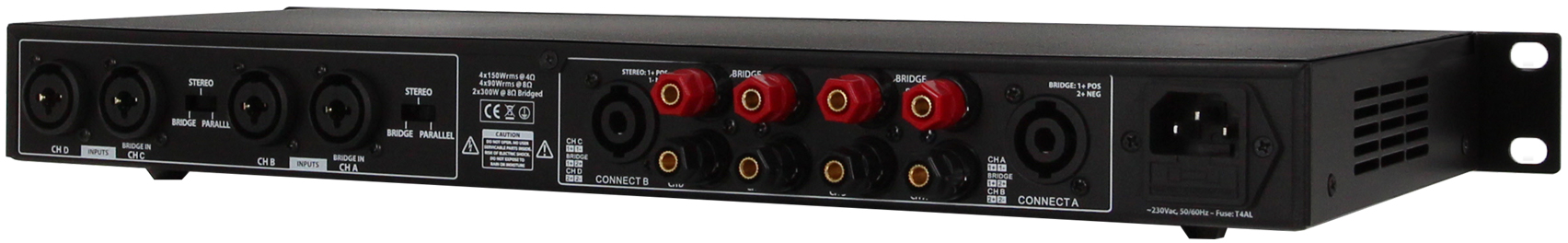

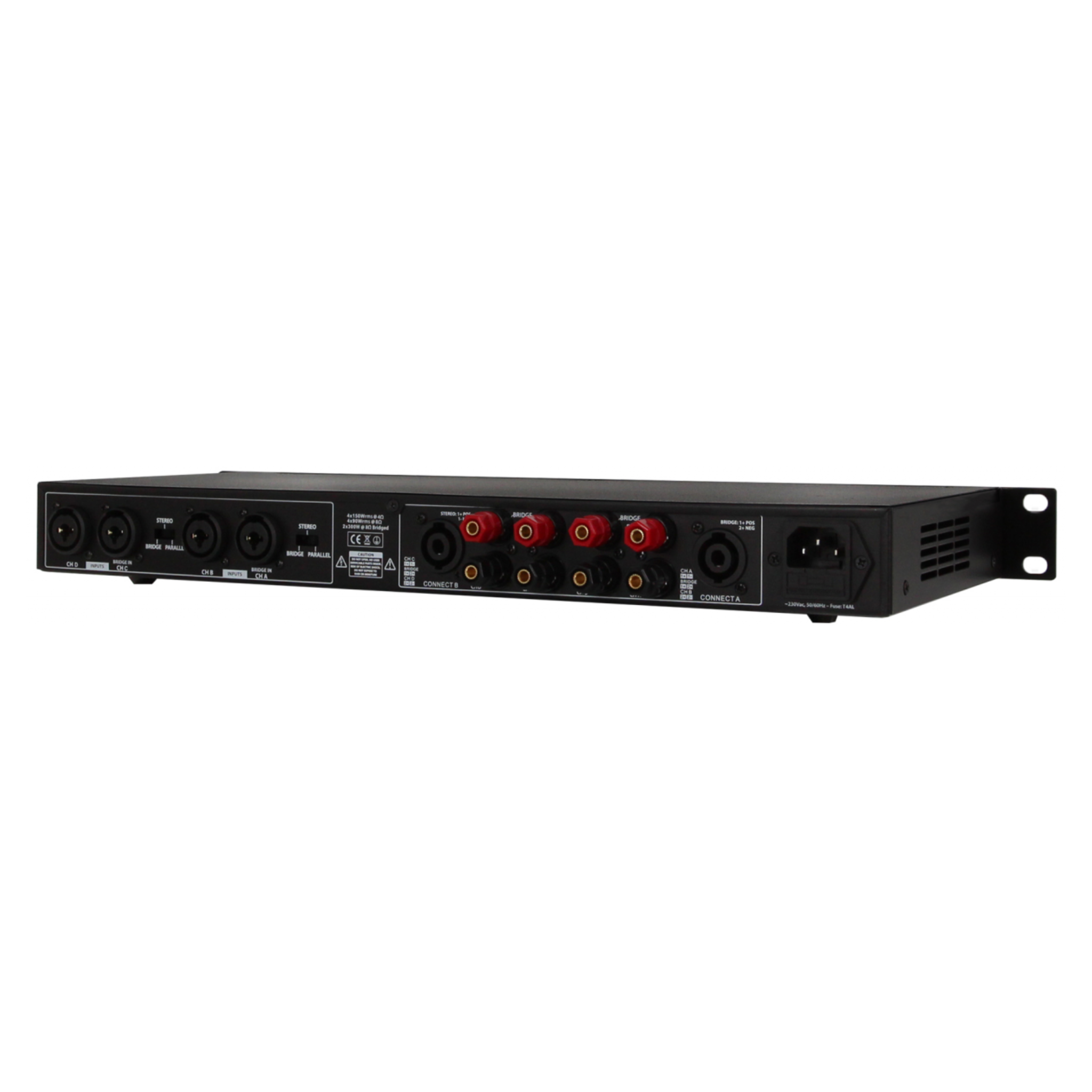

- Output connectors: OUTPUT Terminals and Speakon
- Front control: Power, volume, bridge, parallel and stereo switches
- Rear control: Mode switch
- Power supply: AC 230V, 50-60Hz
- Dimensions: 482 x 230 x 44 mm
- Weight : 2,60 Kg
