Yamaha MG10

Analog mixing desk

(3 avis client)

202.80 € 155.00 €
+
-
Les commandes en ligne et la livraison à domicile restent disponibles pendant la période du confinement :)
IN STOCK - delivery today
  • Need help +33 1 81 930 900

  • Fast delivery

  • Guarantee : 3-years warranty

    days refund guarantee : within 30 days

Share

Description

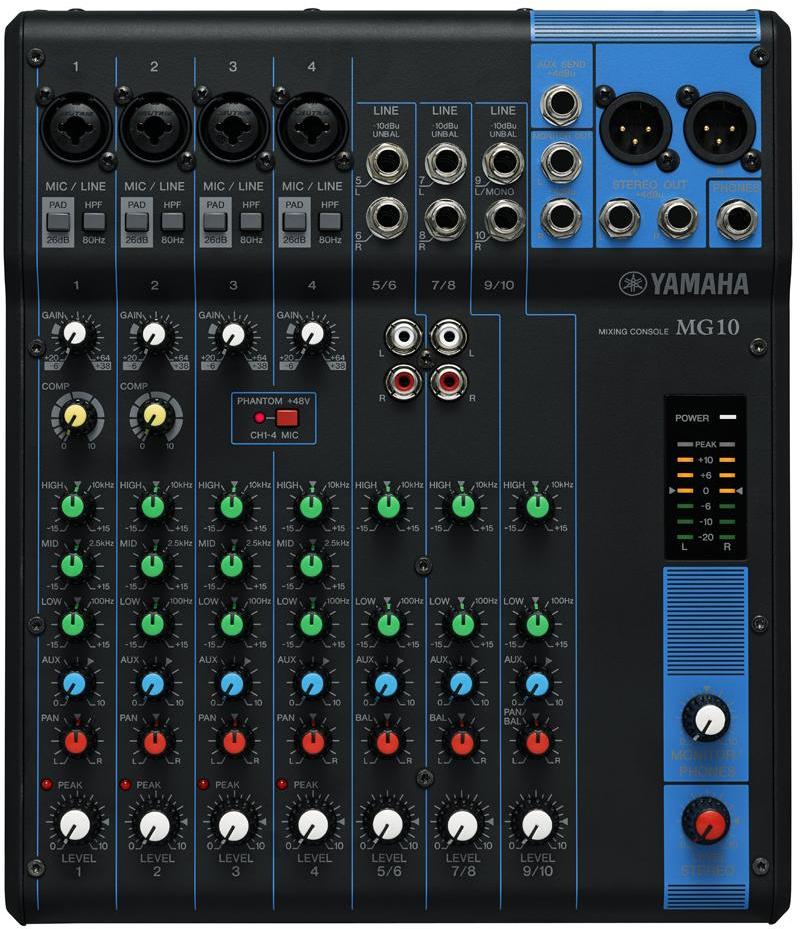

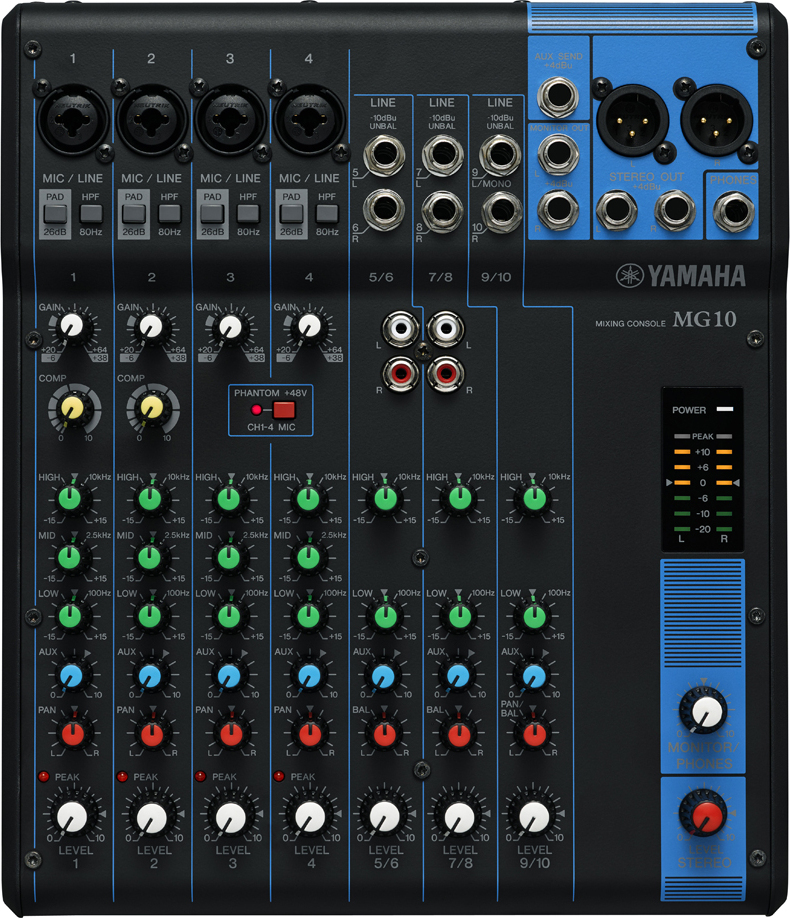

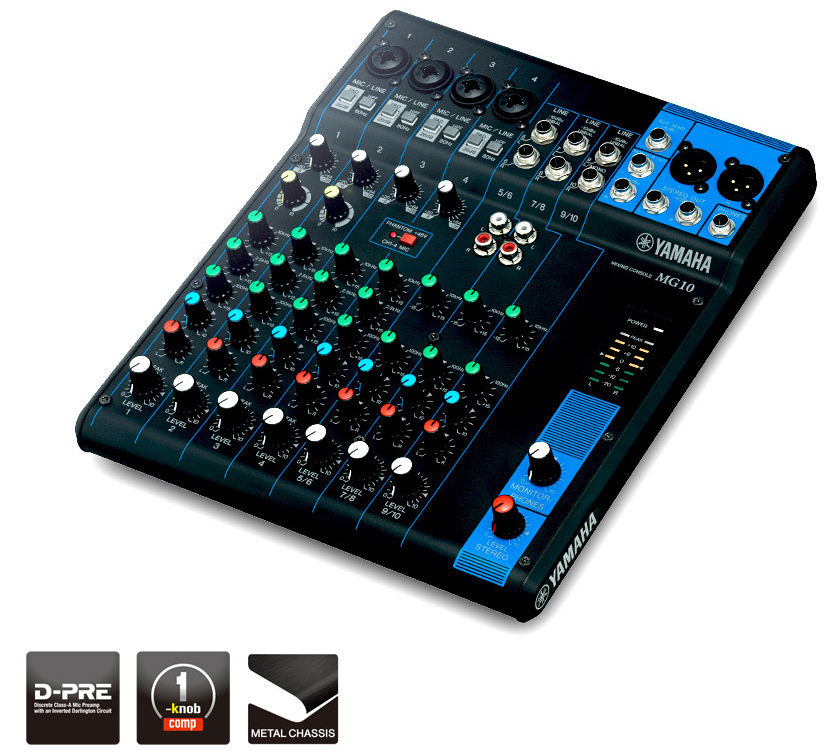

Here comes the third generation of MG series with the Yamaha MG10 mixing console, with 10 channels and 4 Mic inputs, this table is most versatile for its size.


Intuitive and easy-to-use, the solid design and capacities of those tables allows you to deliver top-notch performance.

With its high quality D-PRE preamp, its outstanding durability, and compressors coupled to the first channels for a better sound dynamic, this mixing console will satisfy every musician.

Characteristics

Ref : 38679
- Mixer connectivity : without computer connection
- Number of channel mixing desk : 6 and 8 channels
I/O
- Phantom power : +48 V
Input Channels
- Mono[MIC/LINE] : 4
- Stereo[LINE] : 3
Output Channels
- STEREO OUT : 2
- MONITOR OUT : 1
- PHONES : 1
- AUX SEND : 1

Bus
- Stereo: 1, AUX[FX]: 1

Input Channel Function
- PAD 26 dB (Mono)
- HPF 80 Hz, 12 dB/oct (Mono)
- COMP 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
- EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
- EQ MID Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
- EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
- PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
- Level Meter 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
General specifications
- Total harmonic distortion 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
- Frequency response +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level
- Equivalent input noise : -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
- Residual output noise : -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
- Crosstalk : -83 dB

- Power requirements : PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
- Power consumption : 22.9 W

Dimensions
- W : 244 mm (9.6")
- H : 71 mm (2.8")
- D : 294 mm (11.6")

- Net weight : 1.9 kg (4.19 lbs.)

Accessories :
- Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand
Adaptor BMS-10A

Others :
- Operating Temperature: 0 to +40?C
