Definitive audio TM 22 BU-DSP + Micro Xd410 X-tone

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Definitive Audio Tm 22 Bu-dsp + Micro Xd410 X-tone - Analog mixing desk - Main picture
  • Definitive Audio Tm 22 Bu-dsp + Micro Xd410 X-tone - Analog mixing desk - Variation 1
  • Ref : 119560
159,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
In stock
deliverable in 24 hours
Stock in store
Not available in store

The brand Definitive audio

Learn more about the Definitive audio brand and discover the entire catalog.
Logo Definitive audio

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Analog mixing desk

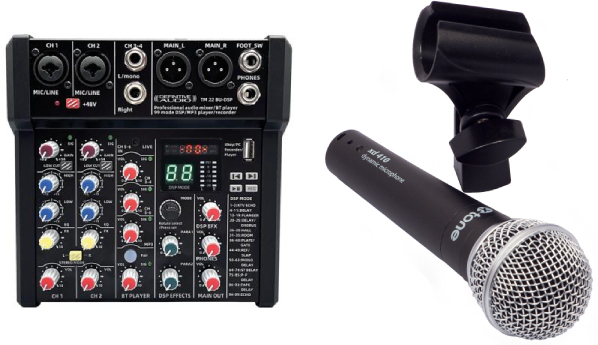

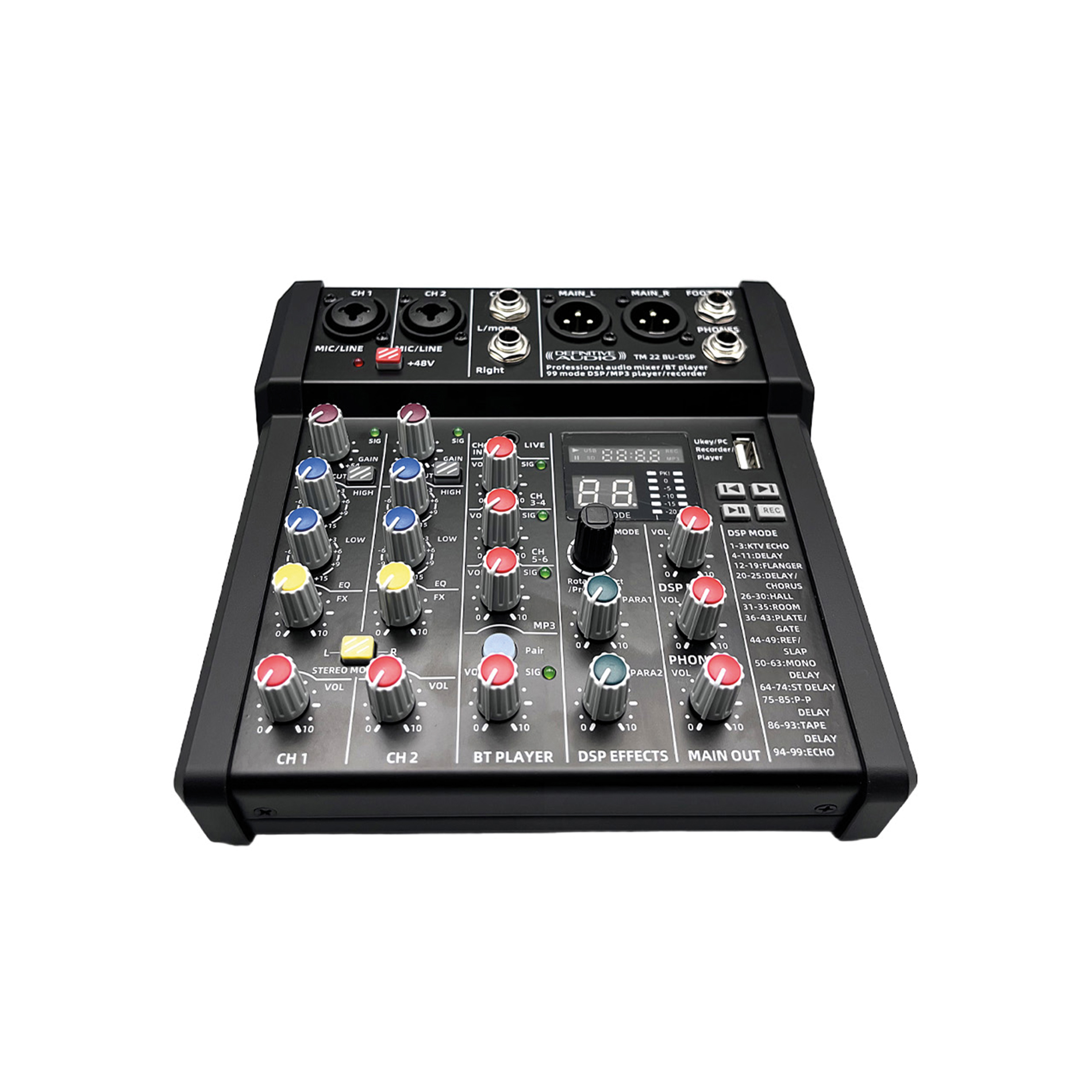

This pack includes 1 TM22 BU-dsp Defintive audio mixer + 1 X-tone XD410 vocal microphone.

Ideal configuration for beginners.
Lire la suite

Technical sheet

  • Mixer connectivity Without computer connection
  • Number of channel mixing desk 6 and 8 channels
  • Number of channels 4 channels
  • 5-channel mixer
  • Inputs: 2 XLR/Jack combos, 2 mono 6.35mm jacks, 1 AUX 3.5mm jack
  • Integrated Bluetooth receiver
  • USB MP3/WAV/APE/FLAC player/recorder
  • DSP: 99 effects 24bit/48KHz
  • Outputs: 2 XLR male and 1 x 6.35mm headphone
  • Eq 2 bands 80Hz and 12KHz +/- 15dB
  • +48V with LED indicator
  • Low Cut button
  • Led saturation indicator
  • Stereo channel
  • FOOT SW input for mute pedal connection
  • Adjustable sensitivity
  • Led saturation indicator
  • General level indicator: 2 x 6 LEDs (4 green, 2 yellow and 2 red)
  • Max output level: 3 Vrms
  • Frequency response +/- 0.5 dB: 20 - 20000Hz
  • Dynamic range: 102 dB
  • THD: <0.05
  • Power supply : DC 5V, 2A
  • Power consumption: Max 10W
  • Dimensions: 180 x 182 x 65 mm
  • Weight : 1,13 Kg
