Analog mixing desk

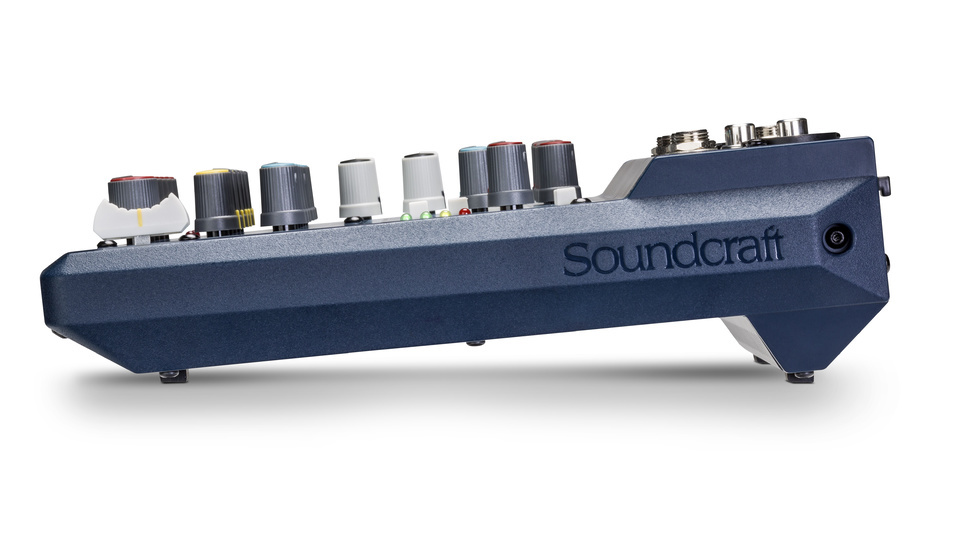

The Soundcraft NotePad-8FX is a console with USB and Lexicon effects, 6 inputs, 2 outputs.
The Notepad series features premium mic preamps, XLR / jack connections and a heavy-duty metal chassis.
This console incorporates a headphone level control, a master level with LED level, and each microphone channel has 3 EQ controls.
The Notepad series includes several models, all very compact, designed to be carried everywhere.
This model also incorporates a USB audio interface, allowing you to record your signal directly into an audio-digital sequencer, as well as an embedded Lexicon effect section.
The Notepad series features premium mic preamps, XLR / jack connections and a heavy-duty metal chassis.
This console incorporates a headphone level control, a master level with LED level, and each microphone channel has 3 EQ controls.
The Notepad series includes several models, all very compact, designed to be carried everywhere.
This model also incorporates a USB audio interface, allowing you to record your signal directly into an audio-digital sequencer, as well as an embedded Lexicon effect section.
Lire la suite
Technical sheet
- Mixer connectivity USB
- Number of channel mixing desk 6 and 8 channels
- Number of channels 8 channels
- Input (Mic) - Mic/Line Combo Inputs: 2
- Input (Mic) - Gain: 2
- Input (Mic) - Inputs with Hi-Z: 1
- Input (Mic) - Peak Light: 2
- Input (Mic) - EQ High: 2
- Input (Mic) - EQ Mid: 2
- Input (Mic) - EQ Low :2
- Input (Mic) - Pan: 2
- Input (Mic) - Level: 2
- Input (Line) - 1/4" Stereo Line Inputs w/Trim: 2
- Input (Line) - RCA Stereo Line Inputs: 1
- Input (Line) - 1/4" Stereo Line External FX Return: n/a
- Input (Line) - Aux/FX: 3
- Input (Line) - Balance: 3
- Input (USB) - USB Return: 2, summed with RCA, into channel 7&8
- Output - Master Stereo Out: 1
- Output - Monitor Stereo Out: 1
- Output - Aux Out: 1
- Lexicon Processing - Reverb/Chorus/Delay: 1
- Lexicon Processing - Tap Tempo: 1
- Output Control - Master Level Fader: 1
- Output Control - Monitor/Phones Level: 1
- Output Control - Output Meters: 4x LED
