Analog mixing desk

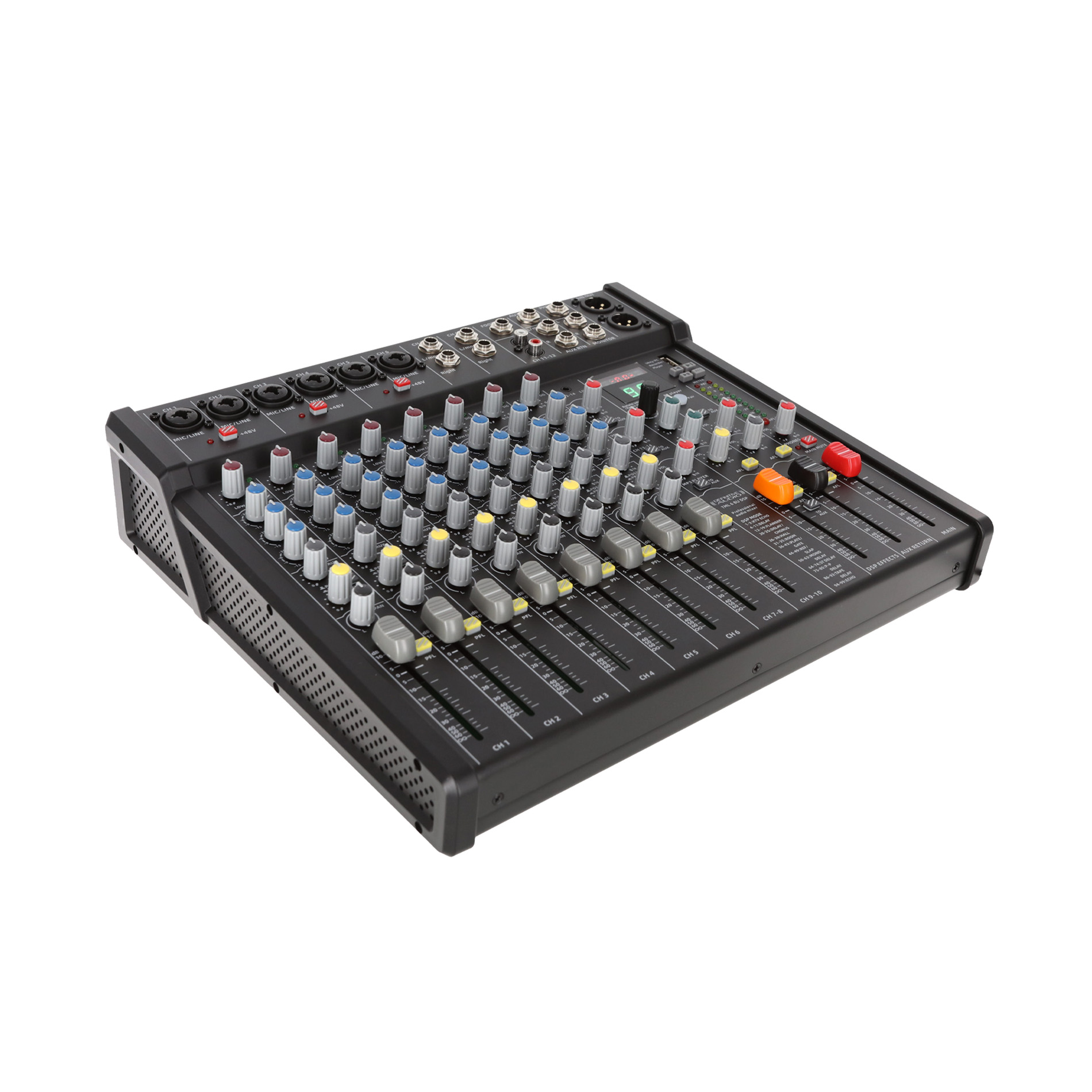

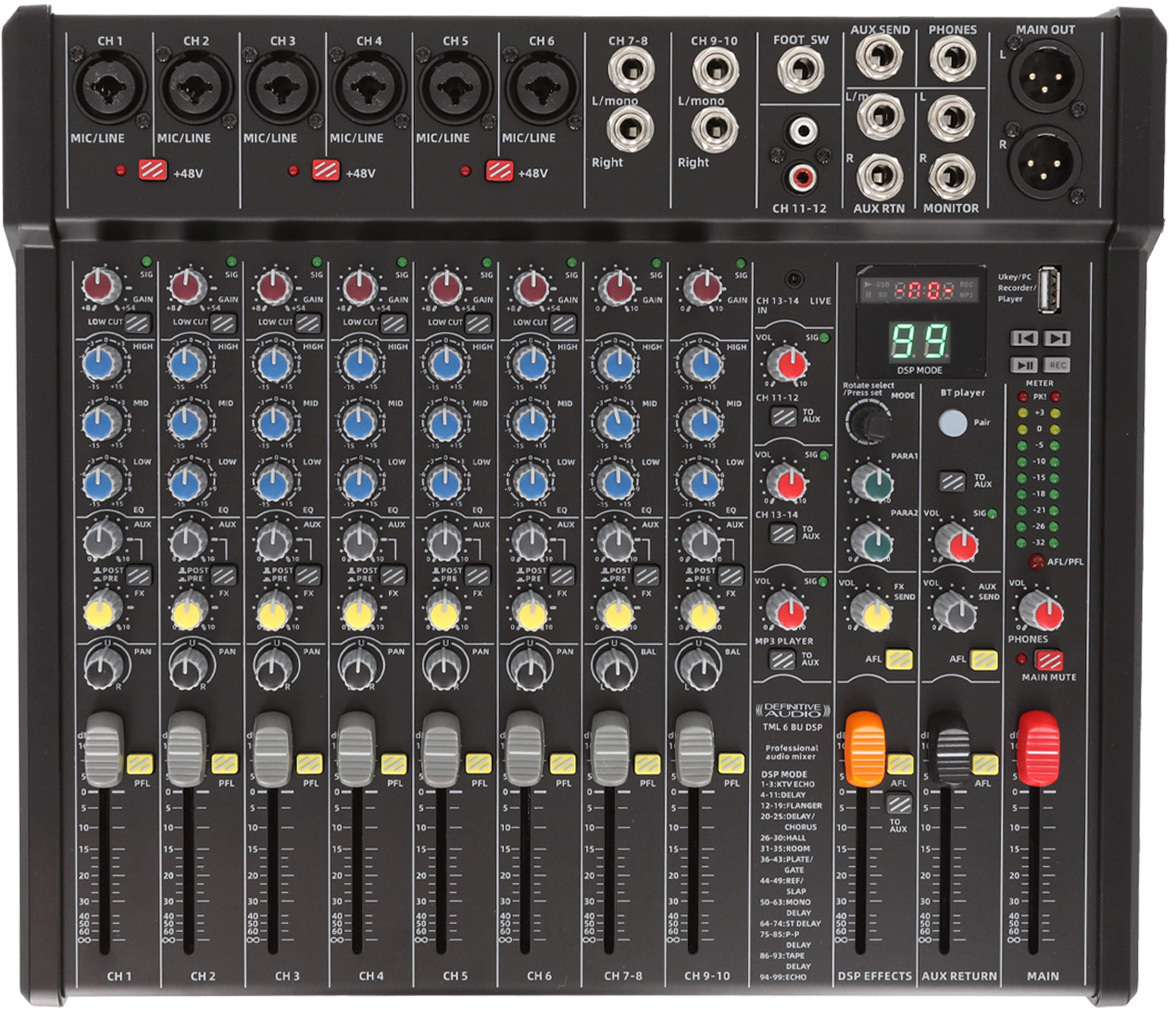

The TML 6 BU DSP is a 14-channel analog mixing console equipped with a 99-effects dsp and USB player/recorder, Bluetooth receiver and XLR balanced outputs.

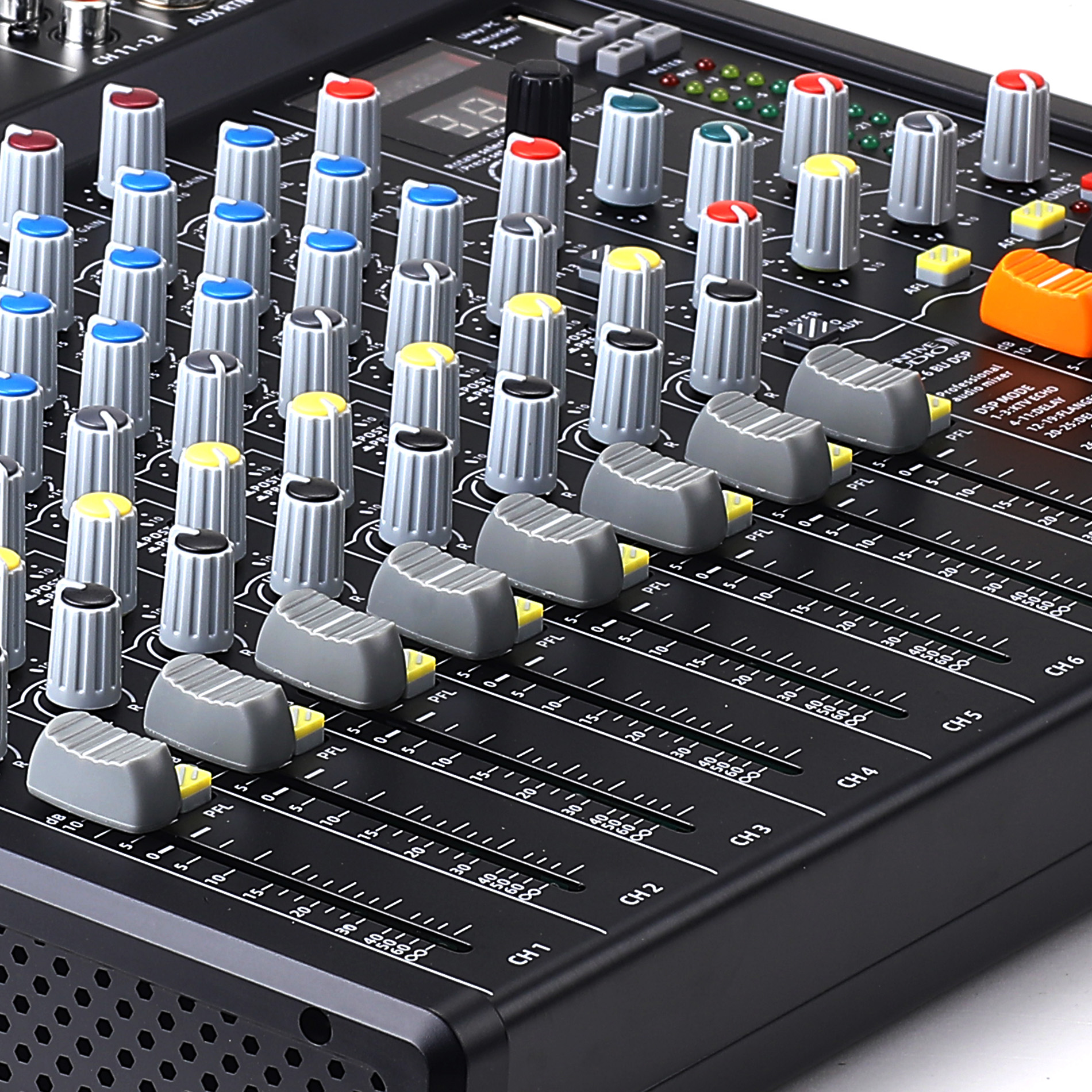

It features 10 XLR/Jack mic/line combo inputs with 60mm linear faders.

This mixing console is perfect for all kinds of studio and live applications.

Technical sheet

Mixer connectivity USB
Number of channel mixing desk 10 to 22 channels
Number of channels 14 channels

14-channel mixing console
- Configuration: 6 mono channels + 4 stereo channels (14 channels total)
Preamps
- High-quality mic preamps
Potentiometers & faders
- High-quality, high-precision, fully sealed potentiometers
- 60 mm linear faders
Combo inputs
- 10 XLR/Jack combo inputs with 60 mm linear faders
Mic input channels
- Gain control, signal indicator
- 3-band tones + low-cut filter
- L/R distribution buttons (audio-visual)
- Auxiliary send and effects send
- Monitor control
- 48 V phantom power on XLR
Stereo inputs
- 2 stereo inputs 6.35 mm jack
- 1 stereo input 3.5 mm jack
- 1 RCA stereo input
Stereo channel functions
- 2 stereo inputs with gain control, signal indicator, 3-band equalization, L/R distribution, auxiliary send and effects
- 2 additional stereo inputs with volume control, signal indicator and auxiliary send button
Bluetooth
- Bluetooth receiver: V5.1 + BR + EDR + BLE

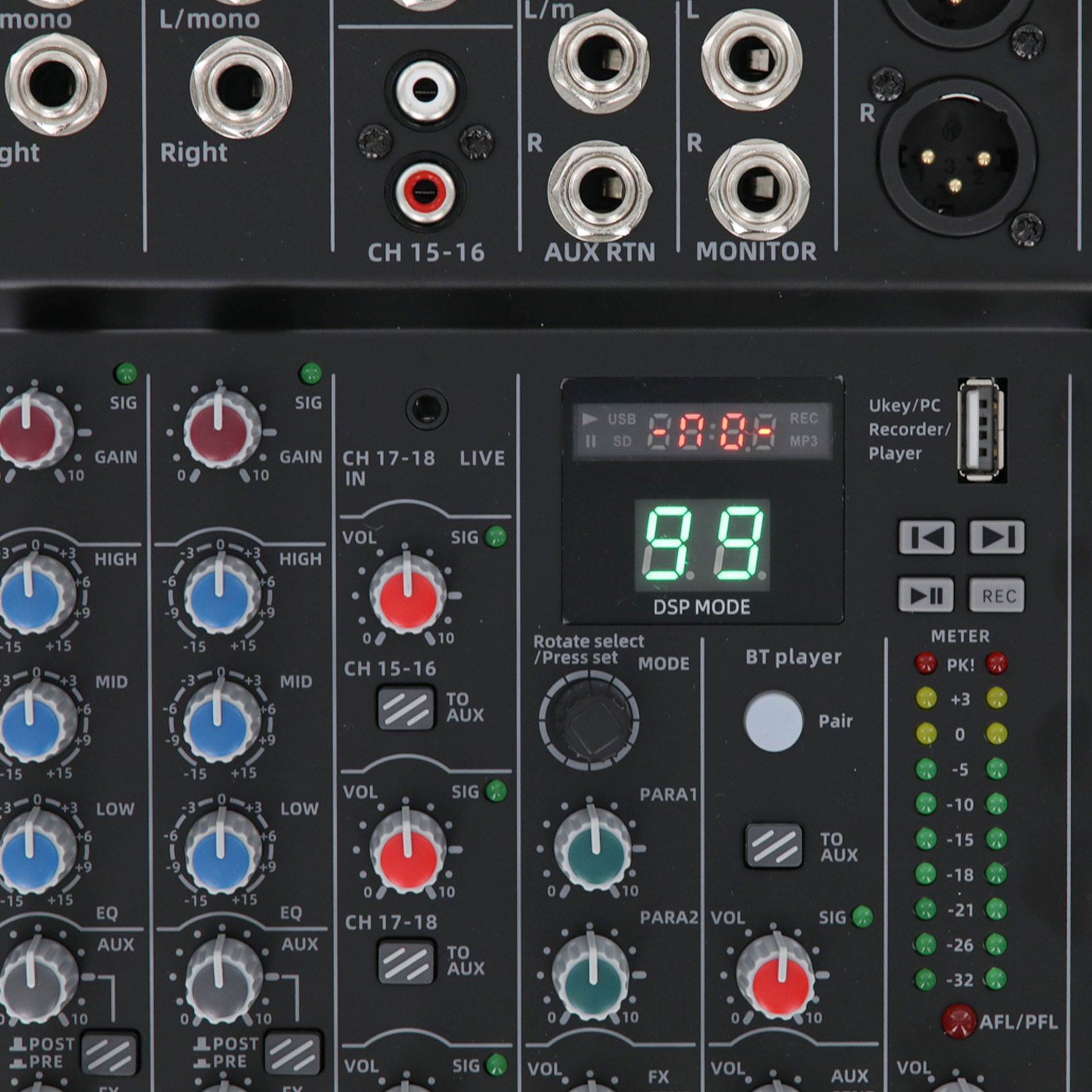

DSP & effects
- Effects processor with LED display
- 99 effects, 24 bit / 48 kHz

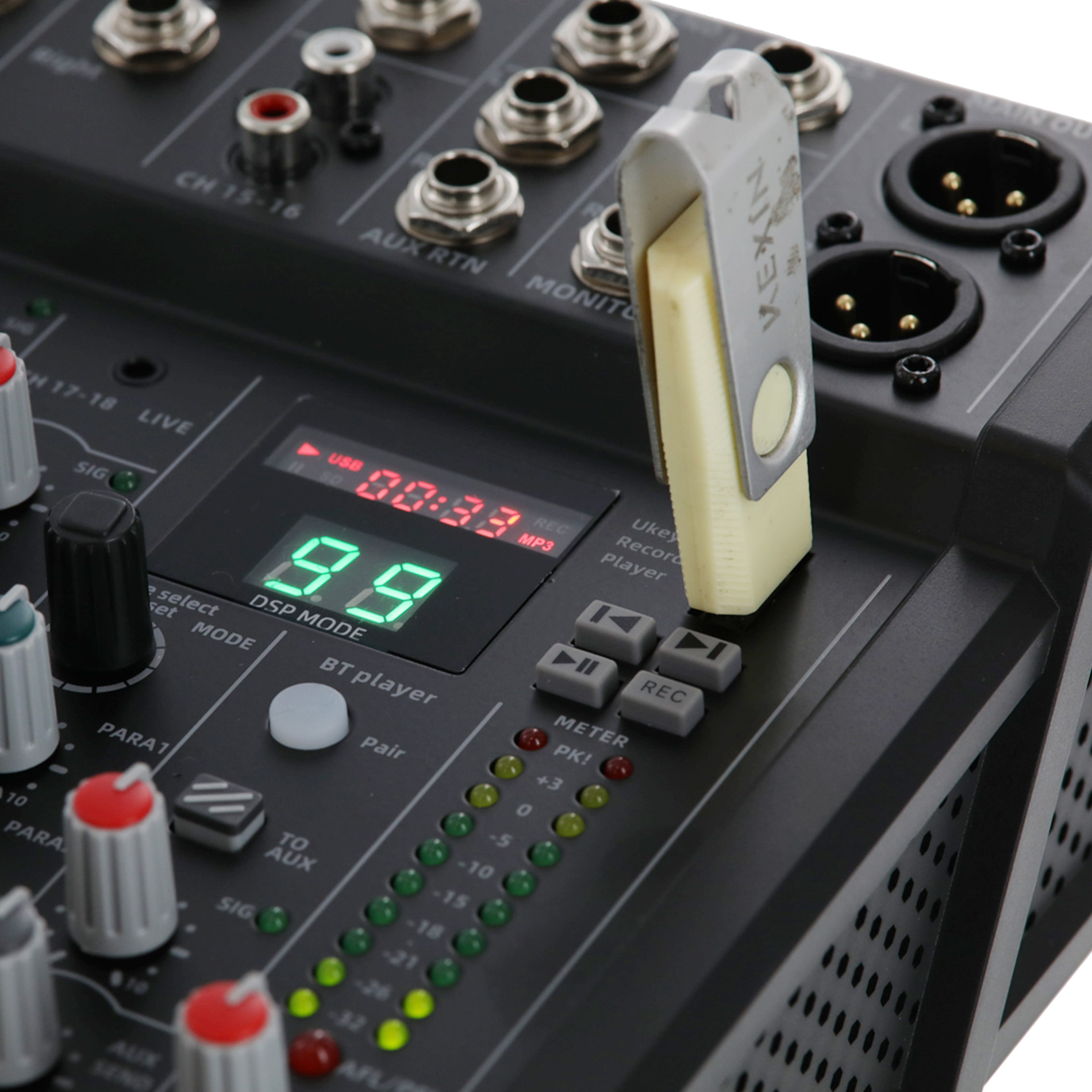

Player/recorder
- MP3 player/recorder with LED display
- Audio decoding: MP3 / WAV / APE / FLAC
- USB 1.1 audio interface
Max. input levels
- MIC +10 dBu
- LINE +22 dBu
Max. output levels
- XLR +22 dBu
- TRS +20 dBu
Meters & displays
- Main meters: 6 segments, from -20 dB to peak
- Channel meters: 1 LED signal indication
- Precise 3-color / 10-band LED level display
Frequency response
- 20 Hz - 22 kHz, ±1 dB
CMRR
- (PCM, 1 kHz): >75 dB
THD+N
- <0.05% (channel to be mixed)
Mono input (MIC/LINE)
- XLR balanced: pin 2 hot / pin 3 cold
- Impedance: 2 kΩ
- Sensitivity: -60 to +10 dBu
Balanced TRS line input
- TRS: hot tip / cold ring
- Impedance: 10 kΩ
- Sensitivity: -20 to +20 dBu
Channel equalization
- Treble: ±15 dB @ 12 kHz
- Midrange: ±15 dB @ 2.5 kHz
- Bass: ±15 dB @ 80 Hz
Stereo channel 1/2 (inputs)
- TRS unbalanced, hot tip
- Impedance: 20 kΩ
- Sensitivity: -20 to +20 dBu
Stereo channel 1/2 (EQ)
- Treble: ±15 dB @ 12 kHz
- Midrange: ±15 dB @ 2.5 kHz
- Bass: ±15 dB @ 80 Hz
Stereo channel 3/4
- Unbalanced 6.35 mm TRS inputs
Power supply
- DC 12 V / 2 A (24 W)
- Phantom power: +48 V
Dimensions
- W x H x D: 347 x 84 x 309 mm
Weight
- 4.35 kg
