Power acoustics MX16 USB V2

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Power Acoustics Mx16 Usb V2 - Analog mixing desk - Main picture
  • Power Acoustics Mx16 Usb V2 - Analog mixing desk - Variation 1
  • Power Acoustics Mx16 Usb V2 - Analog mixing desk - Variation 2
305.00 €
275,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 87390
In stock
deliverable in 24 hours
Stock in store
See availability. Store
Star's Music Bordeaux
Star's Music Lyon

The brand Power acoustics

Learn more about the Power acoustics brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Analog mixing desk

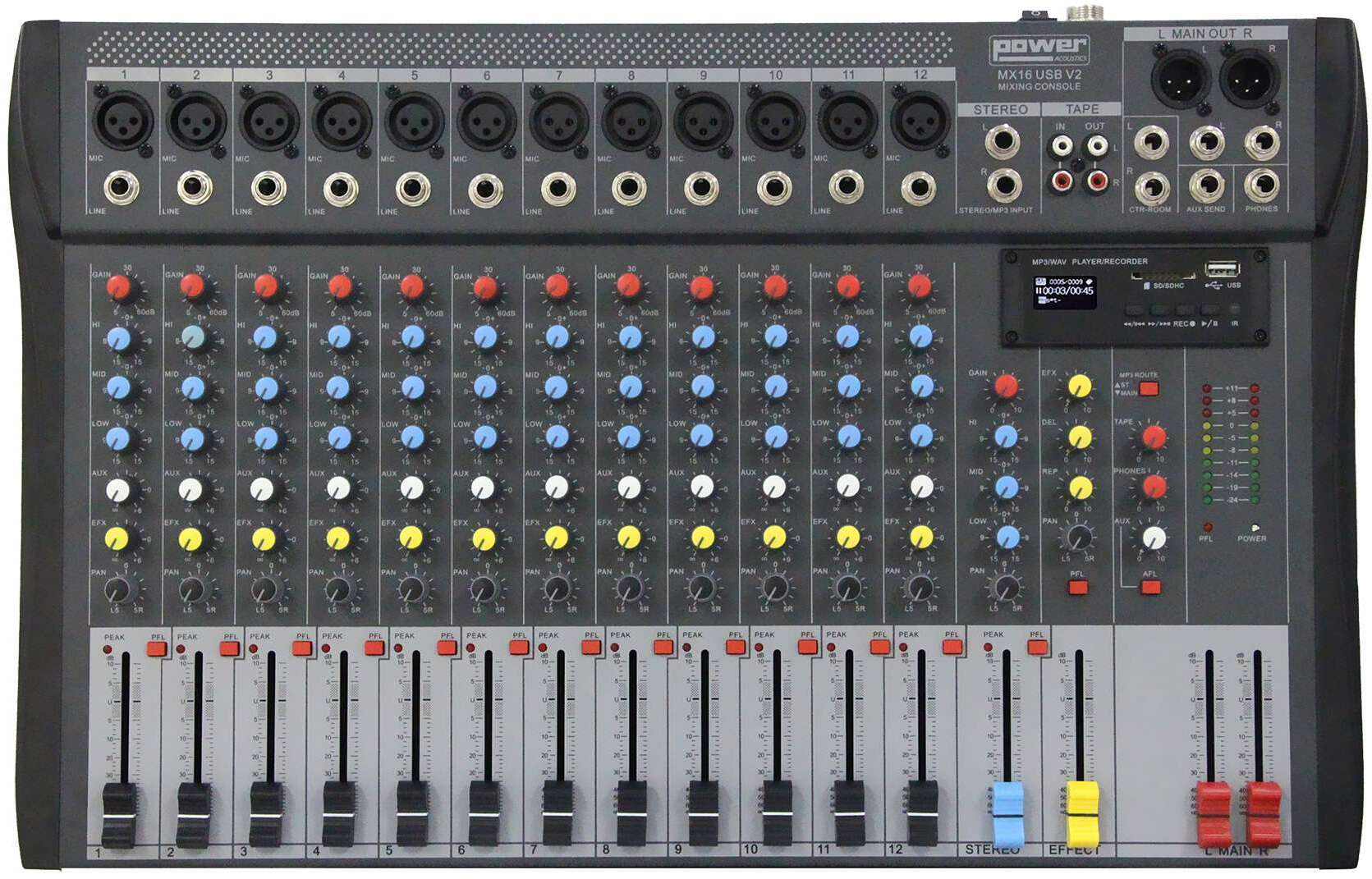

The Mx16 USb V2 is a 16 channel analog mixer from Power Acoustics.


It integrates 12 XLR microphone inputs or unbalanced lines, with high quality components.

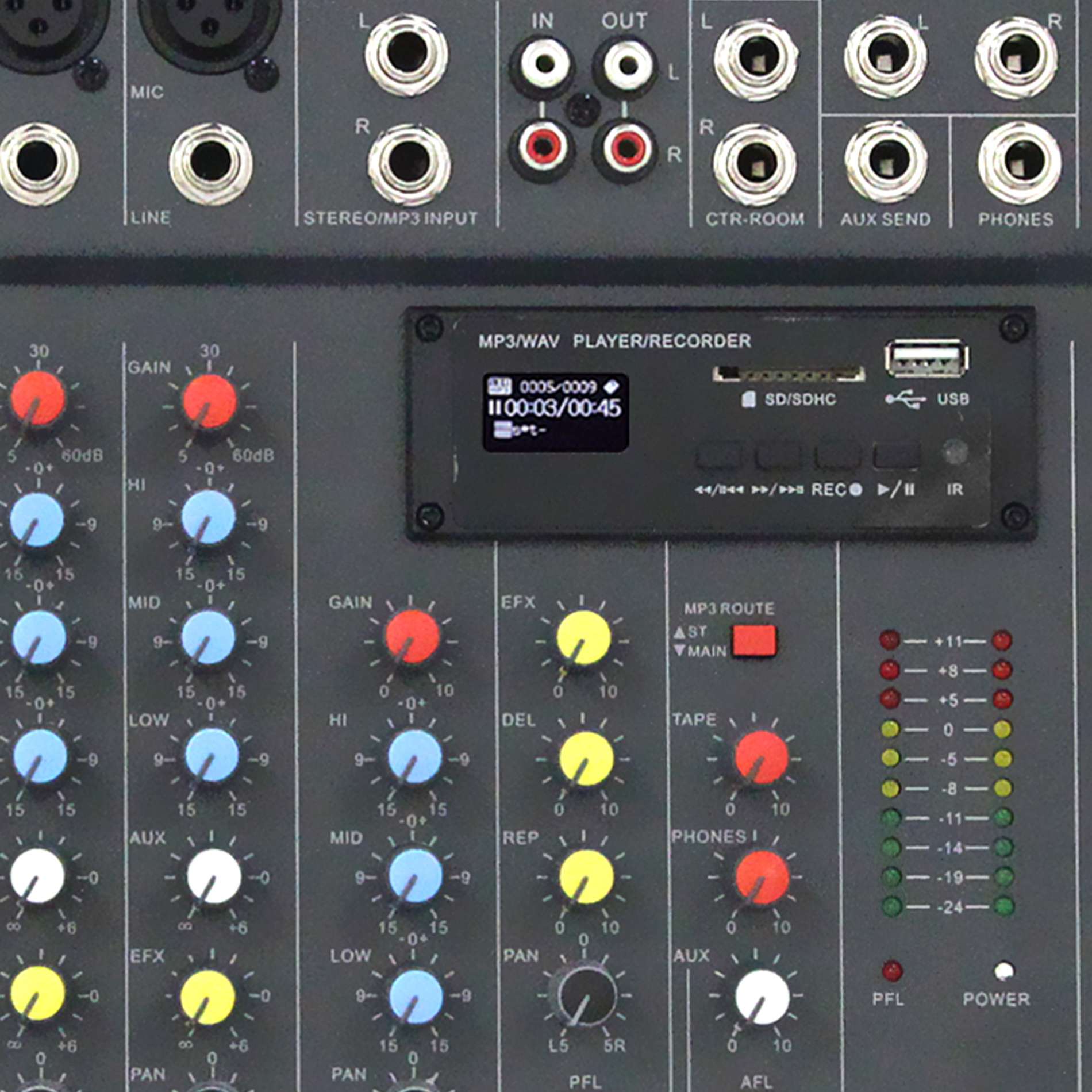

Very complete multimedia player with recording function.
Lire la suite

Technical sheet

  • Mixer connectivity Without computer connection
  • Number of channel mixing desk 10 to 22 channels
  • Number of channels 16 channels
  • 12 XLR microphone inputs
  • 12 unbalanced 6.35 mm line inputs
  • 2 balanced 6.35 mm line jack inputs
  • RCA TAPE inputs/outputs
  • XLR x 2 and 6.35mm x 2 outputs
  • AUX send
  • Control Room
  • Very low noise preamplifier
  • Adjustable Echo Type Effect
  • 3-way correction per channel
  • Clipping LED
  • Linear volume faders per channel
  • LED meters
  • Headphone jack
  • TAPE input and output
  • Frequency response: Mic/Line input to any output: +/- 0.5 dB, 20 Hz 20KHz
  • T.H.D : Mic sensitivity -30 dBu, +14 dBu @ Mix Output <0.007%
  • Noise: Mic E.I.N. input (maximum gain): -128 dBu (source150 ?)
  • Aux, Mix and Master (@0 dB, progressive attenuation) < -85 dBu
  • Channel mute: >96 dB
  • Aux Send Pots Offness: >86 dB
  • Input and output impedances: Mic input: 2.4 k?, Line input: 11 k? and Stereo input: 100k?
  • Input and output levels: Mic input: +17 dBu max, Line input: +30 dBu max, Stereo input: +30dBu max and Mix output: +20 dBu
  • Headset (@ 200?) 300 mW
  • EQ (mono/stereo input): HF : 12 KHz +/- 15 dB, MF : 140 Hz - 3 KHz, +/-15 dB, LF: 80 Hz +/-15 dB
  • Dimensions (H x W x D): 407 x 376 x 74 mm
  • Weight: 6,7 Kg
