Active subwoofer
the Vortice 100Sa Dsp is a subwoofer of DSP 500W.
Essential nowadays thanks to their acoustic qualities and simplicity of use, Column Line Array systems have become important actors in the field of the sound system. Definitive Audio is proud to present the VORTICE series of two columns and four subwoofers to cope with all sound reinforcement requirements. The system offers you, in fact, multiple combinations to best meet the requirements of places to sound.

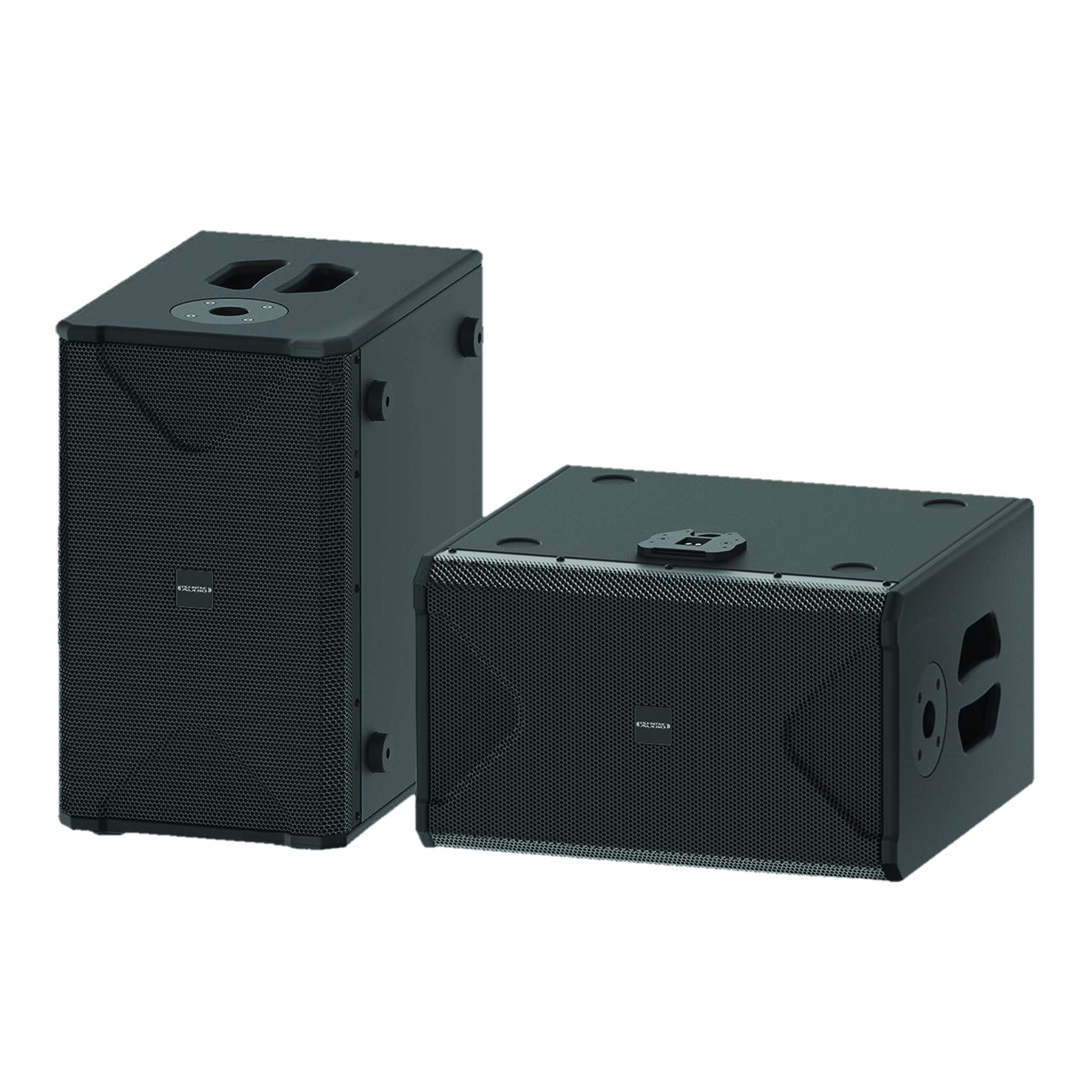

The VORTICE 110SA DSP is an active subwoofer equipped with a DSP to combine many systems with the Vortice range.
Essential nowadays thanks to their acoustic qualities and simplicity of use, Column Line Array systems have become important actors in the field of the sound system. Definitive Audio is proud to present the VORTICE series of two columns and four subwoofers to cope with all sound reinforcement requirements. The system offers you, in fact, multiple combinations to best meet the requirements of places to sound.
The VORTICE 110SA DSP is an active subwoofer equipped with a DSP to combine many systems with the Vortice range.
Lire la suite
Technical sheet
- PA power speaker 301 to 600 watts RMS
- Type of PA speaker FOH speaker
- Technical characteristics :
- Ventilated active subwoofer equipped with a DSP
- Amplification: Class D
- Speakers: 10 '' with 2.5 '' 450Z coil
- RMS power: 250W (Sub) + 250W (Sat)
- Bandwidth: 50 - 200Hz
- SPL: 118 dB
- Inputs: combo (XLR / Jack 6.35mm)
- Outputs: balanced XLR, XLR link for Vortice 110SA box and speakon for Vortice columns
- Volume control knob
- Sensitivity adjustment knob: + 4 / -10 dBu
- DSP: 3 positions according to the number of columns and boxes
- Compressor: excellent manufacturing and operation
- Case: high quality plywood
- Finish: high resistance black paint
- Grid: 1.2mm steel
- Power supply: 115 / 230V - 50/60 Hz switchable
- LED voltage indicator
- Cover sold in option
- Dimensions: 565 x 400 x 605 mm
- Weight: 16.5 Kg
