Description

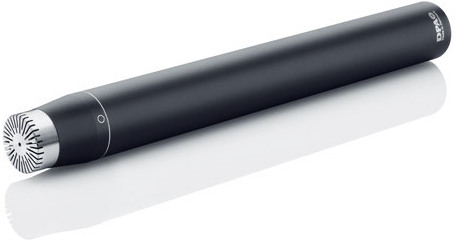

The 4006 is an omnidirectional studio microphone designed to offer total sonic transparency. Thanks to its high sensitivity, linear frequency response from 10 Hz to 20 kHz (±2 dB) and extremely low noise level, it is capable of capturing the finest details with remarkable depth and precision.
This mic is particularly well suited to a wide variety of acoustic instruments, revealing the full richness of high frequencies with exceptional definition and no coloration. Whether for classical, acoustic or ambient recordings, the 4006 guarantees natural, true-to-source reproduction.
This mic is particularly well suited to a wide variety of acoustic instruments, revealing the full richness of high frequencies with exceptional definition and no coloration. Whether for classical, acoustic or ambient recordings, the 4006 guarantees natural, true-to-source reproduction.
Lire la suite
Technical sheet
Directivity - Omnidirectional
Operating principle - Pressure
Capsule type - Pre-polarized capacitor
Frequency response - 10 Hz - 20 kHz
Effective range (±2 dB) - 10 Hz - 20 kHz
Sensitivity (nominal, ±2 dB at 250 Hz) - 36 mV/Pa; -28.9 dB re. 1 V/Pa
Equivalent noise level (A-weighted) - Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
Equivalent noise level (ITU-R BS.468-4) - Typ. 27 dB (max. 29 dB)
Distortion (THD < 1%) - 133 dB SPL RMS, 136 dB SPL peak
Dynamic range - Typ. 121 dB
Max. SPL level (THD 10%) - 146 dB SPL peak
Switchable attenuator / filters - 0 dB / -20 dB
Nominal output impedance - 200 Ω
Minimum load impedance - 2 kΩ
Cable capacity - 100 m (328 ft)
Balanced output principle - Impedance balancing with active control
Common-mode rejection ratio (CMRR) - > 60 dB
Power supply (for full performance) - P48 (phantom power)
Current consumption - 2.8 mA
Connector - XLR-3M (Pin 1: ground, Pin 2: signal + phase, Pin 3: - phase)
Weight - 163 g (5.7 oz)
Microphone diameter - 16 - 19 mm (0.6 - 0.75 in)
Capsule diameter - 16 mm (0.6 in)
Microphone length - 170 mm (6.7 in)
Maximum output voltage (RMS) - 8,0 V
Polarity - +V on pin 2 for positive acoustic pressure
Temperature range - -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) - Up to 90% RH
Matching tolerance (frequency response and sensitivity) - ±0.5 dB
Phase deviation (stereo kit) - < 5°
Color - Matt black
Polar diagram - Omnidirectional
