Lavalier microphone

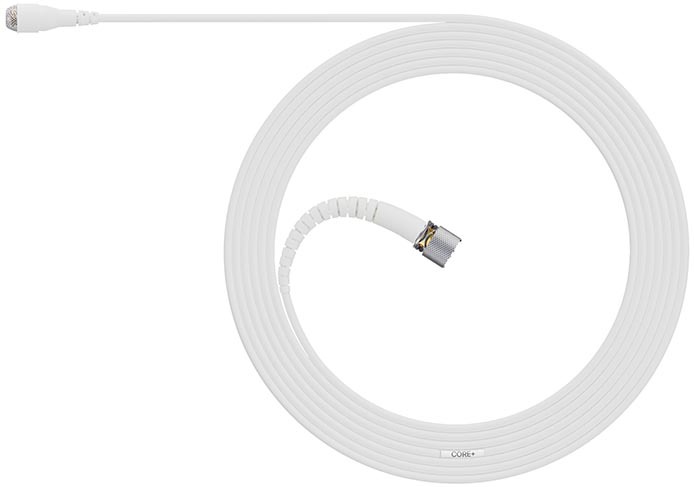

omni CORE+ 4060 microphone, Norm SPL, White, MicroLock
Lire la suite
Technical sheet
- Microphone connector Other connectors
- Type of microphone Dynamic
- Directivity
- Omnidirectional
- Operating principle
- Pressure
- Capsule type
- Pre-polarized capacitor
- Frequency response
- 20 Hz - 20 kHz
- Effective range (±2 dB)
- Soft Boost: 20 Hz - 20 kHz, soft boost of 3 dB at 8 - 20 kHz
- High Boost" grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
- Sensitivity (nominal, ±3 dB at 1 kHz)
- 20 mV/Pa; -34 dB re. 1 V/Pa
- Equivalent noise level (A-weighted)
- Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
- Equivalent noise level (ITU-R BS.468-4)
- Typ. 35 dB (max. 38 dB)
- Distortion (THD < 0.5%)
- 128 dB SPL RMS, 131 dB SPL peak
- Distortion (THD < 1%)
- 129 dB SPL RMS, 132 dB SPL peak
- Dynamic range
- Typ. 106 dB
- Max. SPL level (THD 10%)
- 134 dB SPL peak
- Nominal output impedance
- 30 - 40 Ω
- Cable capacity
- Up to 300 m (984 ft) with XLR adapter DAD6001-BC
- Power supply (for full performance)
- For wireless systems: 5 V min. - 10 V max. via DPA adapter
- With DAD6001-BC: P48 (phantom power), operates from 12 V
- Current consumption
- Typ. 1.5 mA (microphone)
- 3.5 mA with XLR adapter DAD6001-BC
- Connectors
- MicroLock
- Weight
- 7.5 g (0.26 oz) with cable and MicroLock connector
- Microphone diameter
- 5.4 mm (0.21 in)
- Microphone length
- 12.7 mm (0.5 in)
- Cable length
- 1.8 m (5.9 ft)
- Polarity
- Positive increase in sound pressure produces positive voltage on MicroLock pin
- Temperature range
- -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH)
- Up to 90% RH
- Sensitivity selection tolerance (at 1 kHz)
- ±1.5 dB
- Polar diagram
- Omnidirectional
