Lavalier microphone

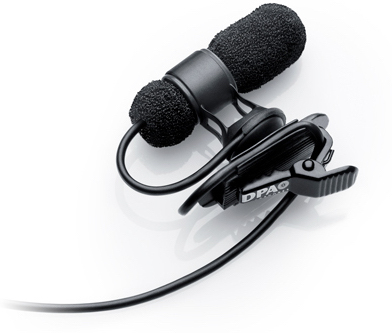

Cardioid microphone CORE+ 4080, Lavalier, Black, MicroLock.
The 4080 miniature cardioid microphone offers excellent speech reproduction, is discreet, fits left and right button-down shirts and comes with black and white filters.
The 4080 miniature cardioid microphone offers excellent speech reproduction, is discreet, fits left and right button-down shirts and comes with black and white filters.
Lire la suite
Technical sheet
- Microphone connector Other connectors
- Type of microphone Dynamic
Directivity - Cardioid
Operating principle - Pressure gradient
Capsule type - Pre-polarized condenser
Frequency response - 20 Hz - 20 kHz
Effective range ±2 dB - 250 Hz - 17 kHz, typ. +4 dB soft boost between 4 and 6 kHz, -5 dB at 100 Hz
Nominal sensitivity (±3 dB at 1 kHz) - 20 mV/Pa
- -34 dB re. 1 V/Pa
Equivalent noise level (A-weighted) - Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Harmonic distortion (THD) - < 1% at 126 dB SPL RMS, 129 dB SPL peak
Dynamic range - Typ. 106 dB
Max. SPL level (THD 10%) - 134 dB SPL (peak)
Nominal output impedance - 30 - 40 Ω
Cable length capacity - Up to 300 m (with DAD6001-BC XLR adapter)
Power supply - For wireless systems: 5 V to 10 V via DPA adapter
- With DAD6001-BC: P48 phantom power (works from 12 V)
Power consumption - Typ. 1.5 mA (microphone only)
- 3.5 mA with XLR adapter DAD6001-BC
Connector - MicroDot
Dimensions and weight - Microphone diameter: 5.7 mm
- Microphone length: 30 mm
- Weight: 15 g (with cable and MicroDot connector)
- Cable length: 1.2 m
- Cable diameter: 1.6 mm
Polarity - Increasing sound pressure produces positive voltage on MicroDot pin
Temperature range - -40°C to 45°C (-40°F to 113°F)
Relative humidity - Up to 90% RH
Color - Black
