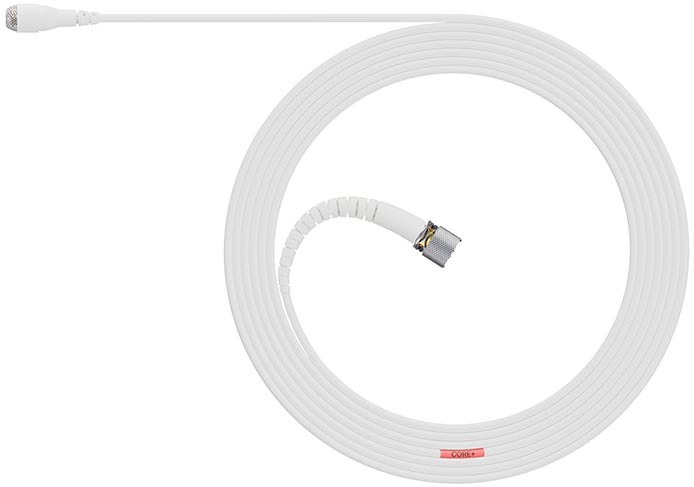

Lavalier microphone
micro omni CORE+ 4061, Loud SPL, White, MicroLock.
The 4061 miniature omnidirectional microphone delivers powerful sound in a compact package.
The 4061 miniature omnidirectional microphone delivers powerful sound in a compact package.
Lire la suite
Technical sheet
- Microphone connector Other connectors
- Type of microphone Dynamic
- Operating principle
- Pressure
- Capsule type
- Pre-polarized condenser element with vertical diaphragm
- Power supply
- 5 V to 50 V via DPA adapter
- Frequency response (±2 dB)
- Soft boost grid: 20 Hz - 20 kHz, soft boost of 3 dB between 8 and 20 kHz
- High boost grid: 20 Hz - 20 kHz ±2 dB, 10 dB boost at 12 kHz
- Directivity
- Omnidirectional
- Equivalent noise level
- Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
- ITU-R BS.468-4 standard: Typ. 38 dB (max. 40 dB)
- Total harmonic distortion
- <1% up to 123 dB SPL (peak)
- Preamplifier frequency range
- 20 Hz to 50 kHz (+0 dB / -3 dB)
- Output impedance
- 30 to 40 ohms
- Cable length capacity
- Up to 300 m (984 ft)
- Dimensions and weight
- Microphone length: 12.7 mm (0.5 in)
- Weight: <7.5 g (incl. cable and MicroLock connector)
- Cable length: 1.8 m (5.9 ft)
- Cable color
- Black
- Dynamic range
- Typ. 97 dB
- S/N ratio
- 68 dB(A) at 1 kHz and 1 Pa (94 dB SPL)
- Connector
- MicroLock
- Sensitivity
- 6 mV/Pa
- -44.5 dB re. 1 V/Pa
- Max. SPL level before saturation
- 144 dB SPL
