Lavalier microphone

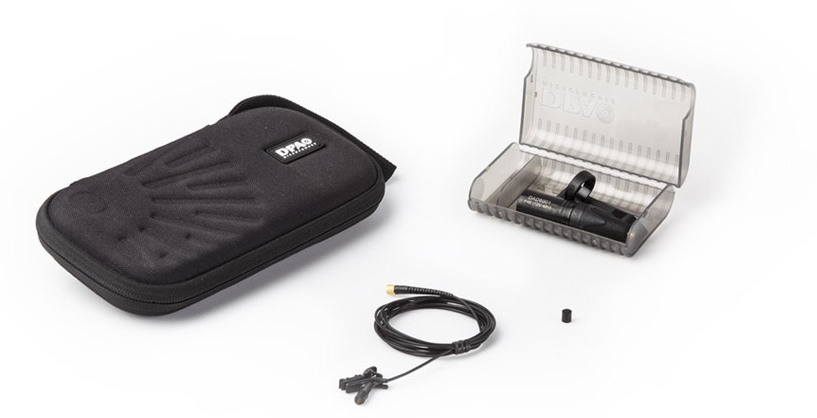

Lavalier Microphone Kit with 4060 Core+
Lire la suite
Technical sheet
- Microphone connector Other connectors
- Type of microphone Dynamic
- Directivity
- Omnidirectional
- Operating principle
- Pressure
- Capsule type
- Pre-polarized condenser element with vertical diaphragm
- Frequency range (±2 dB)
- Soft boost grid: 20 Hz - 20 kHz, soft boost of 3 dB between 8 and 20 kHz
- High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
- Nominal sensitivity (±3 dB at 1 kHz)
- 20 mV/Pa
- -34 dB re. 1 V/Pa
- Equivalent noise level
- Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
- ITU-R BS.468-4 standard: Typ. 35 dB (max. 38 dB)
- S/N ratio
- 71 dB(A) at 1 kHz and 1 Pa (94 dB SPL)
- Total harmonic distortion
- < 1% up to 123 dB SPL peak
- < 1% up to 120 dB SPL RMS sinusoidal
- Dynamic range
- Typ. 100 dB
- Max. SPL before saturation
- 134 dB SPL (peak)
- Output impedance
- 30 to 40 ohms
- Cable length capacity
- Up to 300 m (984 ft)
- Connector
- MicroDot
- Color
- Black or white
- Dimensions and weight
- Weight: 7.5 g (with cable and MicroLock connector)
- Diameter: 5.4 mm
- Length: 12.7 mm
- Cable length: 1.8 m
- Polarity
- Increasing sound pressure produces positive voltage on MicroLock pin
