Description

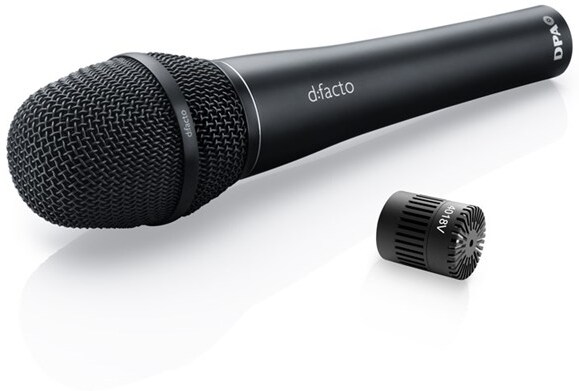

4018V-B-B01 - Softboost d:facto™ 4018V supercardioid microphone, DPA wired handle, black.
- Extraordinarily natural sound
- Perfectly uniform supercardioid polar pattern
- High separation
- Extreme SPL handling
- Low handling noise
- Streamlined design
Flexible adapter system fits most professional wireless systems.
Designed specifically for on-stage singing, the d:facto™ contains a 4018 supercardioid capsule designed to reproduce every nuance of the human voice as transparently, coherently and faithfully as possible.
Lire la suite
Technical sheet
- Hand Microphone Yes
- IOS compatibility Not compatible IOS
- Microphone connector XLR
- Type of membrane Large diaphragm microphone
- Type of microphone Electrostatic
- With tubes No
- Directivity
- Supercardioid
- Operating principle
- Pressure gradient
- Capsule type
- Pre-polarized condenser
- Frequency response
- 20 Hz - 20 kHz
- Effective range ±2 dB at 12 cm: 40 Hz - 16 kHz with soft boost of 3 dB at 12 kHz
- Nominal sensitivity (±2 dB at 1 kHz)
- 5 mV/Pa; -46 dB re. 1 V/Pa
- 2 mV/Pa; -54 dB re. 1 V/Pa with wireless adapter
- Equivalent noise level (A-weighted)
- Typ. 19 dB(A) re. 20 µPa (max. 21 dB(A))
- Distortion (THD < 1%)
- 136 dB SPL RMS
- 139 dB SPL peak
- Dynamic range
- Typ. 120 dB
- Max SPL (THD 10%)
- 160 dB SPL peak
- Nominal output impedance
- 100 Ω
- Minimum load impedance
- 1 kΩ
- Signal-carrying capacity
- Up to 100 m (328 ft)
- Output balancing principle
- Impedance balancing with Active Drive
- Common-mode rejection ratio (CMRR)
- > 50 dB at 1 kHz
- Power supply
- Phantom Power P48
- Power consumption
- Max 2.0 mA
- Connector
- XLR-3M (Pin 1: ground, Pin 2: signal + phase, Pin 3: - phase)
- Weight
- 309 g / 10.9 oz
- Dimensions
- Microphone diameter: 52 mm / 2.05 in
- Capsule diameter: 19 mm / 0.75 in
- Microphone length: 205 mm / 8.1 in
- Maximum output voltage (RMS)
- 8 V
- Polarity
- +V on pin 2 for positive sound pressure
- Operating temperature range
- -40°C to 45°C / -40°F to 113°F
- Relative humidity (RH)
- Up to 90% RH
- Color
- Matt black
