Patch

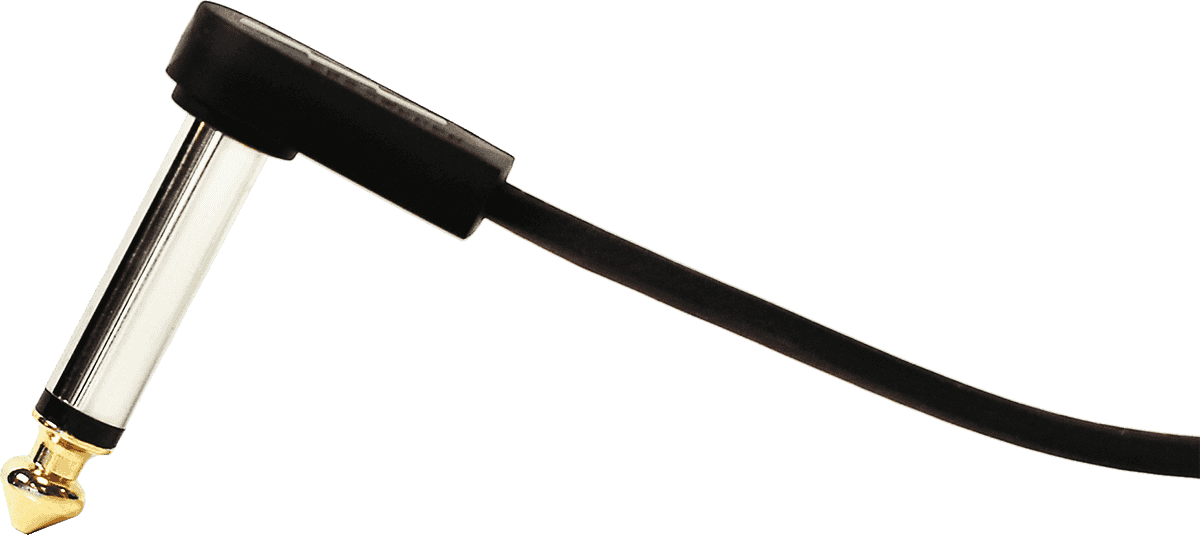

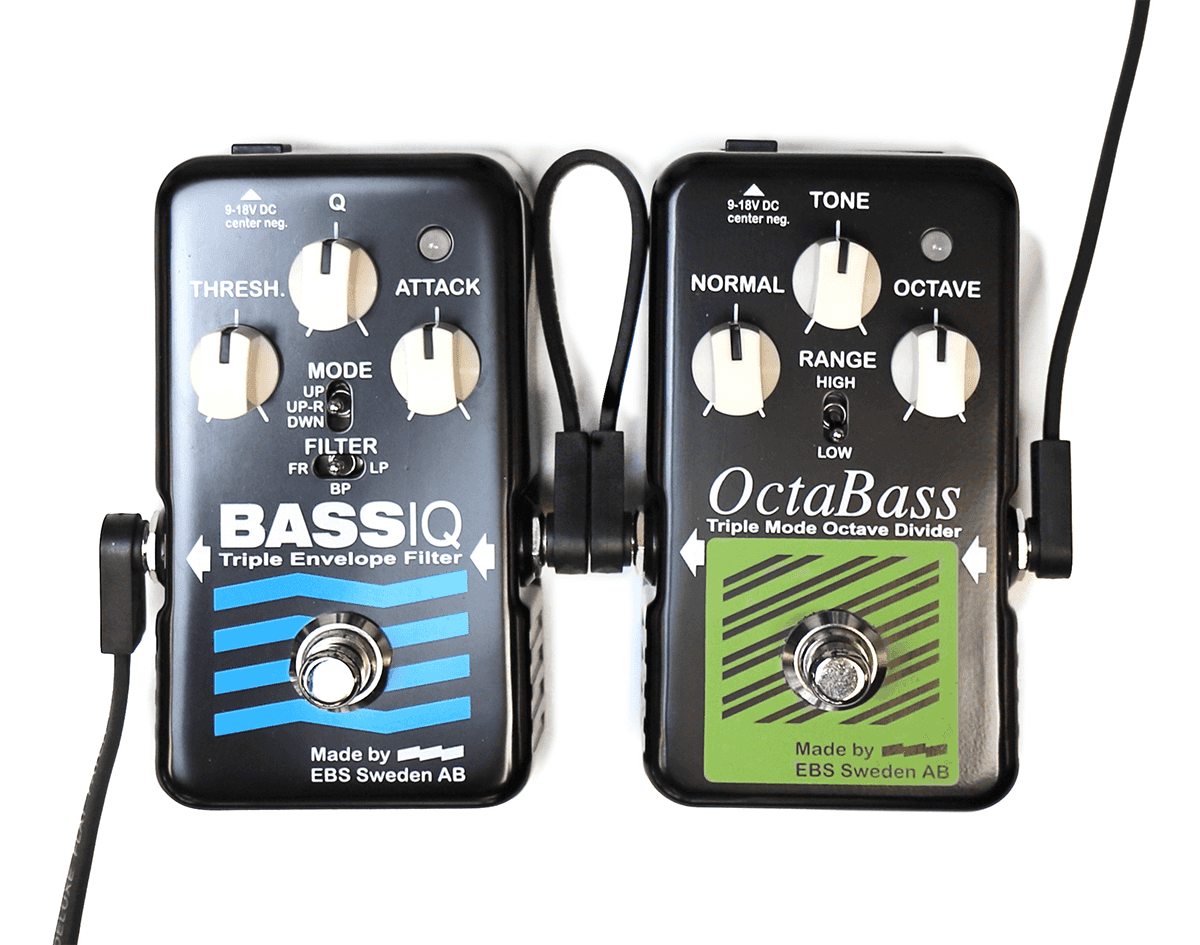

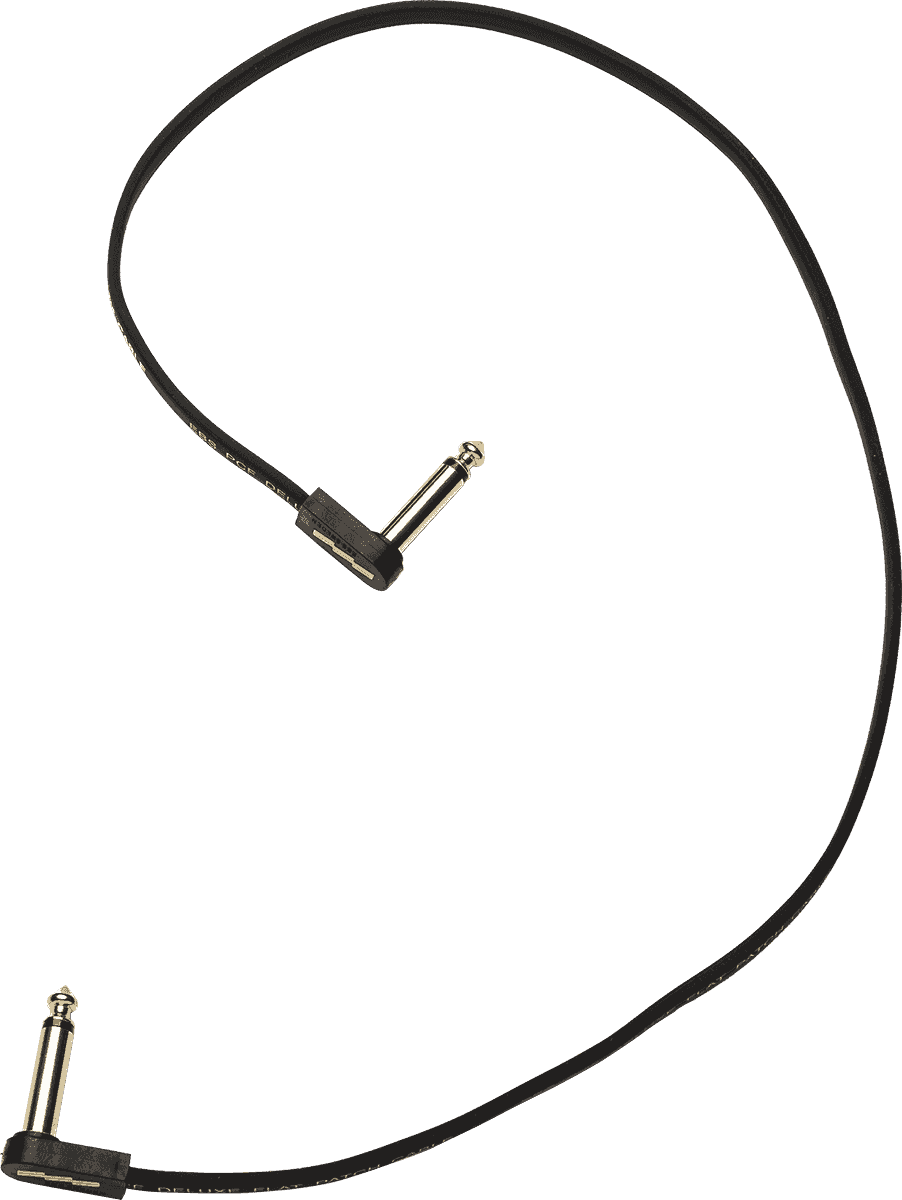

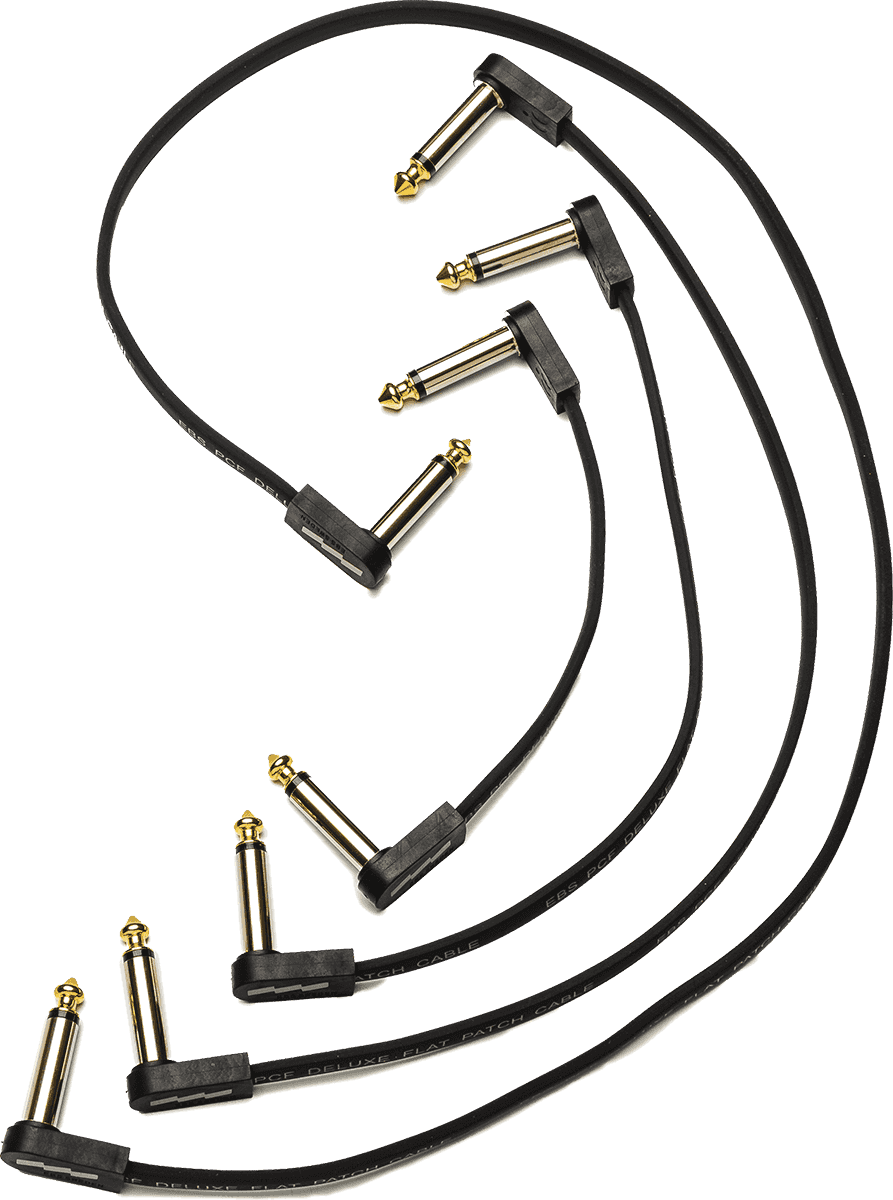

The PCF Deluxe flat patch cables were designed by EBS to facilitate the connection of pedals within a pedalboard. Highly practical, they are now a staple of many artists around the world.
While reducing the space taken up on a pedalboard, their flat design helps reduce tedious cable clutter and keeps the pedalboard perfectly organized. The Deluxe version features a reinforced jacket and a more robust core, improving the cable's performance and longevity.
While reducing the space taken up on a pedalboard, their flat design helps reduce tedious cable clutter and keeps the pedalboard perfectly organized. The Deluxe version features a reinforced jacket and a more robust core, improving the cable's performance and longevity.
Lire la suite
Technical sheet
Category - patch cable
Connectors - Mono male jack
Molded connectors - Yes
Color - Black
Oxygen-free copper - Yes
Format - angled
Length - 0,98 m
Connector brand - EBS
Sheath material - PVC
Number of pairs - 1
Shielding type - copper spiral and conductive plastic
Conductor - 20 x 0.12 mm flexible, optimized for low-voltage audio signals
Conductor resistance - <10 mΩ per decimeter
Capacitance - <10 pF per centimeter
Shielding - 38 x 0.12 mm, twisted copper
Cable dimensions - 6 mm wide, 3 mm high
Connector dimensions - 30 mm high x 13 mm wide x 6 mm thick
