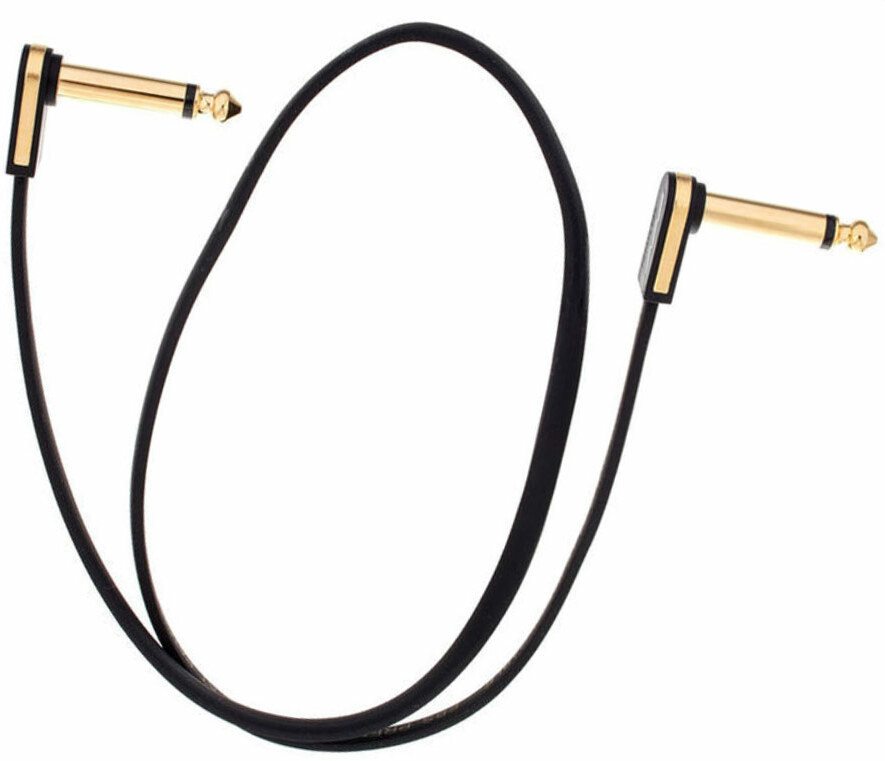

Ebs PG-58 Premium Gold Flat Patch Cable
- Read reviews (1)
- Similar products
The brand Ebs
Learn more about the Ebs brand and discover the entire catalog.
The largest network of stores in France
Find all the information on our superstores and our specialized boutiques.
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.
Patch
THE PREMIUM GOLD FLAT PATCH CABLE IS AN ORIGINAL DESIGN BY EBS, AND THE LUXURY VERSION OF THE WORLD RENOWNED PCF CABLE. THIS MIGHT BE THE MOST COMPACT PATCH CABLE IN THE WORLD WHILE OFFERING PROFESSIONAL QUALITY SIGNAL AND SHIELDING.
EBS PG-58 Premium Gold Flat Patch Cable : 58 cm, Contact housing made of 24 Carat Gold Plated Die Cast welded Zink. 24 Carat Gold Plated 1/4" Contacts. Ultra Compact and double shielded Flat Patch Cable. Probably the smallest and most compact patch cables available in the World right now. Very low resistance and capacitance keeps your sound uncolored without signal loss. Premium Quality at a very affordable price! The Premium Gold is even more compact than the EBS PCF cable, and also with improved performance.
EBS PG-58 Premium Gold Flat Patch Cable : 58 cm, Contact housing made of 24 Carat Gold Plated Die Cast welded Zink. 24 Carat Gold Plated 1/4" Contacts. Ultra Compact and double shielded Flat Patch Cable. Probably the smallest and most compact patch cables available in the World right now. Very low resistance and capacitance keeps your sound uncolored without signal loss. Premium Quality at a very affordable price! The Premium Gold is even more compact than the EBS PCF cable, and also with improved performance.
Technical sheet
- Die Cast Welded Zink Contact Housing
- Gold Plated Connectors and Housing
- Flat Patch Cables
- 58 cm
- Copper Conductors
- Super Compact Angled Contacts
- Extremely Well Shielded
- Very Low Resistance
- Contact house: 24 Carat Gold Plated

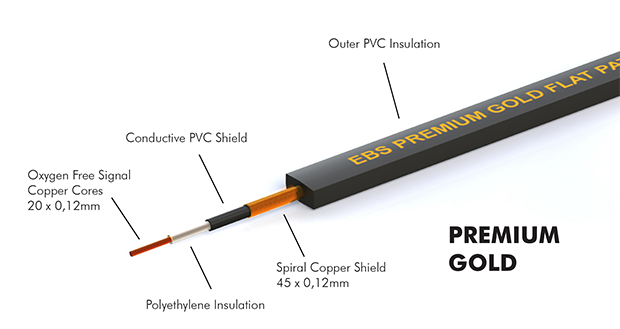

- Double Shield: Conductive PVC and Copper shield protect effectively from both LF and HF interferences.
- Conductor: Flexible copper conductor low voltage audio Operating Temperature: -15ºC to +70°C
- Outer Insulation: PVC (Polyvinyl Chloride)
- Signal Copper Cores: 20 x 0,12mm
- Signal Insulation: PE (polyethylene)
- Twisted Copper shield: 45 x 0,12mm
- Capacitance Cond./Shield: < 10 pF/decimeters
- Conductor Resistance: < 10 mOhm/decimeters
- Dimensions: 5,3 x 2,5 mm (rectangular cable), 22,0 x 11,5 x 5,0 mm (contact house)
