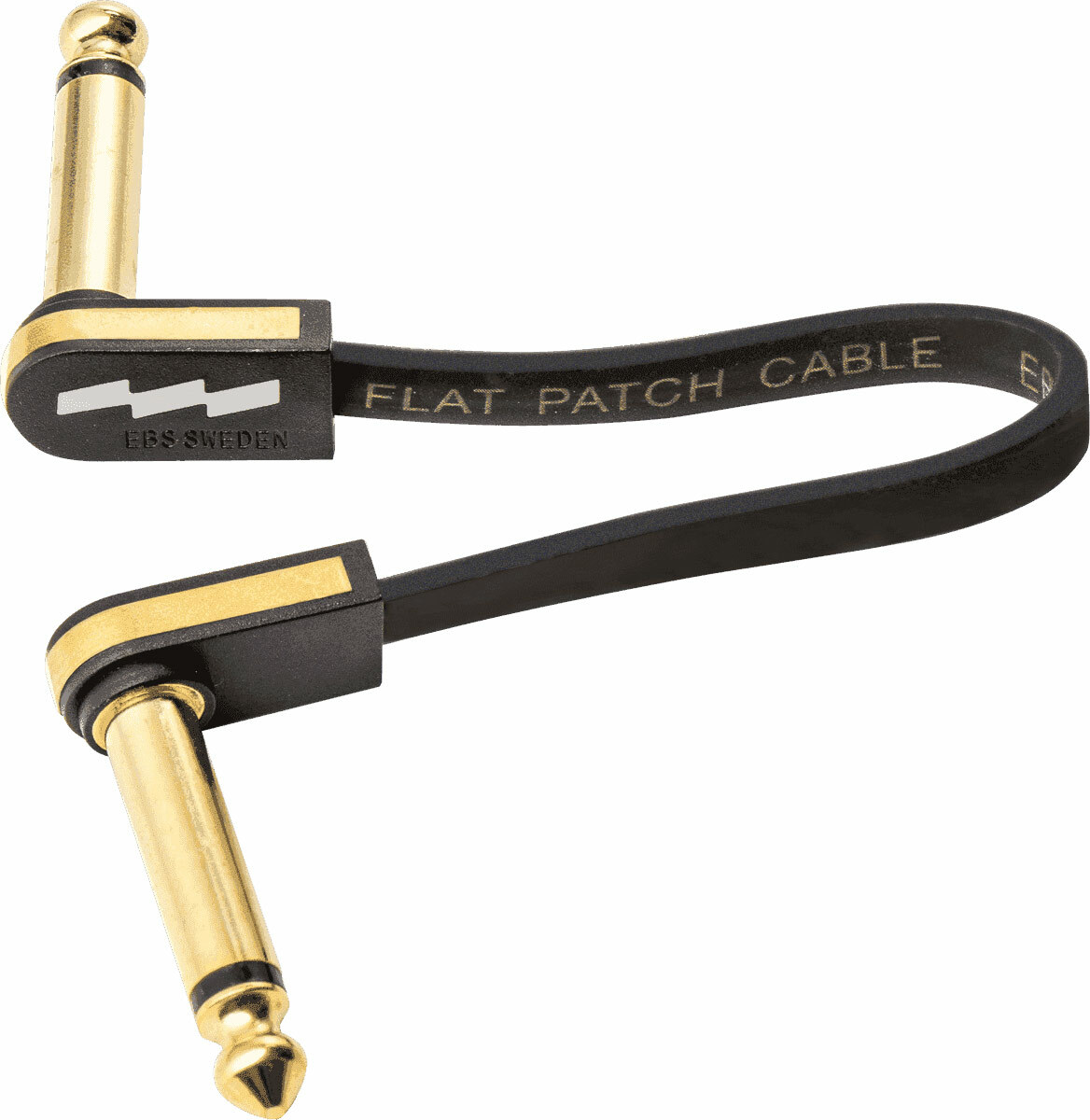

Ebs PG-10 Premium Gold Flat Patch Cable

Read reviews (1)
Similar products

12,45 €

Low prices guaranteed
Satisfied or refunded
1 Year warranty
Ref : 77048

In stock

deliverable in 24 hours

Stock in store

See availability. Store

•

La Pédale by Star's Music

•

Star's Music Lille

•

Star's Music Lyon

•

Star's Music Toulouse

Other version(s) or associated product(s)

The brand Ebs

Learn more about the Ebs brand and discover the entire catalog.

Discover

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

find out more

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

Patch

THE PREMIUM GOLD FLAT PATCH CABLE IS AN ORIGINAL DESIGN BY EBS, AND THE LUXURY VERSION OF THE WORLD RENOWNED PCF CABLE. THIS MIGHT BE THE MOST COMPACT PATCH CABLE IN THE WORLD WHILE OFFERING PROFESSIONAL QUALITY SIGNAL AND SHIELDING.

Contact housing made of 24 Carat Gold Plated Die Cast welded Zink. 24 Carat Gold Plated 1/4" Contacts. Ultra Compact and double shielded Flat Patch Cable. Probably the smallest and most compact patch cables available in the World right now. Very low resistance and capacitance keeps your sound uncolored without signal loss. Premium Quality at a very affordable price! The Premium Gold is even more compact than the EBS PCF cable, and also with improved performance.

Technical sheet

Die Cast Welded Zink Contact Housing
Gold Plated Connectors and Housing
Flat Patch Cables
Copper Conductors
Super Compact Angled Contacts
Extremely Well Shielded
Very Low Resistance
Contact house: 24 Carat Gold Plated

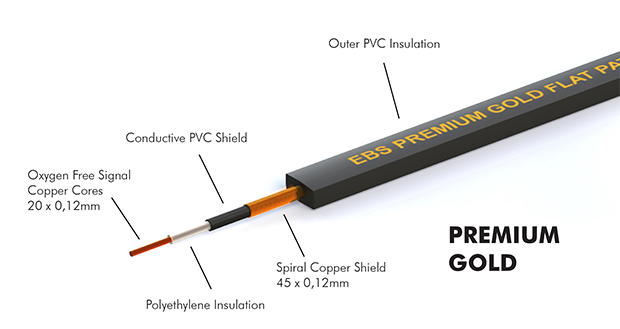

Double Shield: Conductive PVC and Copper shield protect effectively from both LF and HF interferences.
Conductor: Flexible copper conductor low voltage audio Operating Temperature: -15ºC to +70°C
Outer Insulation: PVC (Polyvinyl Chloride)
Signal Copper Cores: 20 x 0,12mm
Signal Insulation: PE (polyethylene)
Twisted Copper shield: 45 x 0,12mm
Capacitance Cond./Shield: < 10 pF/decimeters
Conductor Resistance: < 10 mOhm/decimeters
Dimensions: 5,3 x 2,5 mm (rectangular cable), 22,0 x 11,5 x 5,0 mm (contact house)
