Overdrive, distortion & fuzz effect pedal

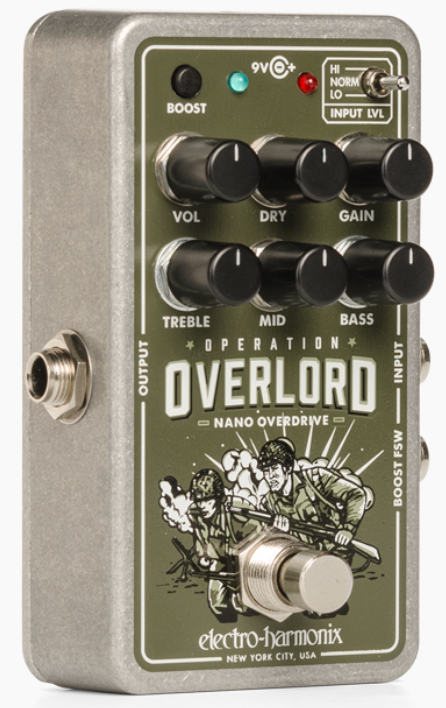

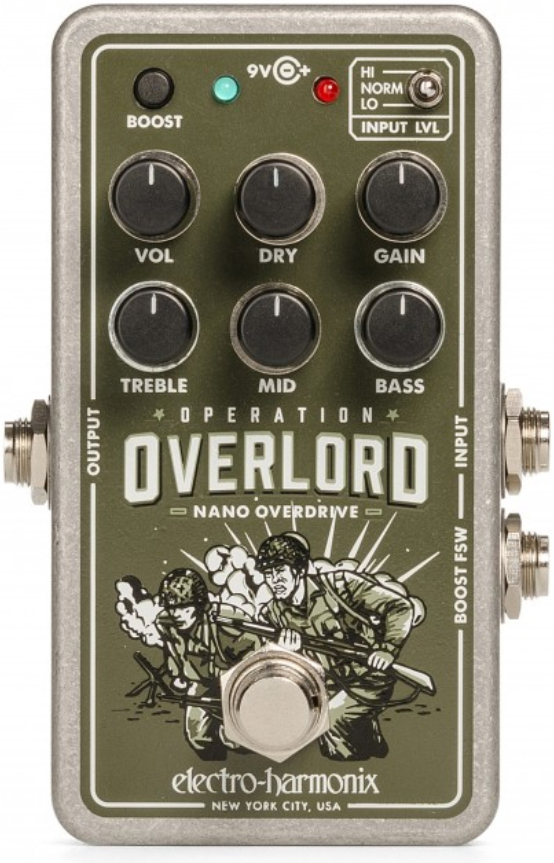

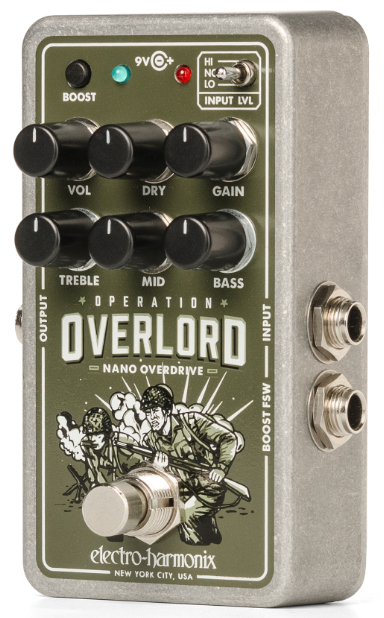

EHX Nano Operation Overlord Allied Overdrive effect pedal is a compact version of the Operation Overlord with the same great overdrive and distortion tones, but in mono for those who don’t require stereo ins/outs. It’s super versatile and ready for your axe be it guitar, bass or keys.
The Nano Overlord is switchable between two modes: Normal and Boost. Normal mode provides low to medium gain sounds and relies on three amp-like JFET gain stages. When Boost mode is engaged it’s like adding a pedal-type OD circuit in front of the JFET stages to really increase overall distortion. The pedal also features a Dry blend control which is invaluable for bass and keyboards, a 3-position input level selector switch and an active 3-band EQ.
The Nano Overlord is switchable between two modes: Normal and Boost. Normal mode provides low to medium gain sounds and relies on three amp-like JFET gain stages. When Boost mode is engaged it’s like adding a pedal-type OD circuit in front of the JFET stages to really increase overall distortion. The pedal also features a Dry blend control which is invaluable for bass and keyboards, a 3-position input level selector switch and an active 3-band EQ.
Lire la suite
Technical sheet
- -EHX Nano Operation Overlord Allied Overdrive
- SKU EHXNRAM
- Compact effect pedal for electric guitar/bass and keyboards
- 2019
- Controls : Gain, Dry, Volume, Bass Mid, Treble
- Boost circuit switch
- 3 positions input level selector
- Input for optional Boost circuit activation footswitch
- Powered via optional 9VDC power supply
- Doesn't woerk with battery
- Current Draw 5mA @ 9VDC
- 70 x 114 x 51 mm
- 290 g
- Manual : https://www.ehx.com/assets/instructions/nano-operation-overlord.pdf
