Evh 5150 Series Deluxe - black
- Read reviews (0)
- Related accessories
- Similar products
VIDEO
VIDEO
- Free delivery
- Low prices guaranteed
- Satisfied or refunded
- 3-years warranty
In stock
Shipping after adjustments
Stock in store
Not available in store
Variation(s) of this product.
The brand Evh
Learn more about the Evh brand and discover the entire catalog.
Electric guitar buying guide
How to choose your electric guitar? Everything is explained in this buying guide.
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.
Str shape electric guitar

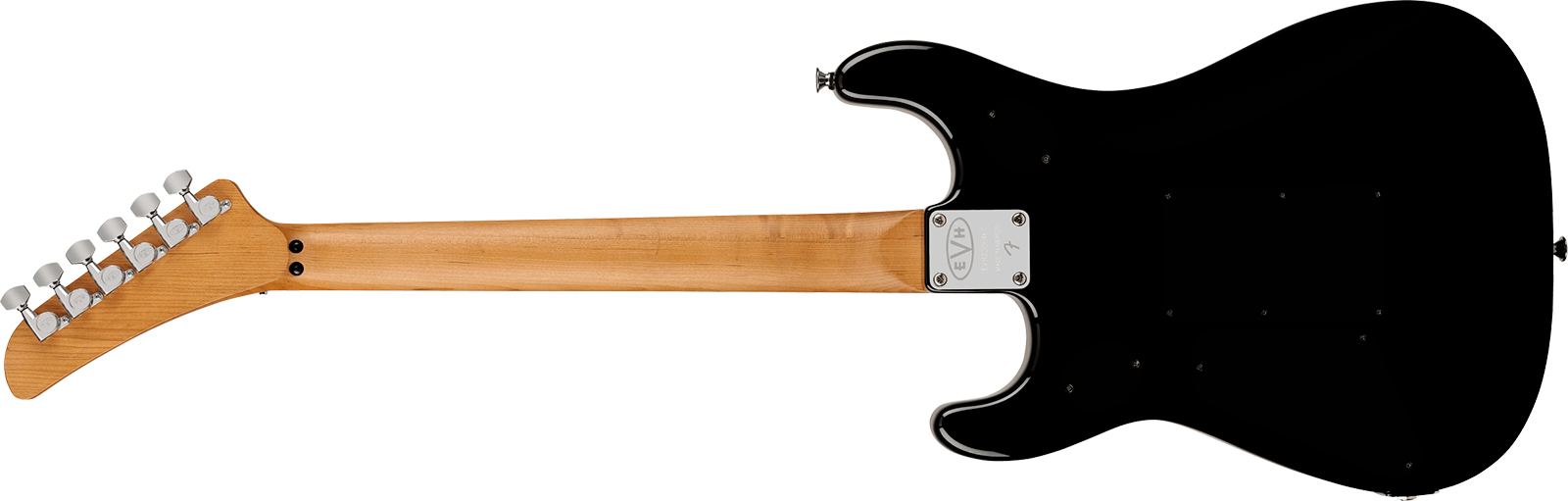

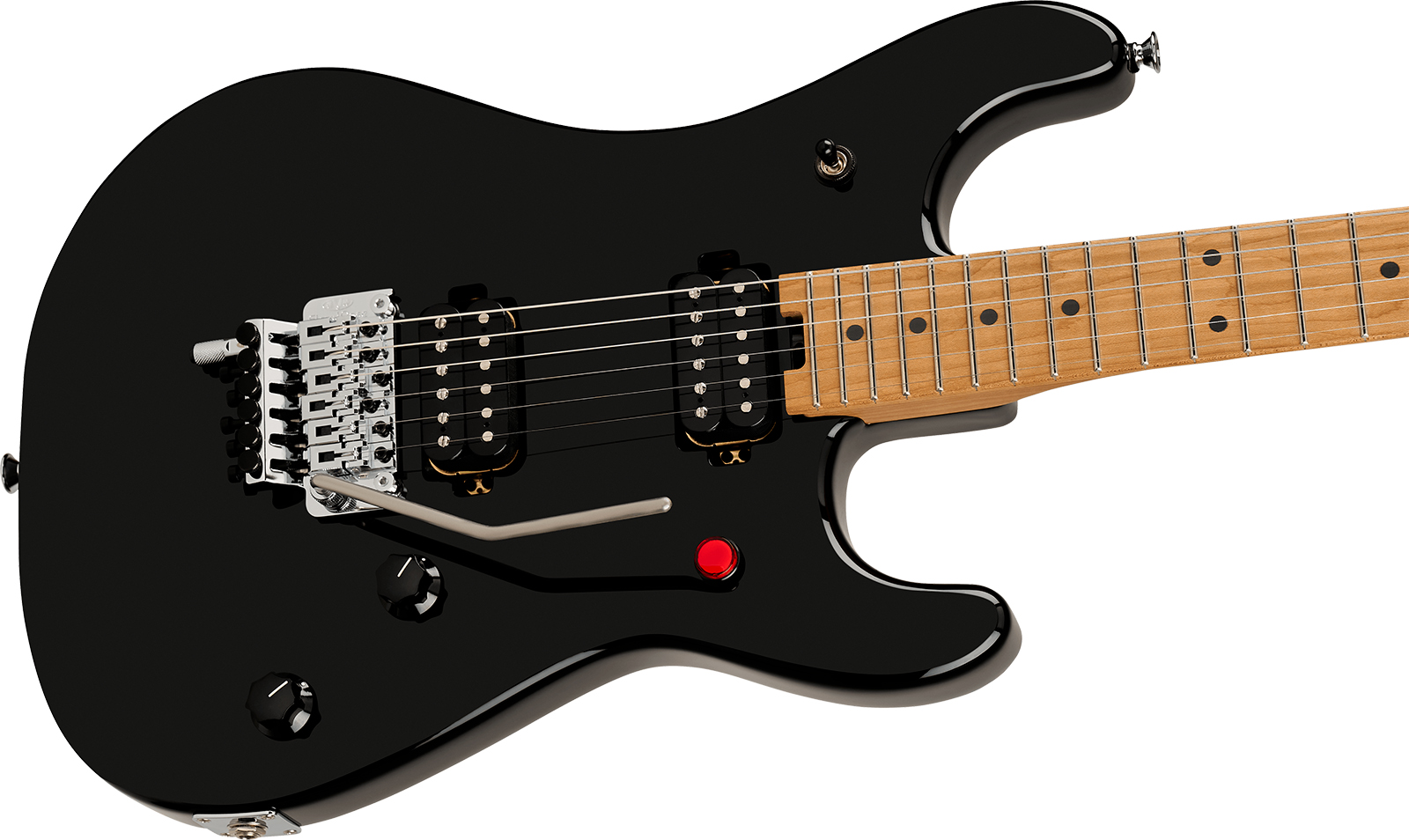

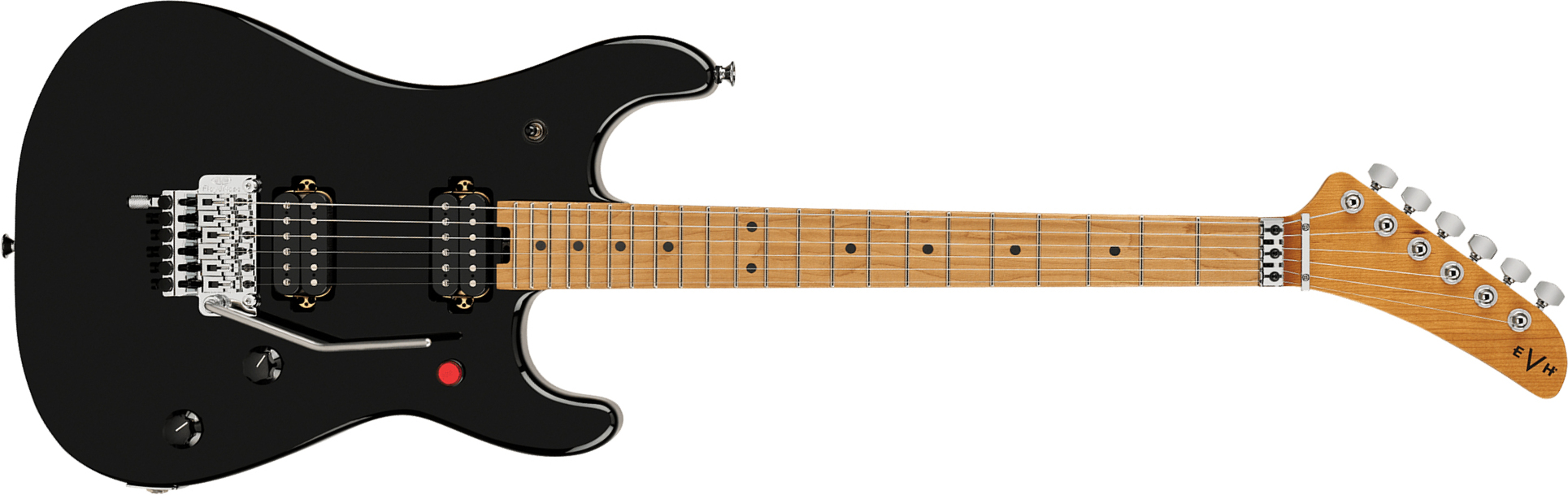

The EVH 5150 Series Deluxe solid body electric guitar (5108300303) continues the mythical cutaway of the Frankenstein Guitar imagined by the maestro in the 1970s. Produced in Mexico, the 5150 Standard features a Basswood body, bolt-on neck and Torrefied Maple fingerboard (22 frets, Fender© type 25.5" scale, EVH Modified C profile, 12/16" hybrid radius). Its EVH Wolfgang Direct Mount pickups offer a perfect balance of power and articulation. The high-performance potentiometers are Bourns EVH Low Friction Pot (500K volume, 250K tone). There's also a Kill Switch to generate stutter effects, and a Treble Bleed circuit (to maintain high frequencies when the volume is turned down). A 5150 without vibrato wasn't an option, so it features a Floyd Rose-licensed double-block system with D-Tuna (to drop the low E string in D).
Lire la suite
Technical sheet
- Color Black
- Electric Guitar Style Str (or close shape)
- handle with head yes
- Number of strings 6 strings
- Right-handed / Left-hand Right-handed
- EVH 5150 Series Deluxe
- SKU EVH 5108300303
- Solid body electric guitar
- Made in Mexico
- Basswood body
- Torrefied maple bolt-on neck, EVH Modified C profile
- Torrefied maple fingerboard, 22 jumbo frets
- 25.5" (648 mm) scale
- 12/16" hybrid radius
- Neck width 1st fret 1.6875" (42.86 mm)
- Neck depth 3rd fret .0790" (.0790")
- Neck depth 12th fret .825" (1.825 mm)
- Double humbucking pickups EVH Wolfgang Alnico 2
- Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed
- Tone (250K EVH® Bourns® Low Friction Pot)
- 3-position microphone selector
- Kill Switch
- Top-Mount EVH®-Branded Floyd Rose® Locking Tremolo bridge/vibrato with EVH® D-Tuna

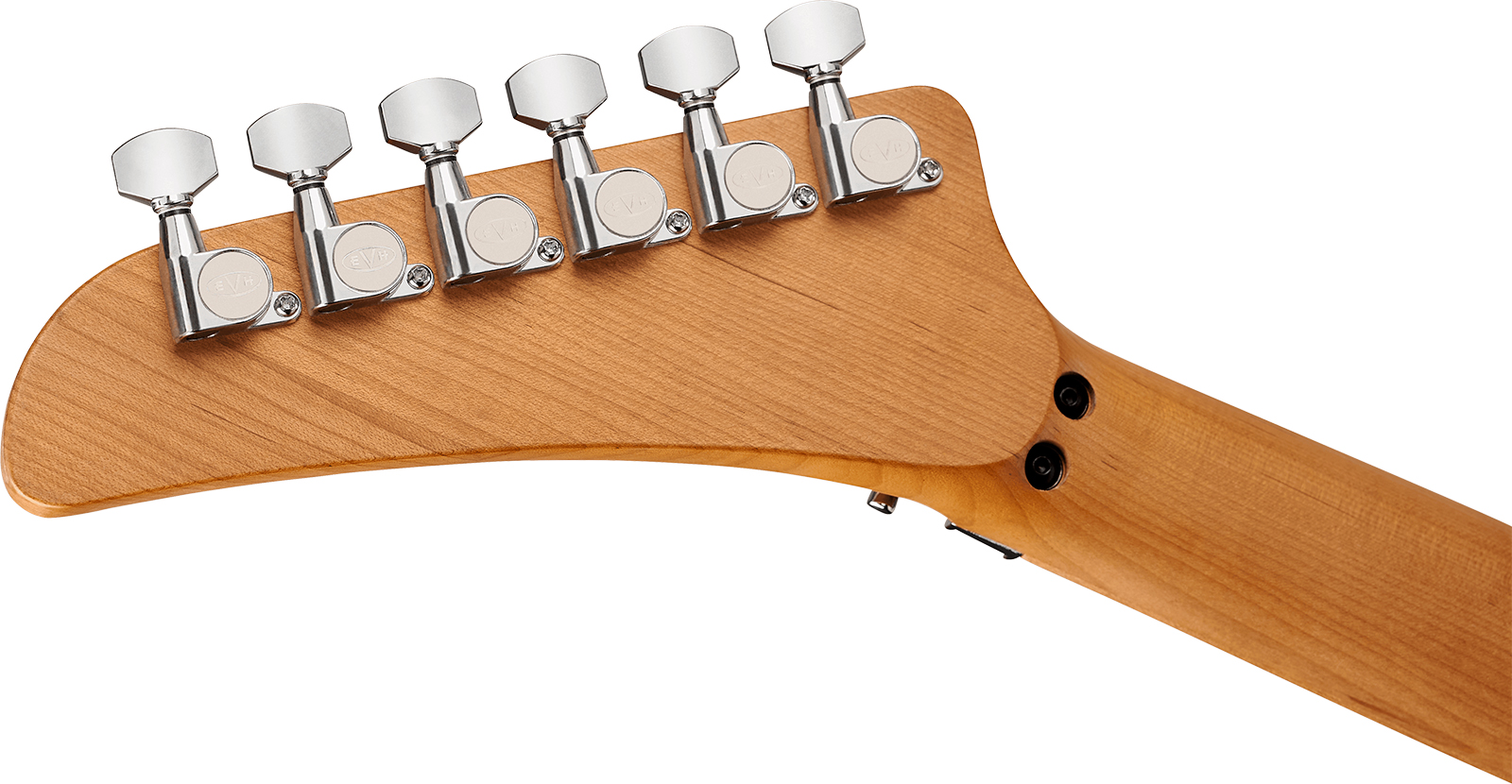

- EVH®-Branded Gotoh tuning machines
- Satin body finish
- Satin neck finish
- Optional EVH® Striped Hardshell case (022-6100-506)
- Optional EVH® Black Gig Bag (022-1512-006)
More specifications
Fewer specifications
