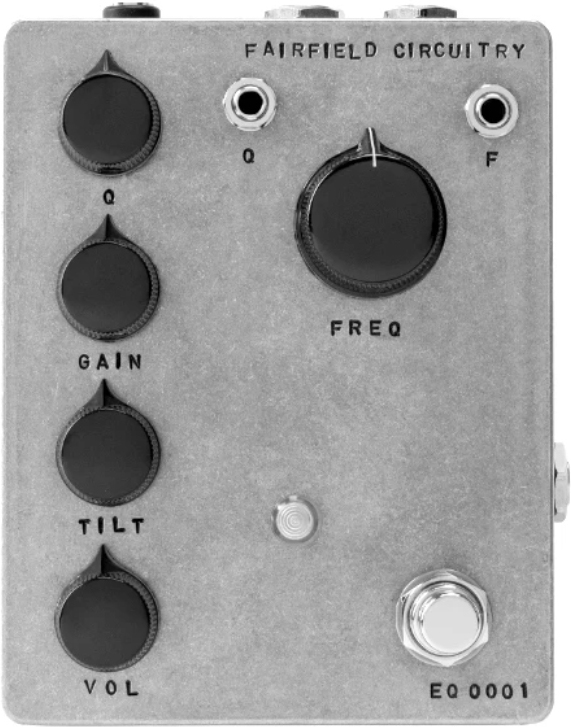

Eq & enhancer effect pedal
The FAIRFIELD CIRCUITRY Long Life Parametric EQ compact pedal is a state variable parametric filter for subtly adjusting the frequency response.
An expression pedal (optional) allows you to create wah-type effects.
Some parameters can be controlled via external CV controllers like sampler or synth.
An expression pedal (optional) allows you to create wah-type effects.
Some parameters can be controlled via external CV controllers like sampler or synth.
Lire la suite
Technical sheet
- FAIRFIELD CIRCUITRY Long Life Parametric EQ
- SKU LONGLIFE
- State-variable filter
- Made in Quebec
- 2020
- Controls & connections : see pictures & manual
- Shelving filter, from low-pass to high-pass
- CV inputs for resonance (Q) and frequency (F)
- V/octave scaling synthesizer interface
- Fully variable Q goes well into tasty sweet self-oscillations
- Soft clip zener zesty mordant
- Expression pedal input controls center frequency
- Flexible tone stack allowing for careful tuning of desired response
- Stacking before/after other pedals for dramatic emphasis/deemphasis
- With an expression pedal for wah-type debaucherie
- Standalone channel strip EQ for outboard processing
- Integrated with a modular synthesizer mindset, can act as a VCF and a VCO
- With external CV control such as sequencers and keyboards
- Powered via optional 9VDC power supply, negative center, cons. mini. 150 mA
- 11.94 x 9.65 x 4.83 cm
- Manual :https://cdn.shopify.com/s/files/1/0234/8231/files/EQ-specifications.pdf?v=1597426909
