Thunderbolt audio interface

The features both DigiLink and Thunderbolt connectors, so it's now easier than ever to switch from Pro Tools | HD to a native audio/Midi sequencer without having to reconfigure the interface's option boards. Like all Red Series interfaces, the 16Line offers exceptional latency levels.

The high-performance audio converters offer a dynamic range of 118 dB input and 121 dB output. They have been specially calibrated to provide the best balance of sound quality, dynamics and conversion latency. Red's ultra-low latency completely transforms your workflow. If you're used to handling different mixes (one for input monitoring and overdubs, the other with the sequencer for playback), it's now entirely possible to do your software mix with your sequencer for input levels, headphones, overdubs and mixing in the same session with all of your plug-ins as inserts.

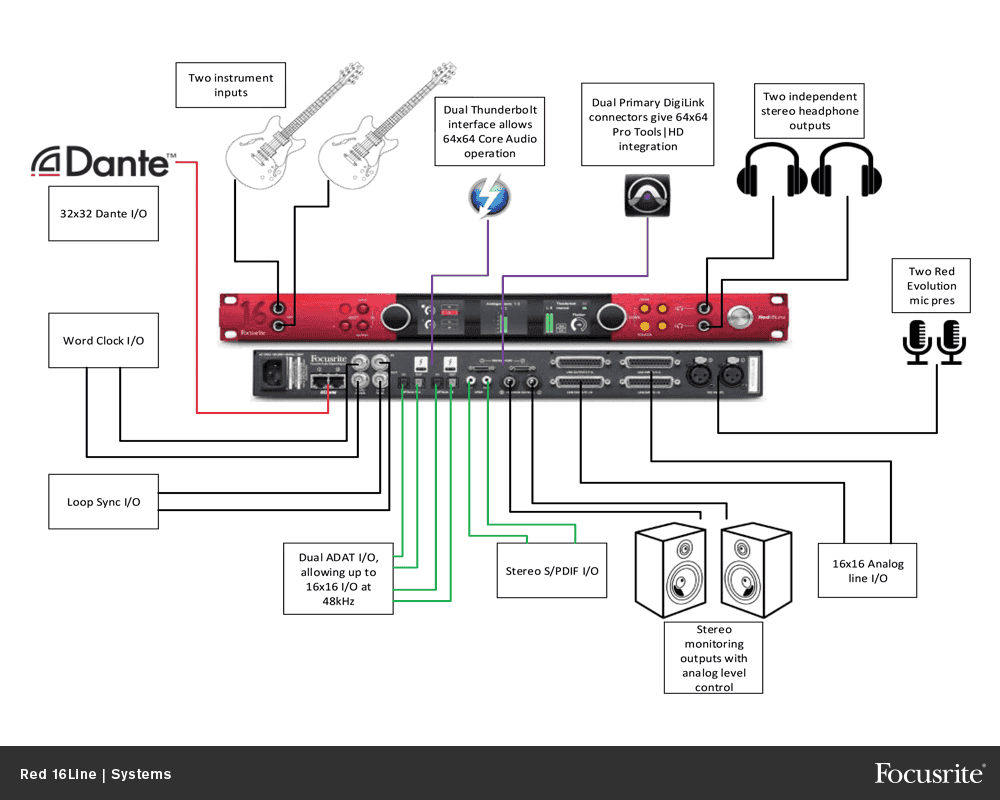

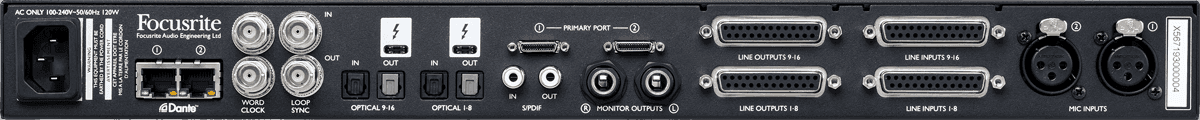

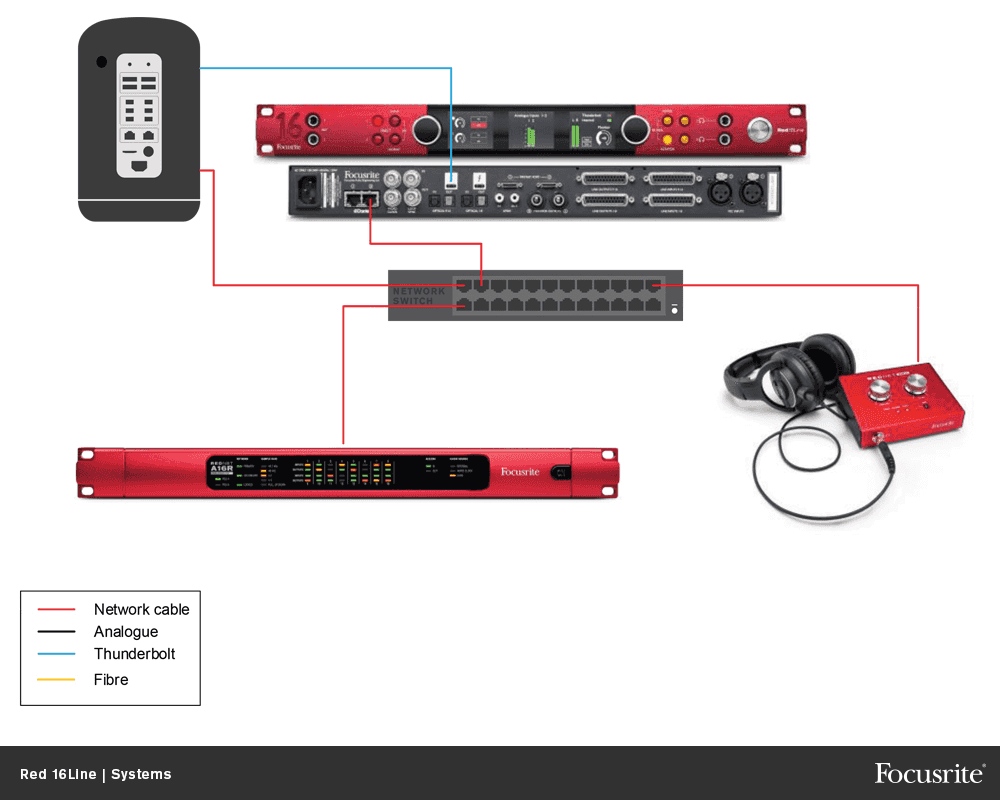

The Red 16Line has 16 D-sub line inputs, 16 line outputs and 2 monitor outputs. The 2 digitally controlled mic preamps offer up to 63dB of ultra-clean gain, with stereo link, individual phantom power, high-pass filter, polarity and air mode, the signature sound of the classic Focusrite ISA preamp transformer. With a 2-port Dante card, you can expand your studio over Ethernet for more channels at higher sample rates, anywhere in your network, with low latency and lower cost.

Technical sheet

DSP No

Power supply : Mains
Phantom power : Yes
Category : Other
Compatibility: PC, Mac
Dimensions (mm) : 44 x 483 x 340
Format: rack
Sampling frequency : 192 kHz
Interfacing: Thunderbolt, ProTools HD
MIDI interface: No
Software provided : Focusrite Red 2 & 3 Plug-in Suite bundle, Softube Time & Tone bundle
Number of inputs : 64
Number of analog inputs: 16
Number of digital inputs: 48
Number of outputs: 64
Number of digital outputs: 48
Number of instrument inputs: 2
Number of microphone inputs: 2
Weight (kg) : 5,14 kg
Max resolution : 24-bits
Digital input type : S/PDIF, Adat, Dante
Digital output type : S/PDIF, Adat, Dante
Worldclock : Yes
Complementary specs :
Digilink (Pro Tools | HD), Thunderbolt 3 or Dante interfacing simultaneously without opTonal card
High-performance audio conversion with over 118dB of AD dynamic range and 121dB of DA dynamic range
ultra-low round-trip latency for monitoring plugins and recording virtual instruments in real time
Air mode on preamps, giving recordings the clarity of a transformer-based ISA
2 Thunderbolt 3 ports
Dual Dante cards
3 Lcd displays for highly accurate level measurement
Focusrite Control software mixer for monitoring and routing configurations, with remote control of preamps
2 high-fidelity discrete outputs
Connect multiple digital sources using Wordclock and LoopSunc I/O

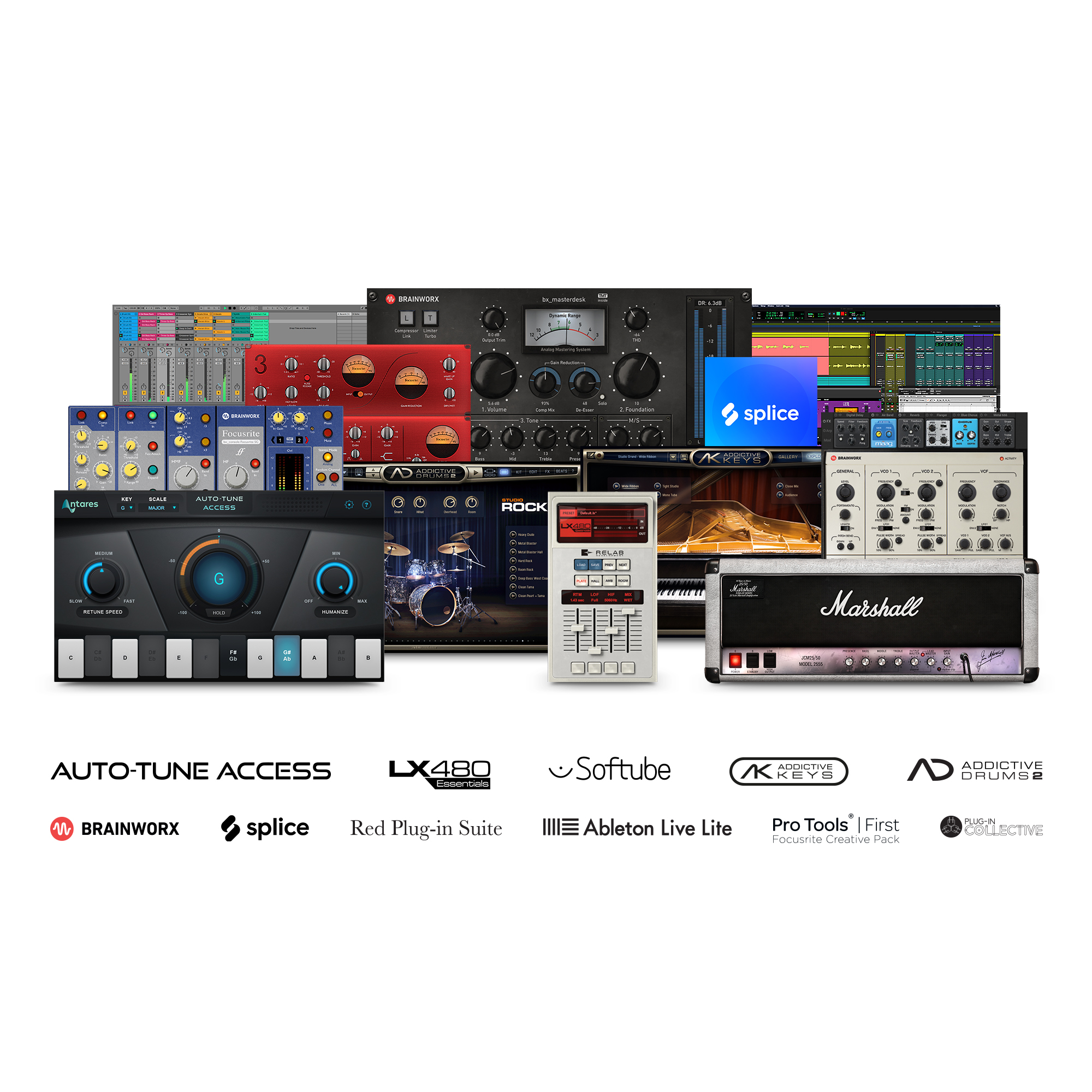

Plugins Inclus :
Antares Autotune Access (FULL) –exclusive –$99
RelabLX480 Essentials reverb –$99 [Based on the industry standard Lexicon 480L]
SoftubeMarshall Silver Jubilee 2555 amp and cab sim –$99
XLN Addictive Drums 2 –$99 [Based on TamaStarclassic, Pearl Masterworks, Pearl Signature Ferrone, Paisteand Sabian]
Brainworxbx_Oberhausen32-voice analogue modelled polysynth–$249
Brainworxbx_consoleFocusrite SC –$349
Brainworxbx_masterdeskmaster bus –$299
