Focusrite RedNet TNX

Read reviews (0)
Related accessories
Similar products

Ref : 117292

2322,00 €

Free delivery
Low prices guaranteed
Satisfied or refunded
3-years warranty

Pre-order

Shipped under 2025/06/27

Stock in store

Not available in store

INFORM ME OF ITS ENTRY IN STOCK

I want to be notified by email

The brand Focusrite

Learn more about the Focusrite brand and discover the entire catalog.

Discover

Sound card buying guide audio interface

Through this buying guide, you will find all the information you need to make your first audio interface purchase.

To consult

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

Thunderbolt audio interface

RedNet TNX is a high-end digital audio interface developed for the most demanding professional environments.

RedNet TNX highlights

Thunderbolt™ connection with support for up to 128x128 channels at 192 kHz in ultra-low latency.
Expandable to 256x256 channels via Dante Ready™ at 24-bit/96 kHz.
Dolby Atmos compatibility for professional multichannel post-production.
Seamless integration with Dante, AES67, SMPTE ST 2110 and Dante Domain Manager.
Two RJ-45 Ethernet ports for secure, redundant network connections.

Key features of RedNet TNX

A powerful digital audio environment

Thanks to Thunderbolt™ connectivity and the Dante protocol, RedNet TNX enables ultra-high-resolution work with 128x128 channels at 192 kHz. It offers minimal latency, making it ideal for mission-critical production environments.

Scalable interface with Dante Ready™

RedNet TNX can be easily upgraded to 256x256 audio channels thanks to a Dante Ready™ license. This means it can adapt to the most complex projects without changing hardware.

Quick and easy installation

Plug it into Thunderbolt™ on a Mac or PC, connect it to your network via a simple Ethernet cable, and you're ready to work. No complex set-up required.

Optimized for Dolby Atmos post-production

Thanks to its full integration with Dolby Renderer, RedNet TNX becomes an essential link for post-production in multichannel immersive audio via Dante.

Network reliability and transportability

With its two RJ-45 Ethernet ports, it operates in redundant or switched mode, offering maximum security. Easy to transport, it adapts to all professional environments, even on the move.

Centralized control with RedNet Control

Manage your entire RedNet audio network with the RedNet Control application, designed to provide precise visibility and control of your connected equipment.

Rack integration and Thunderbolt™ connectivity

RedNet TNX integrates perfectly into your studio or control room via rack mounting with M5 screws. Each Thunderbolt™ port provides 15 W to power additional serial peripherals.

Expert advice

A powerful, easy-to-deploy network audio solution.
Perfect for Dolby Atmos studios and broadcast post-production.

Technical sheet

DSP Yes

Simultaneous inputs and outputs
- 128 x 128 (all sampling frequencies)
- 256 x 256 (up to 96 kHz)
Digital specifications
- Supported sampling frequencies: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
- Variation ranges: -4% / -0.1% / +0.1% / +4.167
- Resolution: 24-bit
Dante connectors
- 2 standard RJ45 Ethernet connectors
- Compatible with Category 5e and higher cables
Compatible drivers
- ASIO and WDM multi-client (Windows)
- CoreAudio (Mac)

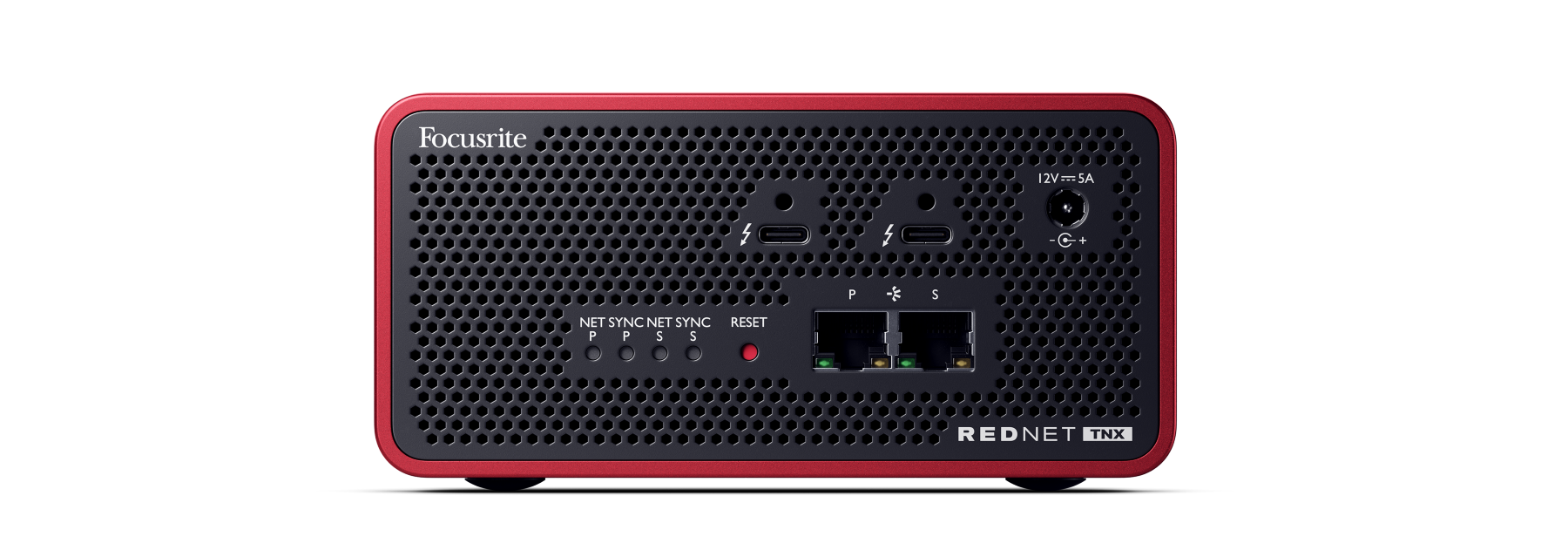

Rear panel
- 2 Thunderbolt™ 3 ports (15 W power each)
- 2 Sonnet ThunderLok™ connectors
- 2 LEDs for active network (primary / secondary)
- 2 LEDs for network synchronization (primary / secondary)
- 1 DC power socket
- 1 reset button
Power supply
- Operates on external DC power supply
Thermal performance
- Maximum ambient temperature: 50°C / 122°F
Various
- Ears included for rack mounting
