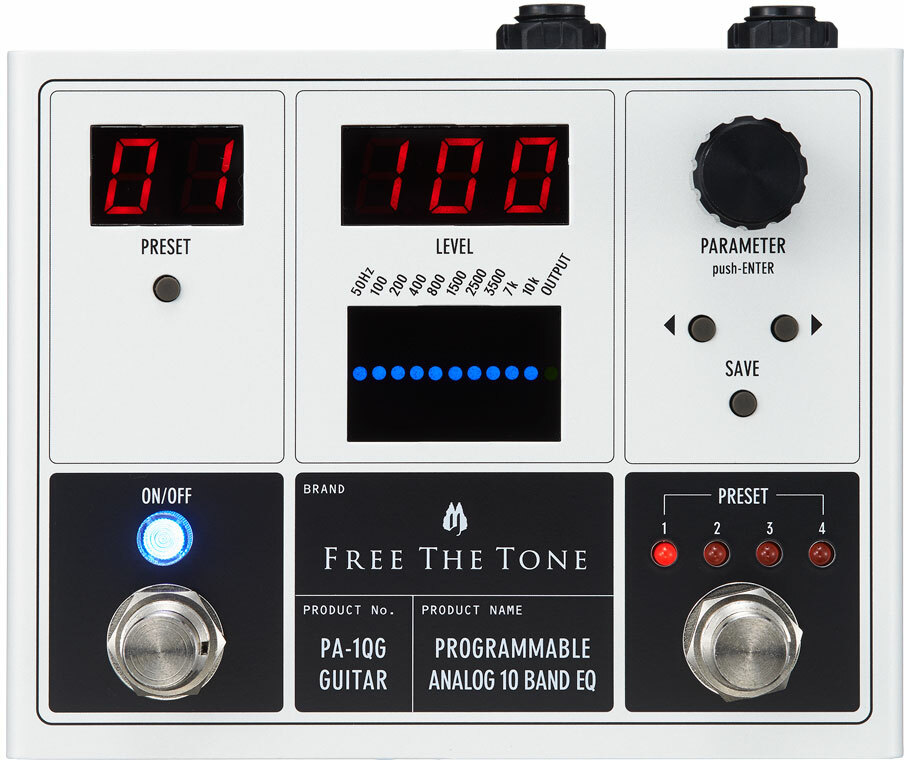

Free the tone PA-1QG Programmable Analog 10 Band EQ
- Read reviews (0)
- Related accessories
- Similar products
VIDEO
VIDEO
- Free delivery
- Low prices guaranteed
- Satisfied or refunded
- 3-years warranty
- Ref : 79263
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go
The brand Free the tone
Learn more about the Free the tone brand and discover the entire catalog.
Guitar and bass effects shopping guide
How to find the processor(s) that correspond to your needs and expectations amongst the hundreds of references currently available?
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.
Eq & enhancer effect pedal
FREE THE TONE PA-1QG Programmable Analog 10 Band EQ guitar pedal integrates digital and analog technologies cultivated through the development of the AMBI SPACE and TRI AVATAR.
Including I/O sections, its equalizer circuits through which the guitar signal pass are all fully analog and contour the rich tones of your guitar as analog signal. This is the same signal processing method you will find in graphic equalizers with conventional slider volume controls. The PA-1QG is an analog effects unit, but its parameter control section is a digital circuit that can precisely store and process the status of various parameters in the digital domain. This enables real-time parameter control via presets and MIDI.
The PA-1QG/PA-1QB is an effects unit that fuses rich analog sound with the ease and versatility of a digital control device while maintaining a high level of sound quality. Experience its state-of-the-art sound and operability for yourself.
Including I/O sections, its equalizer circuits through which the guitar signal pass are all fully analog and contour the rich tones of your guitar as analog signal. This is the same signal processing method you will find in graphic equalizers with conventional slider volume controls. The PA-1QG is an analog effects unit, but its parameter control section is a digital circuit that can precisely store and process the status of various parameters in the digital domain. This enables real-time parameter control via presets and MIDI.
The PA-1QG/PA-1QB is an effects unit that fuses rich analog sound with the ease and versatility of a digital control device while maintaining a high level of sound quality. Experience its state-of-the-art sound and operability for yourself.
Lire la suite
Technical sheet
- FREE THE TONE PA-1QG Programmable Analog 10 Band EQ
- SKU PROG ANALOG EQ
- Programmable analog equalizer for guitar
- Made in Japan
- 2018
- Analog equalizer circuits (including I/O sections)
- Digital parameter control circuit
- 10 frequencies (50 Hz, 100 Hz, 200 Hz, 400 Hz, 800 Hz, 1500 Hz, 2500 Hz, 3500 Hz, 7 kHz, 10 kHz - ±12 dB)
- Controls : cursor keys, PARAMETER encoder, INST(-10dB)/LINE(+4dB) level selector switch
- 99 presets
- 1/4" standard phone jack x 2 (input and output)
- DC9V input jack (for AC adapter)
- DIN 5-pin connector x 2 (MIDI IN and OUT/THRU)
- Power supply via dedicated DC9V AC adapter
- Current consumption max. 200 mA
- (W x D x H) 120 x 102.3 x 58.5 mm or 4.7 x 4.0 x 2.3 inches
- Weight approx. 350 g or 0.77 lbs
- Manual : http://www.freethetone.com/en/manual/PA-1Q_Manual.pdf
