Electric guitar preamp

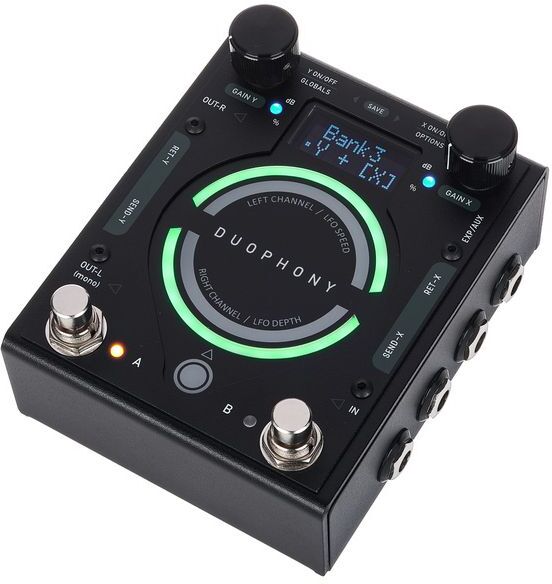

Duophony is a “parallel mixing” pedal. The basic concept of mixing two effects has been taken to the next level by integrating classic signal mixer features with modern functionality and an intuitive user interface. The result is a solid mixing machine, optimized to help you unleash the unexplored ideas of parallel mixing and discover new ways to sculpt a limitless soundscape!
Technical sheet
- Technology Transistors
- Classic signal mixer functions with modern features and an intuitive user interface
- True stereo on all signal paths
- Parallel or serial routing modes
- 3 parallel Blend modes
- 16 presets
- Adjustable dry signal level
- Phase inversion function for Loop X
- Individual gain control for each loop
- Bypass function with or without Trails
- Control input for expression pedal and Aux switch
- MIDI input
- Full modulation unit
- Controls: 2 rotary touch sliders (Mix/Dry Level/Mod Speed ??& Depth), multifunction control Loop Y, multifunction control Loop X
- Touch pushbutton for slider function selection
- 2-line LED display
- Foot switches: A, B
- Mono/stereo input on 6.3 mm stereo jack
- Send & Ret X on 6.3 mm stereo jack
- Send & Ret Y on 6.3 mm stereo jack
- Outputs L & R on 6.3 mm stereo jack mm
- Expo/Aux on 6.3 mm stereo jack
- Current consumption: 150 mA
- Operates with a 9 V DC power supply (2.1 x 5.5 mm barrel plug, negative polarity inside) optional not supplied - suitable power supply 409939
- Dimensions (W x D x H): 120 x 97 x 55 mm
