Active subwoofer

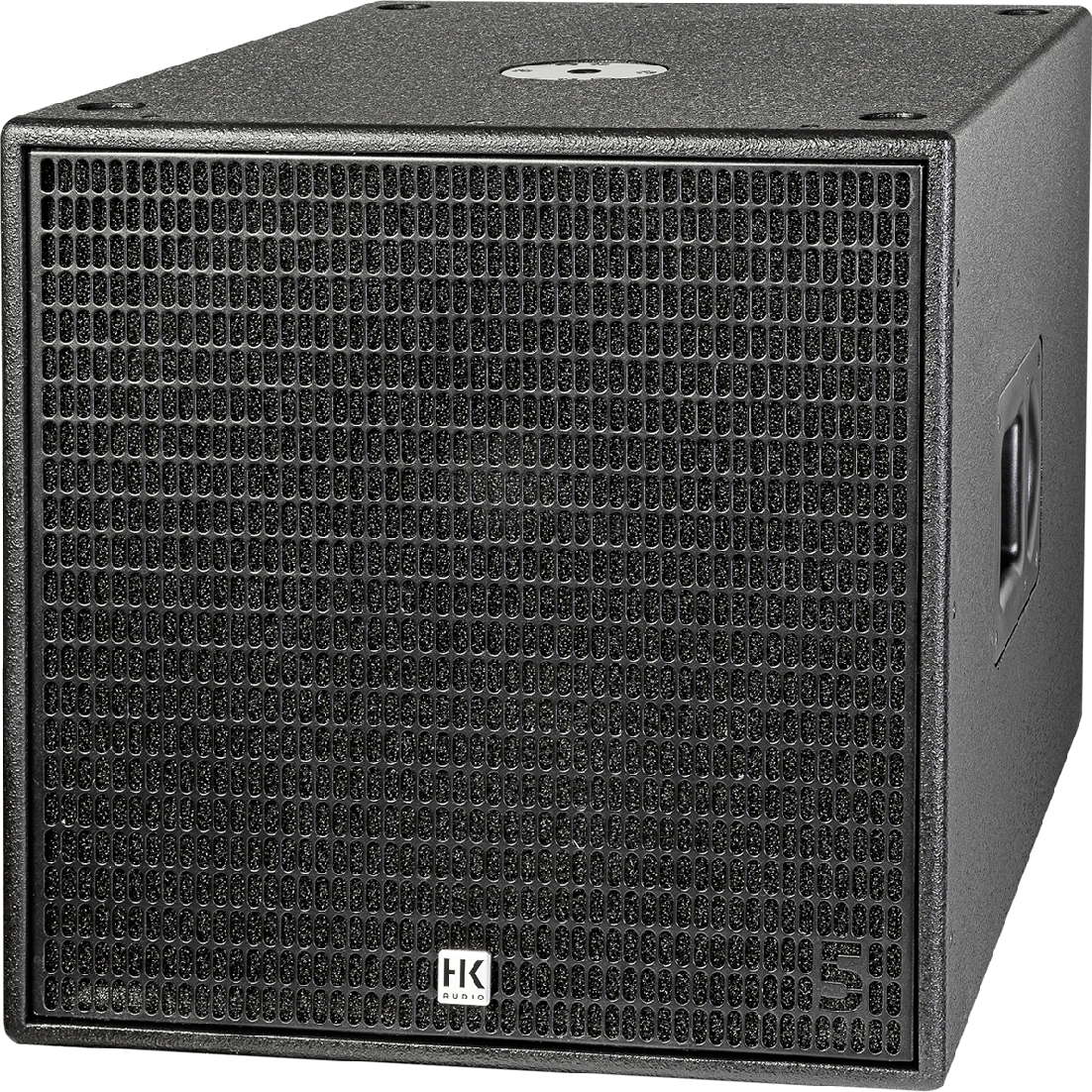

The HK Audio L5MKII 118 SUB A is a 1000W rms powered cabinet.
The new LINEAR 5 MKII series is a completely revised version of the famous LINEAR 5 series. Manufactured in Germany and equipped with the latest technological innovations, it is aimed at professional groups and service providers looking for sophisticated, versatile, flexible and economical tools for their daily activities. One of the major evolutions of the MKII version is the addition of a powerful DSP that can be controlled remotely with dedicated software via an Ethernet connection. The LINEAR 5 MKII can thus be managed in network. Moreover HK has foreseen the possibility of integrating in the network speakers which do not have their own DSP.
The new models are lighter and have smaller dimensions than their predecessors for easier handling.
Two new subwoofers have been developed specifically for setting up systems with optimized performance. They have presets that allow them to be used in cardioid mode.
The new LINEAR 5 MKII series is a completely revised version of the famous LINEAR 5 series. Manufactured in Germany and equipped with the latest technological innovations, it is aimed at professional groups and service providers looking for sophisticated, versatile, flexible and economical tools for their daily activities. One of the major evolutions of the MKII version is the addition of a powerful DSP that can be controlled remotely with dedicated software via an Ethernet connection. The LINEAR 5 MKII can thus be managed in network. Moreover HK has foreseen the possibility of integrating in the network speakers which do not have their own DSP.
The new models are lighter and have smaller dimensions than their predecessors for easier handling.
Two new subwoofers have been developed specifically for setting up systems with optimized performance. They have presets that allow them to be used in cardioid mode.
Lire la suite
Technical sheet
- PA power speaker 1001 to 1500 watts RMS
- Type of PA speaker Stage & FOH monitor
- Amplified : Yes
- Category: sound system
- Connections: Combo, Ethercon, XLR
- Controls: limiter, input gain, mute switch, low pass filter control, polarity switch, delay
- DSP : Yes
- Diameter w/p : 18"
- Dimensions (mm) : 55 x 56 x 68,5 cm
- EQ : 10-band
- Inputs : 2 x XLR/jack combo, RJ45
- Finish : Black
- Weight (kg) : 41,60 kg
- SPL Max / peak : 131 dB
- RMS power / peak : 2 000 W
- RMS power : 1 000 W
- Max SPL : 129 dB
- Outputs : link XLR, XLR DSP
- Cabinet construction : multiply birch - MDF
- Transport : 2 handles
- Type : active subwoofer
- Insert type : 2 x M20
- Additional specs :
- Frequency response +/-3 dB: 42 Hz - cut-off frequency
- Frequency response -10 dB : 38 Hz - cutoff frequency
