Usb audio interface

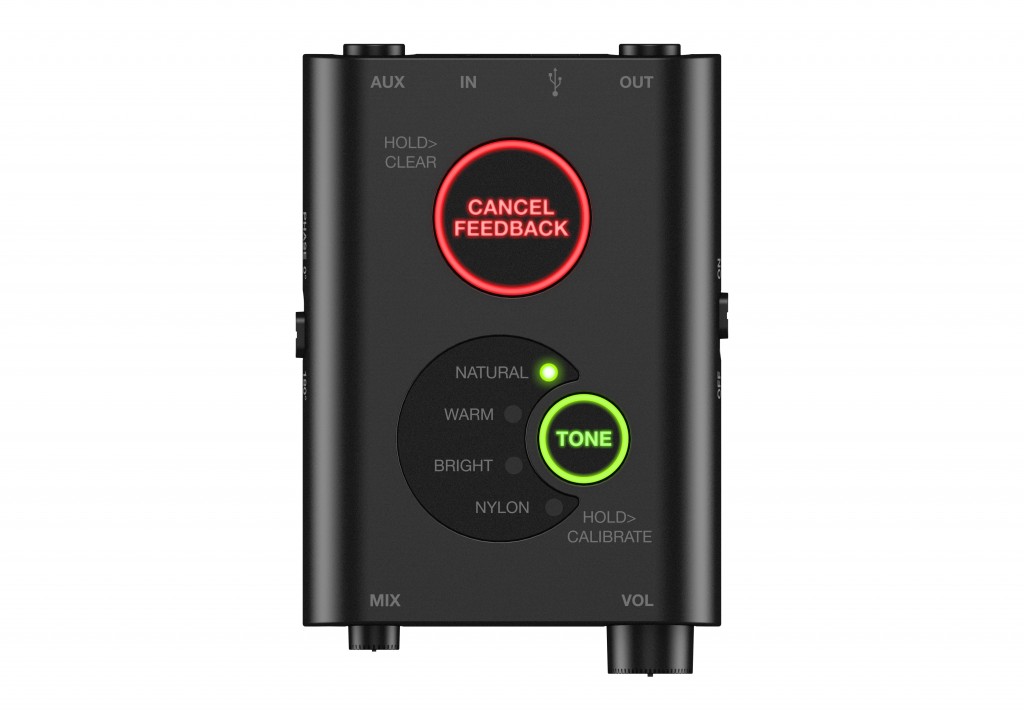

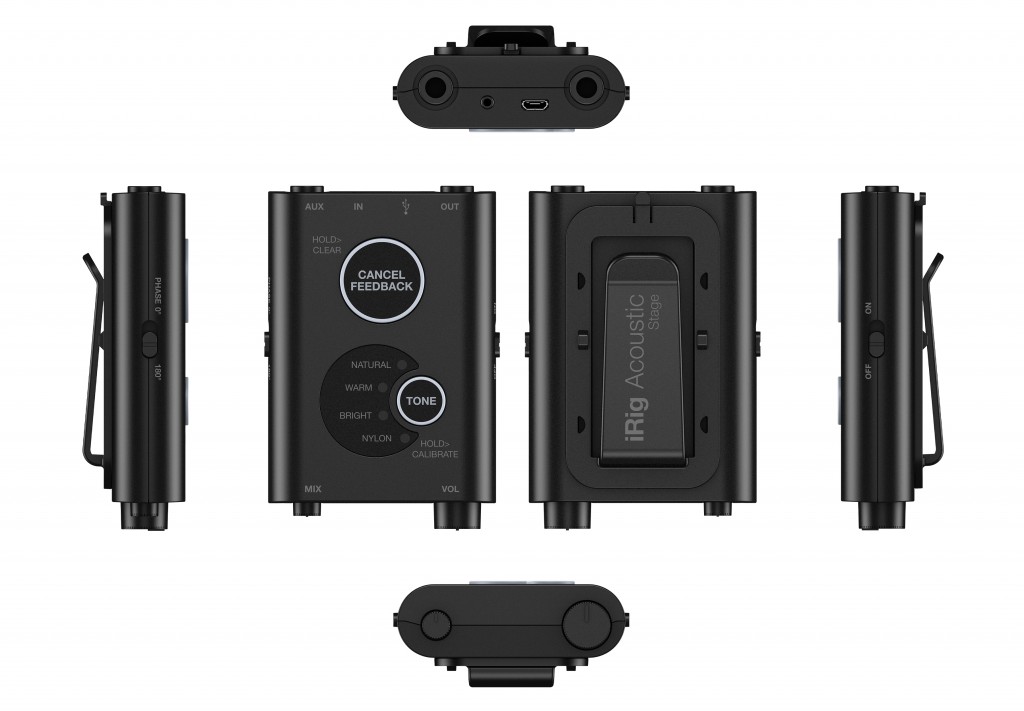

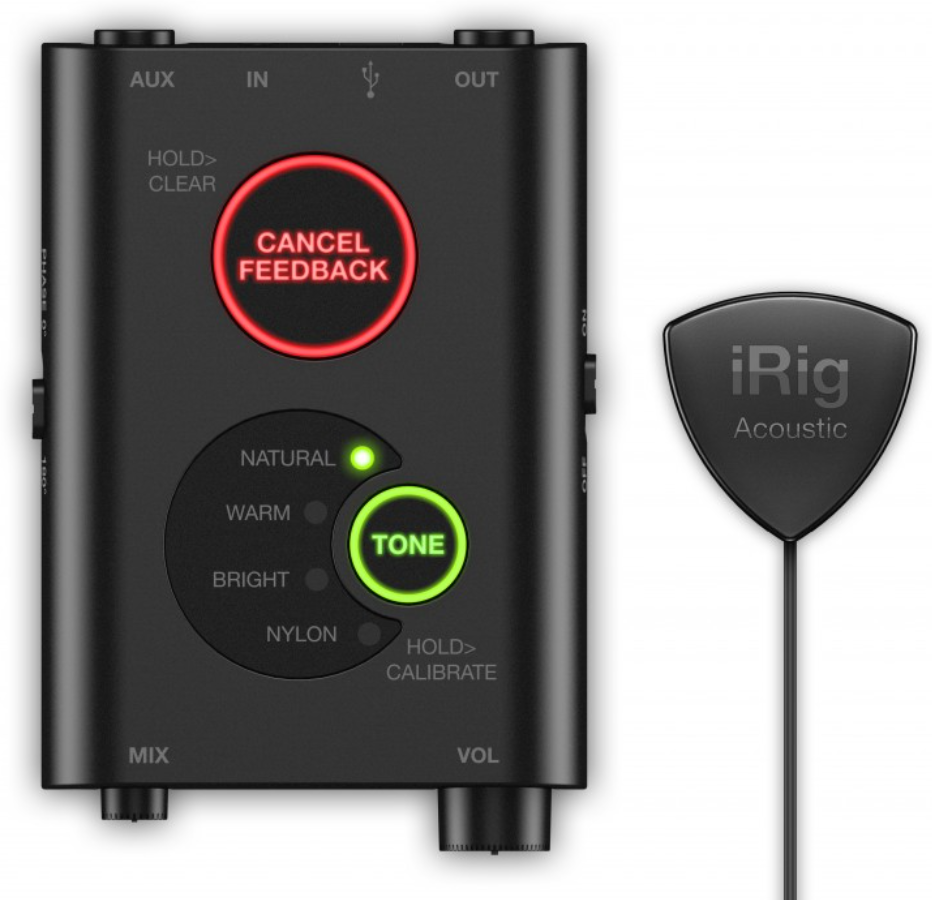

iRig Acoustic Stage uses a patented system composed by an hi-tech MEMS microphone and a preamplifier / processor that includes an advanced digital signal processing component performing multiple functions, from instrument calibration to EQ, to feedback cancel. The microphone that clips on to the soundhole of the guitar and captures all of the “air”, harmonics and sonic nuances of your instrument and playing style that is simply missed with traditional piezo and magnetic pickups. The synergy between the microphone and the 32-bit DSP-based preamp system provides amazingly rich, full-spectrum acoustic sound on stage like never before.

Technical sheet

DSP No

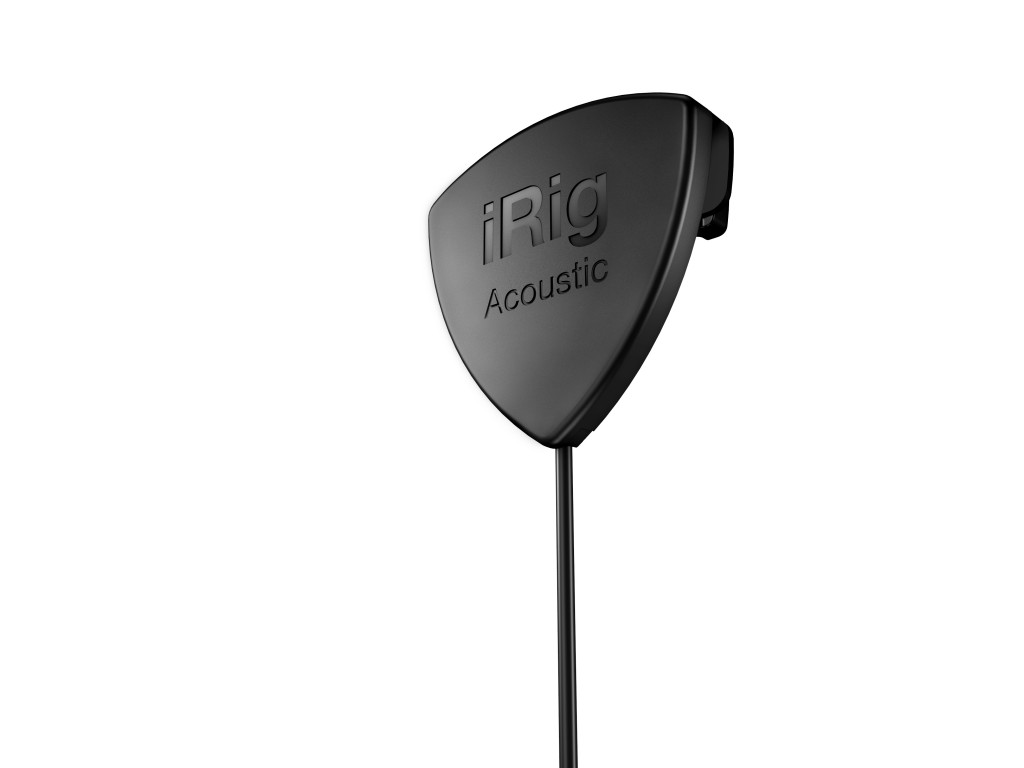

Dedicated iRig Acoustic Microphone
Microphone Type: MEMS
Polar Pattern: omnidirectional
Frequency Response: 30 Hz - 20 kHz, +/-3dB
Max SPL: 130dB SPL
Signal-to-Noise Ratio: 101 dBA
Maximum soundboard thickness: 4mm / 0.16"
Connections
Dedicated iRig Acoustic Microphone Input: 2.5mm / 3/32" TS mono jack
AUX Instrument Input Connector: 6.3mm / 1/4" TS mono jack
AUX Instrument Input Impedance: 11 kOhms (active instruments only)
Analog Output Connector : 6.3mm / 1/4" TS mono jack, line-level, low impedance
Analog Output Impedance: 50 Ohms (can drive long cables without any loss)
Digital Output Connector: micro-USB
DSP/Interface
AD and DA Resolution: 32-bit
Sampling Rate: 48 kHz
Interface Output: USB class compliant audio output via micro-USB port
Power: battery power (2xAA), USB bus power
Battery Life: approximatively 12 hours of continuous usage with alkaline batteries and 15 hours with rechargeable high quality Ni-MH AA cells (2000 mAh and up)
Package
iRig Acoustic Stage DSP/interface
Dedicated iRig Acoustic microphone
Belt clip
Carrying case
2 x 1.5V AA Battery
Dimensions
DSP/Interface size: 101mm/3.98" x 72.3mm/2.85" x 23mm/0.91" (belt clip excluded)
DSP/Interface weight: 99g/3.49oz (batteries excluded)
Microphone size: 31.7mm/1.25" x 32.2mm/1.27" x 18.8mm/0.74"
Microphone weight: 20g/0.71oz
Microphone cable length: 150cm/59.1"
Compatibility
iRig Acoustic Stage can also be used as USB recording interface for Mac/PC, iOS, Android.
