Controller-keyboard

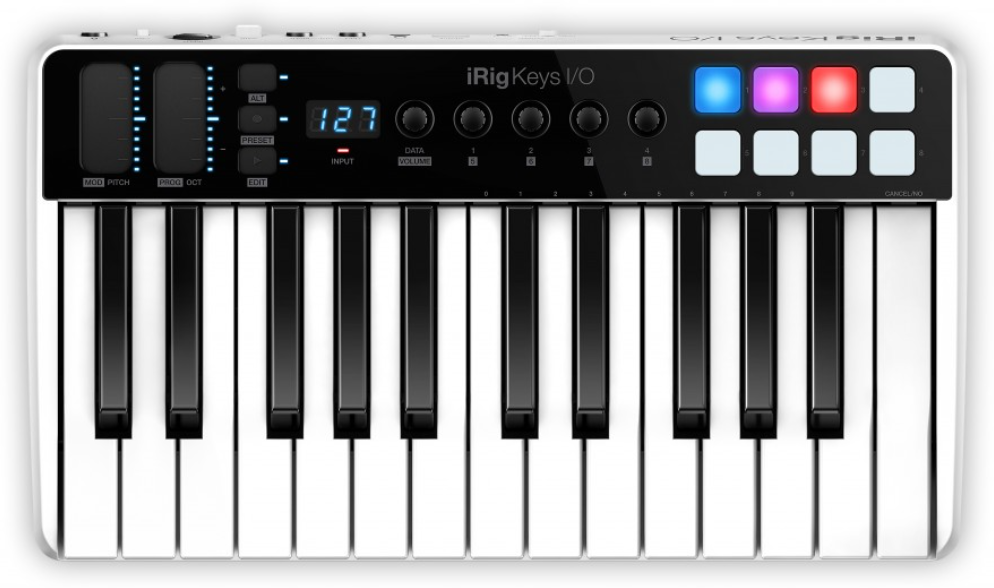

The IK Multimedia iRig Keys i/o 25 is a 25 notes universal MIDI Keyboard, with an integrated audio interface!

The iRig Keys I/O series evolves the concept of traditional controllers as the only one available on the market that integrates 25 or 49 full sized keys together with a fully-fledged professional audio interface featuring 24-bit audio up to 96kHz sampling rate, balanced stereo and headphone outputs, plus a combo input jack for line, instrument or mic input (with Phantom power.)

Technical sheet

Number of keys Less than 49 keys
Touch Light touch

Microphone Input
Microphone Input: balanced female 3-pin, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
Microphone Input Level: from 6 mVpp to 1.4 Vpp
Microphone Input Impedance: 3.2 kOhms
Gain Range: 46 dB
Phantom Power: +48V ± 4V
Frequency Response: 20 Hz - 20 kHz +/-1.5dB
Input Noise: -100 dB RMS
Instrument Input
Instrument Input: unbalanced, Hi-Z, TS 1/4" Jack, Tip: signal / Shield: ground
Instrument Input Level: from 30 mVpp to 6.9 Vpp
Instrument Input Impedance: 1 MOhms
Gain Range: 27 dB
Frequency Response: 20 Hz - 20 kHz +/-1.5dB
Input Noise: -100 dB RMS
Line Output
Line Outputs: 2x balanced, TRS 1/4” Jack, Tip: hot / Ring: cold / Shield: ground
Floating Balanced Outputs with automatic level compensation when working in unbalanced mode
Maximum Output Level: +13 dBu into 600 Ohms balanced load
Frequency Response: from 10 Hz to 21 kHz (+/- 0.2dB)
Output Dynamic Range: 102 dB(A)
Output Impedance: 150 Ohms balanced
Stereo Headphone Output
Connector: 1/8" TRS Jack. Tip: right / Ring: left / Shield: ground
Headphone Level Power 100mW into 50 Ohms
Other Input/Output
DC barrel: 1x DC barrel. For power and device charging.
Device Connector: mini-DIN
External Pedal Input: 1/4" TRS Jack
Common
Conversion: 16 or 24-bit A/D - D/A
Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
Power:
• USB bus powered when used with a computer
• Battery powered (4xAA included) when used with an iOS device
• DC power supply (not included, iRig PSU 3A sold separately)*
Keyboard
Keys: 25 or 49 (depending on the version) full-size keys with velocity
Pads
8 velocity-sensitive multi color assignable pads
Controls
Slider strips for pitch and modulation (user programmable)
Octave, program change and transport
5 programmable touch sensitive encoders
iRig Keys I/O Package includes
iRig Keys I/O 49 or 25 keyboard (depending on the version)
Lightning to Mini-DIN connection cable (60cm/23.62")
USB to Mini-DIN connection cable (60cm/23.62")
iPhone/iPad stand
4 x 1.5V AA Battery
iRig Keys I/O 25 Dimensions
Size: 373mm/14.7" x 208mm/8.2" x 65mm/2.6"
Weight: 1.26kg/2.78lb (batteries excluded)
