Switch pedal
The JHS PEDALS Active A/B/Y is the perfect solution when you need to send one signal to two outputs with the ability to choose either output (or both) on the fly.
Just plug in your instrument cable (or patch cable) into the input, then use the outputs to send signal to any combination of amplifiers, interfaces, mixing board, or anywhere else you want to send your signal. Once hooked up, use the left footswitch to select between A and B channels. When the LED is red, the A channel is engaged. When the LED is green, the B channel is engaged. Hit the right “Y” footswitch to engage BOTH channels for full stereo output. Because the Active A/B/Y has an output transformer on one of the outputs, there is no need for a ground lift as the transformer eliminates any hum.
With an output transformer, FET transistors for completely silent switching, the capability to use one or both outputs simultaneously, the JHS Pedals Active A/B/Y will be the one pedal that you can never leave home without!
Just plug in your instrument cable (or patch cable) into the input, then use the outputs to send signal to any combination of amplifiers, interfaces, mixing board, or anywhere else you want to send your signal. Once hooked up, use the left footswitch to select between A and B channels. When the LED is red, the A channel is engaged. When the LED is green, the B channel is engaged. Hit the right “Y” footswitch to engage BOTH channels for full stereo output. Because the Active A/B/Y has an output transformer on one of the outputs, there is no need for a ground lift as the transformer eliminates any hum.
With an output transformer, FET transistors for completely silent switching, the capability to use one or both outputs simultaneously, the JHS Pedals Active A/B/Y will be the one pedal that you can never leave home without!
Lire la suite
Technical sheet

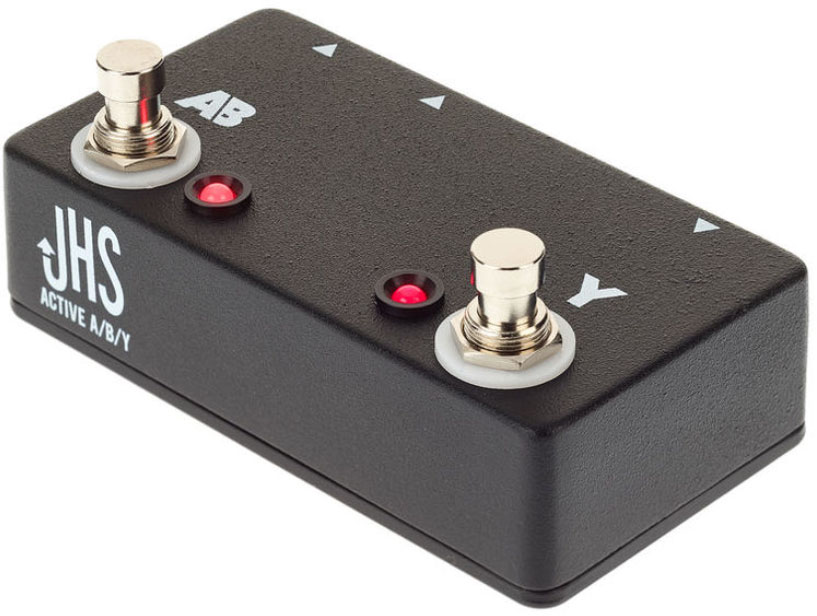

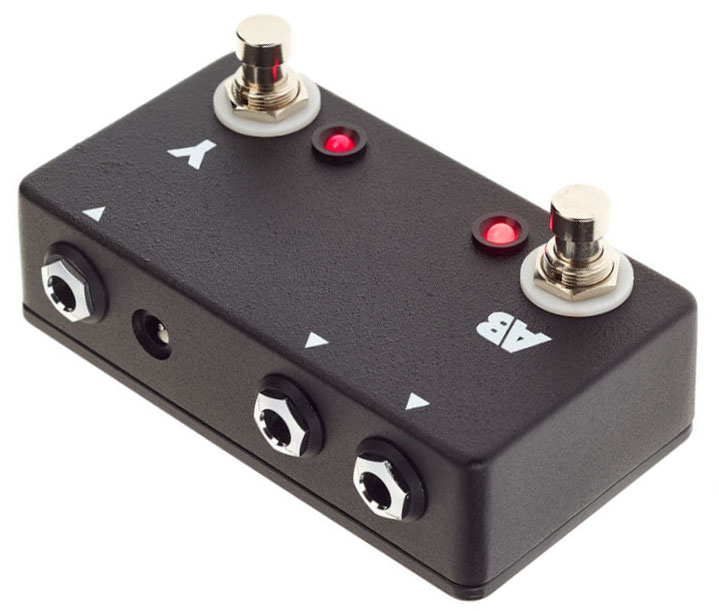

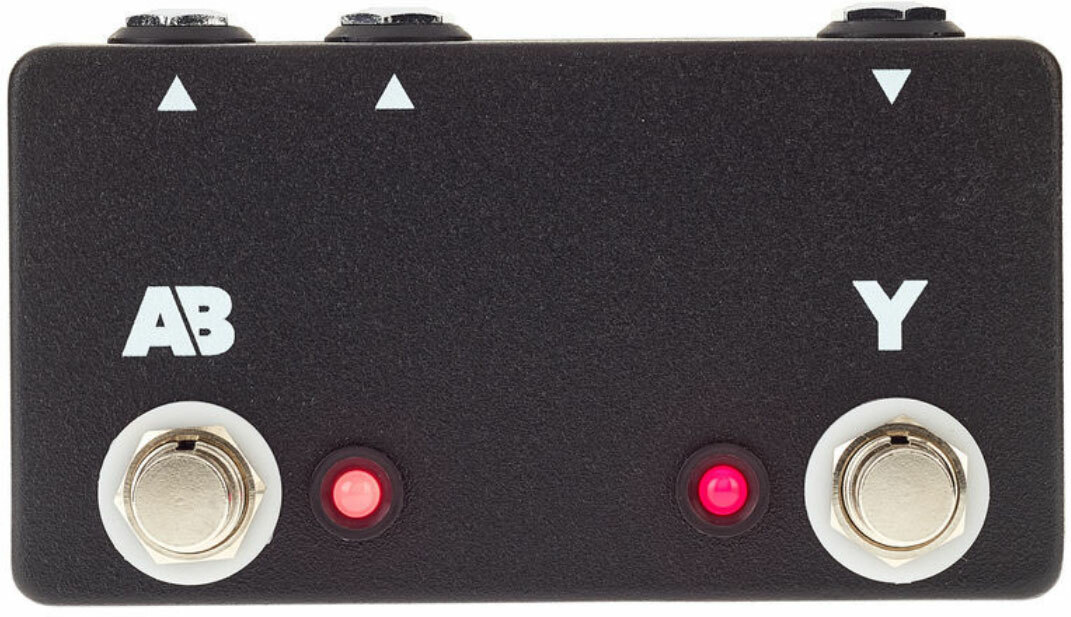

- JHS PEDALS Active A/B/Y
- SKU JHS JHSABY
- For guitar (not compatible with bass)
- Made in USA
- Capability to use one or both outputs simultaneously
- Because the Active A/B/Y has an output transformer on one of the outputs, there is no need for a ground lift as the transformer eliminates any hum
- With an output transformer and FET transistors for completely silent switching
- Powered with optional 9VDC
- Doesn't work with battery
- Curent draw < 100 mA
- 115 x 65 x 51 mm
- 300g
