Power amplifier stereo

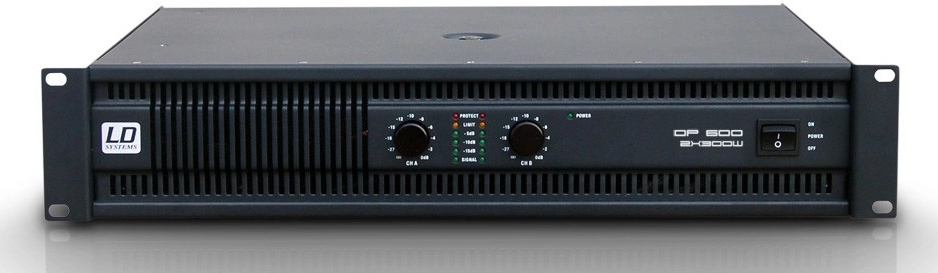

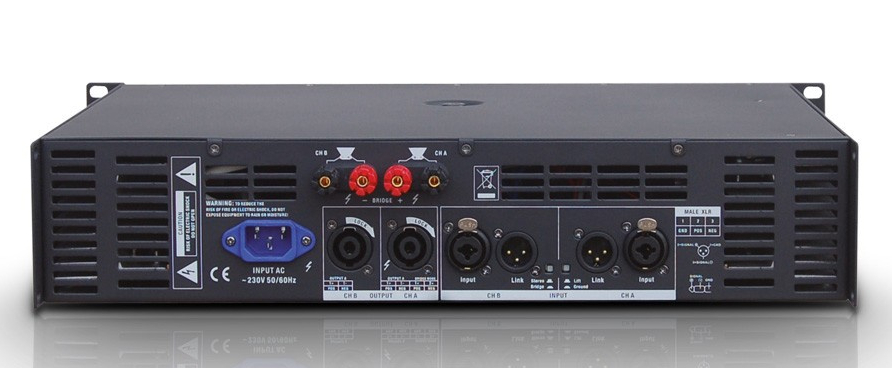

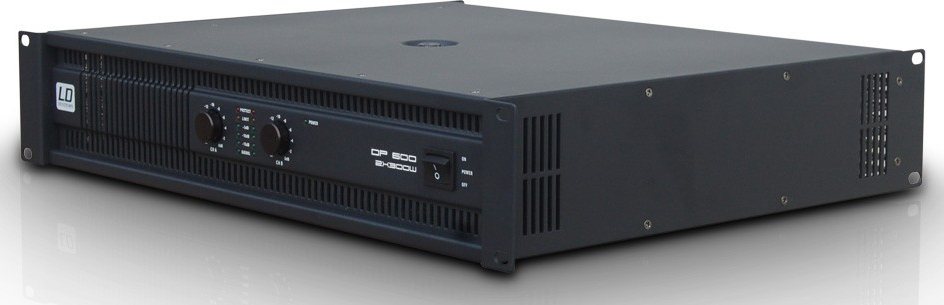

The LD systems Deep2 600 is a 2 x 300 W 2 Ohm Sound Amplifier.
The new DEEP2 series of amplifiers comprises four class H power amplifiers with toroidal cores offering amplification levels from 2 x 400 W to 2 x 810 W at 4 Ohm. During the development of this series, we attached great importance to the reliability and durability of the amplifiers in continuous operation, which is why we used only selected high-end components for the construction of these products.
The new DEEP2 series of amplifiers comprises four class H power amplifiers with toroidal cores offering amplification levels from 2 x 400 W to 2 x 810 W at 4 Ohm. During the development of this series, we attached great importance to the reliability and durability of the amplifiers in continuous operation, which is why we used only selected high-end components for the construction of these products.
Lire la suite
Technical sheet
- PA power amplifier Above 600 watt RMS
- Type of product
- Amplifiers
- Type
- Amplifiers
- Output power (at 1 kHz, on 2 Ohms)
- 2 x 300 W
- Output power (at 1 kHz, into 4 Ohms)
- 2 x 400 W
- Output power (at 1 kHz, into 8 Ohms)
- 2 x 300 W
- Power output (1 kHz @ 4 Ohms, Bridge mode)
- 600 W
- Power output (at 1 kHz, on 8 Ohms, Bridge mode)
- 800 W
- Switching type
- Class H
- Frequency response
- 20 - 20000 Hz
- Distortion (THD)
- < 0,1 %
- Signal to noise ratio
- 105 dB
- Damping factor (20Hz-500Hz @8ohm)
- >400
- Crosstalk
- >80 dB
- Power Amplification (Gain)
- 35 dB
- Input sensitivity
- 0,75 V
- Protection circuits
- Short circuit, Peak limiter, DC component protection, Over temperature
- Settings
- 2 x volume control, Mains switch (On/Off), Ground Lift, Bridge/Stereo mode selector
- Indicators
- Limit, Level, Power, Protect (protection circuit activated), Signal
- Speaker Outputs
- 2
- Speaker output connectors
- Terminal blocks, Speakon compatible
- Cooling
- High efficiency, automatic
- Mains voltage
- Transformer
- Mains voltage
- 230 volts / 50-60 Hz
- Weight
- 12.8 kg (44 lbs)
- Features
- Volex mains connector
