Active subwoofer

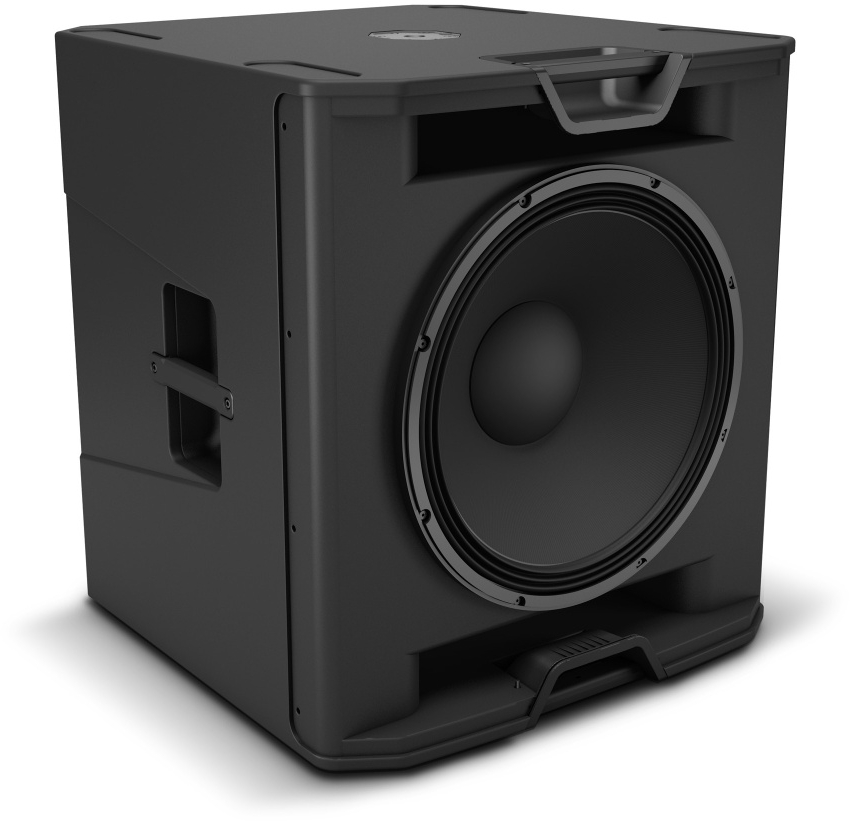

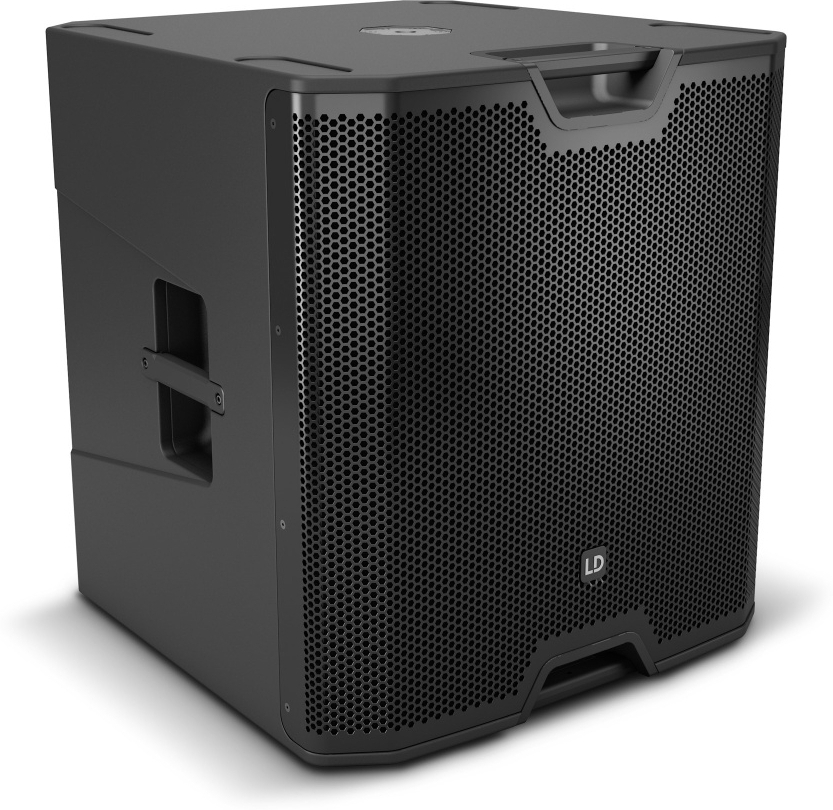

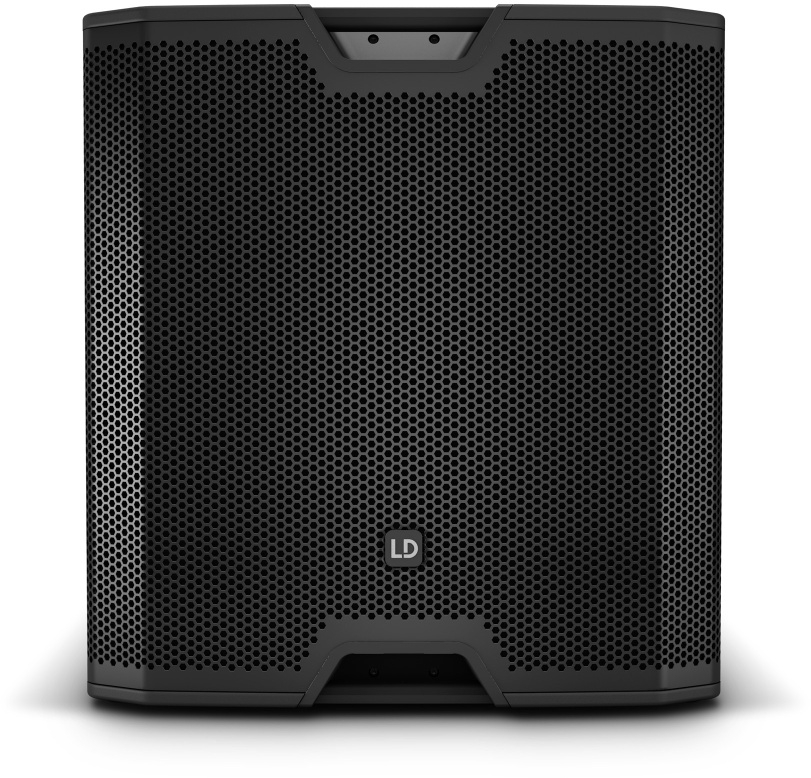

The LD Systems ICOA SUB 18A is an 18" active bass-reflex cabinet.
Impressive 18" subwoofer in the low end of the audio spectrum up to 29 Hz
Maximum SPL of 133 dB and PEAK power of 2400 W thanks to a digital class D amplifier
optimised bass reflex openings
DSP DynX with 4 presets (3 crossover frequencies, cardioid mode)
Changeable signal polarity and adjustable line delay up to 10 m
2 combined inputs (jack/XLR), 2 XLR outputs
Solid 18 mm multi-ply housing with durable front grille
4 aluminium handles with ergonomic rubberised surface for easy handling
Ideal stacking capacity thanks to 4 stacking slots
M20 thread for fitting a spacer bar
Impressive 18" subwoofer in the low end of the audio spectrum up to 29 Hz
Maximum SPL of 133 dB and PEAK power of 2400 W thanks to a digital class D amplifier
optimised bass reflex openings
DSP DynX with 4 presets (3 crossover frequencies, cardioid mode)
Changeable signal polarity and adjustable line delay up to 10 m
2 combined inputs (jack/XLR), 2 XLR outputs
Solid 18 mm multi-ply housing with durable front grille
4 aluminium handles with ergonomic rubberised surface for easy handling
Ideal stacking capacity thanks to 4 stacking slots
M20 thread for fitting a spacer bar
Lire la suite
Technical sheet
- PA power speaker 301 to 600 watts RMS
- Type of PA speaker FOH speaker
- Type of product
- PA subwoofer
- Type
- Active
- Woofer/midrange diameter
- 18 "
- Boomer diameter
- 457.2 mm
- Boomer magnet
- Ferrite
- Boomer brand
- Custom made
- Boomer coil
- 4 "
- Boomer coil (mm)
- 100 mm
- Amplifier
- Class D
- Power (rms)
- 600 W
- Power (peak)
- 2400 W
- Frequency response (-10dB)
- 29Hz Depends on preset
- Maximum SPL (peak)
- 133dB
- Protection circuits
- Limiter activation, Excursion Limiter, Overload, Overtemperature, Overvoltage
- Settings
- encoder/key
- Indicators
- LC display
- Line inputs
- 2
- Line input connectors
- XLR/6.3mm combo jacks (balanced)
- Line outputs
- 2
- Line output connectors
- XLR
- Mains voltage
- 100 - 240 V
- Power consumption (max)
- 675 W
- Operating temperature
- 0 - 40 °C
- Relative humidity
- < 60%, non-condensing
- Enclosure material
- 18 mm Multiplex
- Enclosure surface
- Structured lacquer paint
- Enclosure finish
- Bass Reflex
- Width
- 626 mm
- Height (mm)
- 672mm
- Depth
- 637 mm
- Weight
- 44.3 kg (44.2 lbs)
