Active subwoofer

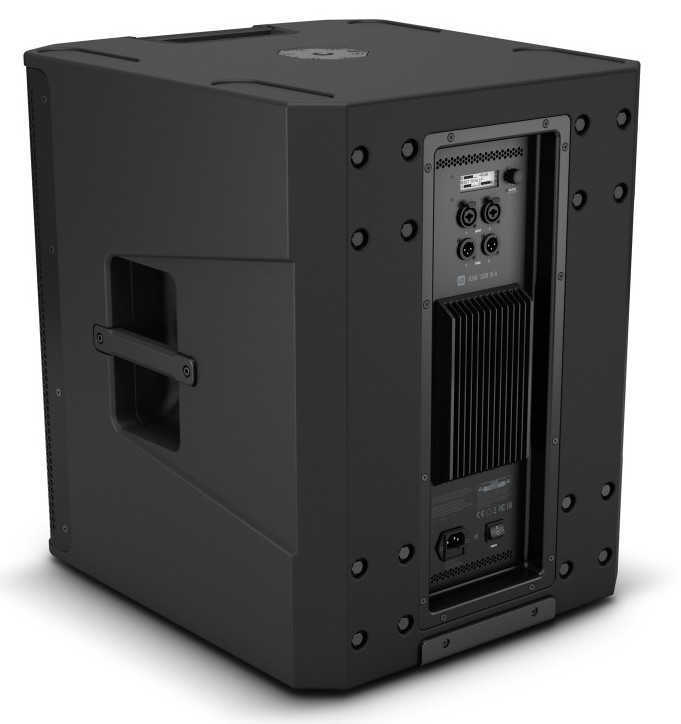

The Ld systems ICOA Sub 15a is an amplified sound system.

15" subwoofer impresses at the low end of the audio spectrum up to 36 Hz
Max SPL of 131 dB and PEAK power of 1600 W thanks to a class D digital amplifier
Optimized Bass Reflex openings
4-preset DynX DSP (3 crossover frequencies, cardioid mode)
Changeable signal polarity and adjustable Line Delay up to 10 m
2 combined inputs (jack/XLR), 2 XLR outputs
Robust 18mm plywood casing with durable front grille
Easy handling thanks to 4 aluminum handles with ergonomic rubberized surface
Ideal stacking capacity thanks to 4 stacking notches
M20 thread for mounting a spreader bar.

Technical sheet

PA power speaker 1501 to 2000 watts RMS
Type of PA speaker Stage & FOH monitor

Type of product
PA subwoofer
Kind
Active
Diameter woofer/midrange
15"
Boomer Diameter
381mm
Boomer magnet
Ferrite
boomer brand
Custom made
woofer coil
3"
Woofer coil (mm)
76.5mm
Amplifier
Class D
Power (effective)
400W
Power (peak)
1600W
Response frequency (-10dB)
36Hz Dependent on preset
Maximum SPL level (peak)
131dB
Protective circuits
limiter activation, Excursion Limiter, RMS Limiter, Overload, Overheat, Overvoltage
Settings
encoder/button
Indicators
LCD screen
Line inputs
2
Line Input Connectors
XLR/6.3mm jack combo jacks (balanced)
Line outputs
2
Line output connectors
XLR
Mains voltage
100 - 240 V
Power consumption (max)
675W
Operating temperature
0 - 40°C
Relative humidity rate
< 60%, non-condensing
Box material
18mm Multiplex
Surface of the box
Structured lacquer paint
Box finish
Bass Reflex
Width
510mm
Height (mm)
598mm
Depth
552mm
Weight
32.5kg
