Ld systems MON 8 A G3 W

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Ld Systems Mon 8 A G3 W - Active full-range speaker - Main picture
  • Ld Systems Mon 8 A G3 W - Active full-range speaker - Variation 1
  • Ld Systems Mon 8 A G3 W - Active full-range speaker - Variation 2
  • Ld Systems Mon 8 A G3 W - Active full-range speaker - Variation 3
  • Ld Systems Mon 8 A G3 W - Active full-range speaker - Variation 4
  • Ld Systems Mon 8 A G3 W - Active full-range speaker - Variation 5
  • Ld Systems Mon 8 A G3 W - Active full-range speaker - Variation 6
  • Ld Systems Mon 8 A G3 W - Active full-range speaker - Variation 7
  • Ld Systems Mon 8 A G3 W - Active full-range speaker - Variation 8
  • Ld Systems Mon 8 A G3 W - Active full-range speaker - Variation 9
  • Ld Systems Mon 8 A G3 W - Active full-range speaker - Variation 10
  • Ld Systems Mon 8 A G3 W - Active full-range speaker - Variation 11
  • Ld Systems Mon 8 A G3 W - Active full-range speaker - Variation 12
  • Ld Systems Mon 8 A G3 W - Active full-range speaker - Variation 13
  • 475.00 €
  • Ref : 114667
468,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
Pre-order
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go

The brand Ld systems

Learn more about the Ld systems brand and discover the entire catalog.

How to choose your PR System Buying guide

Power, loudspeaker size, price, efficiency, dimensions, passive or active version... Choosing a loudspeaker is no easy task! In this guide, you will find several ways to help you make your choice acco

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Active full-range speaker

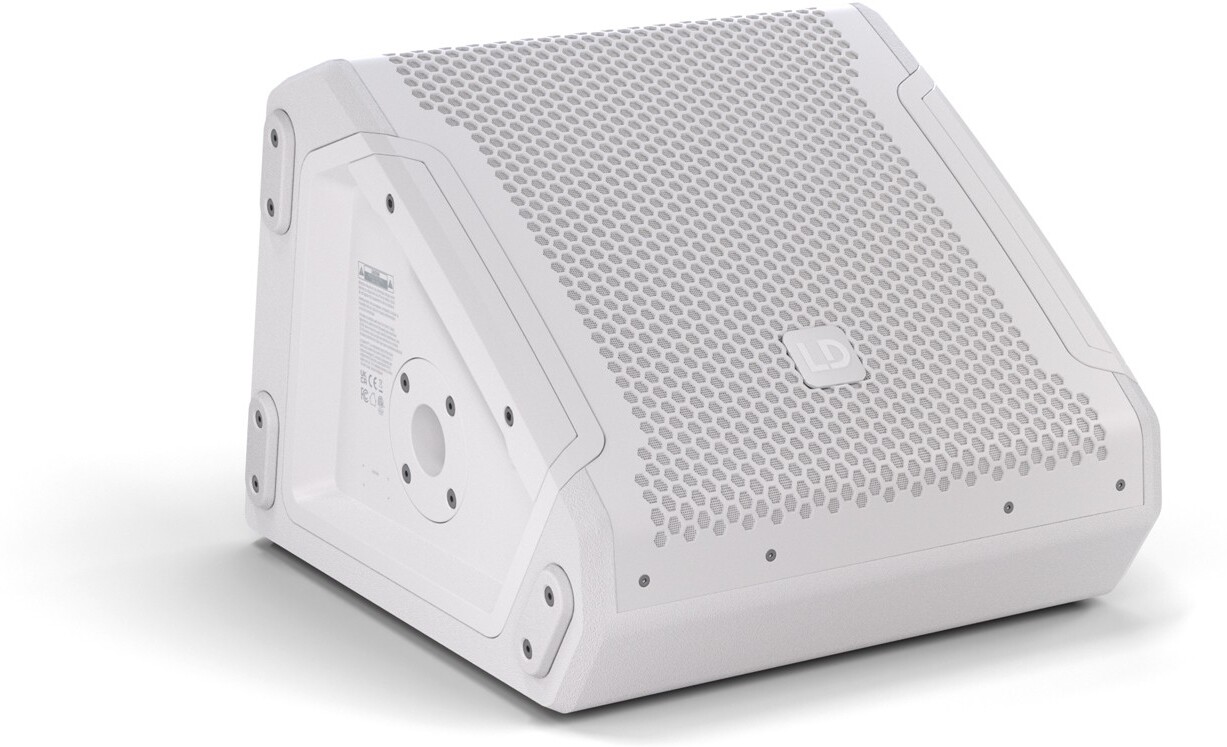

The MON 8 A G3 W is part of an entirely new family of high-performance powered stage monitors.

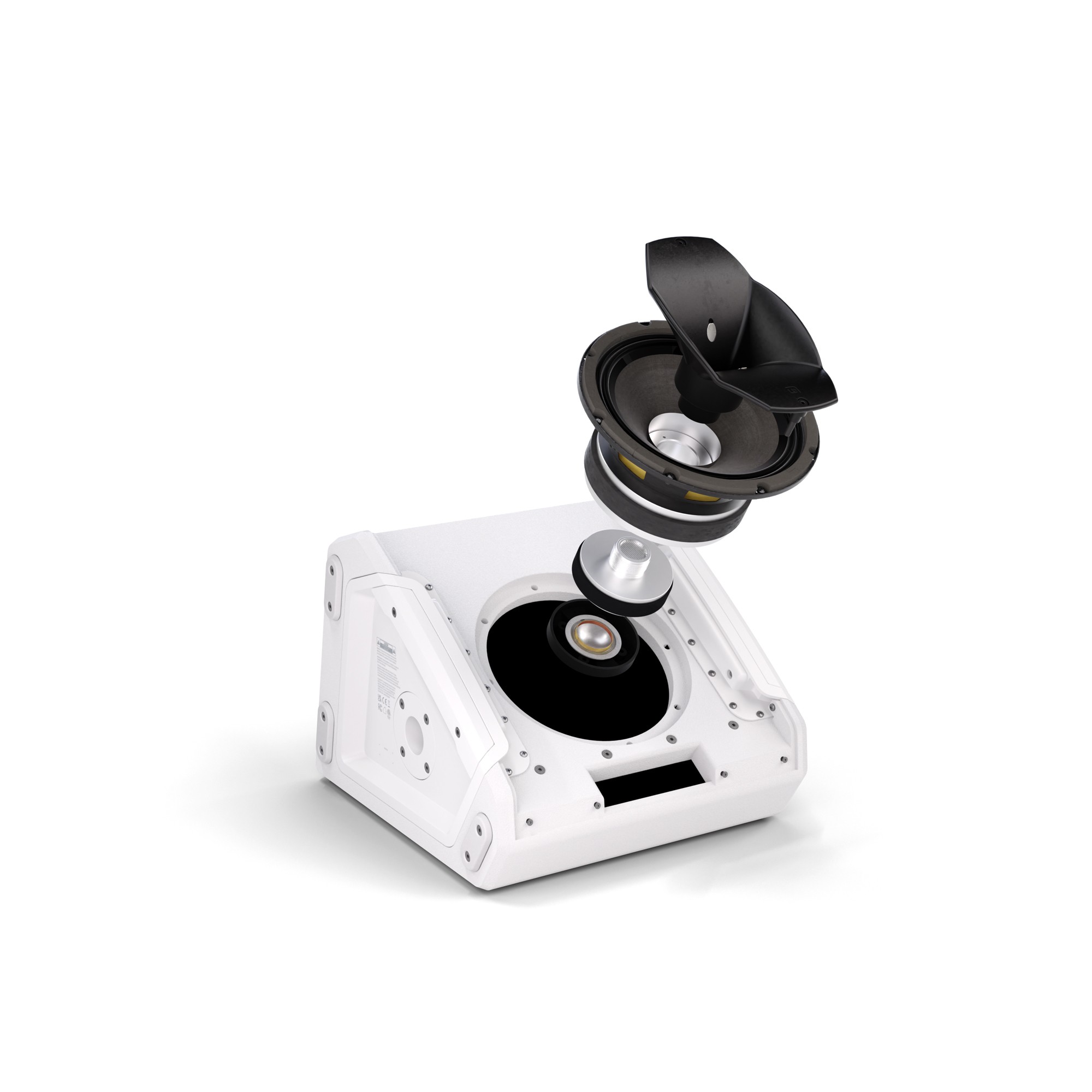

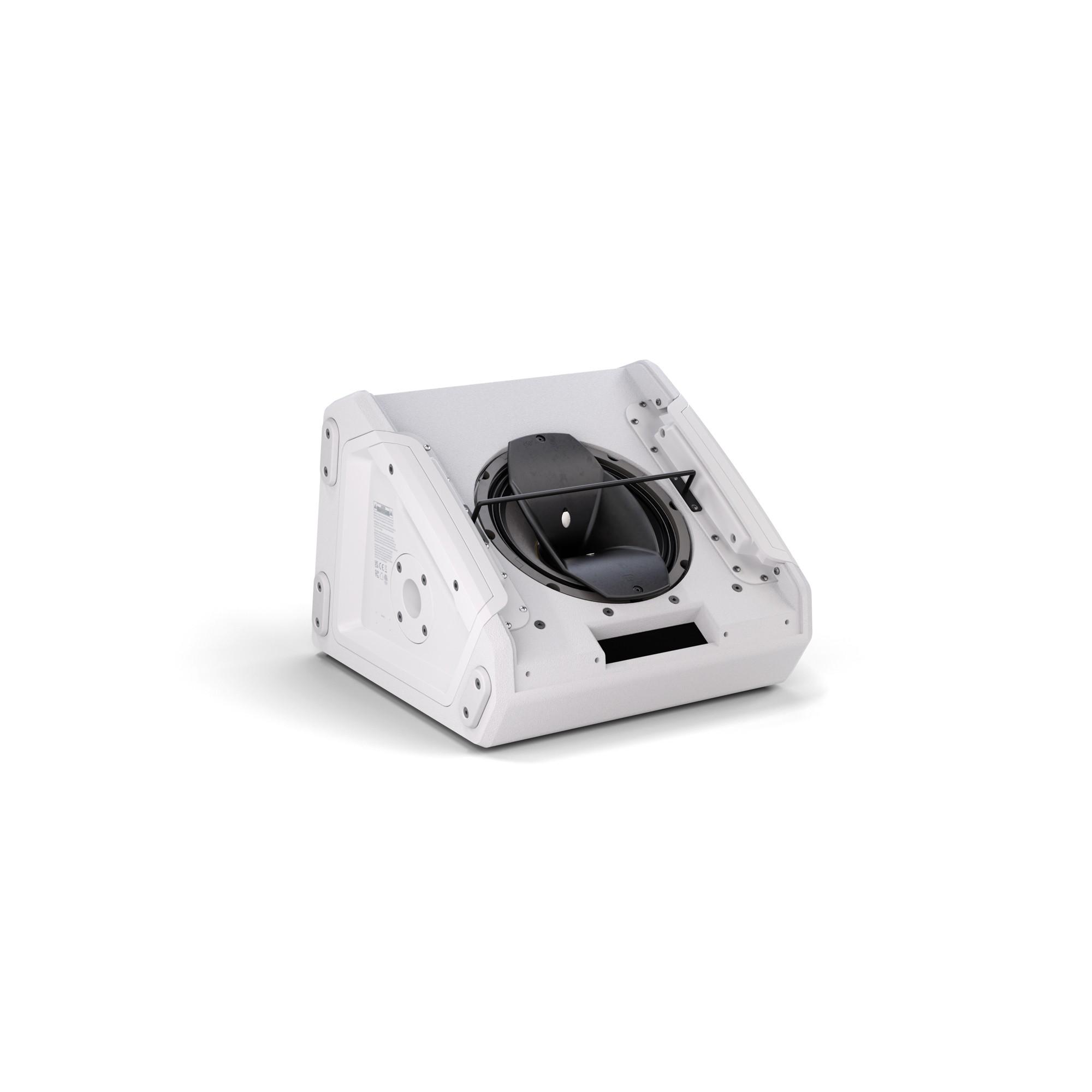

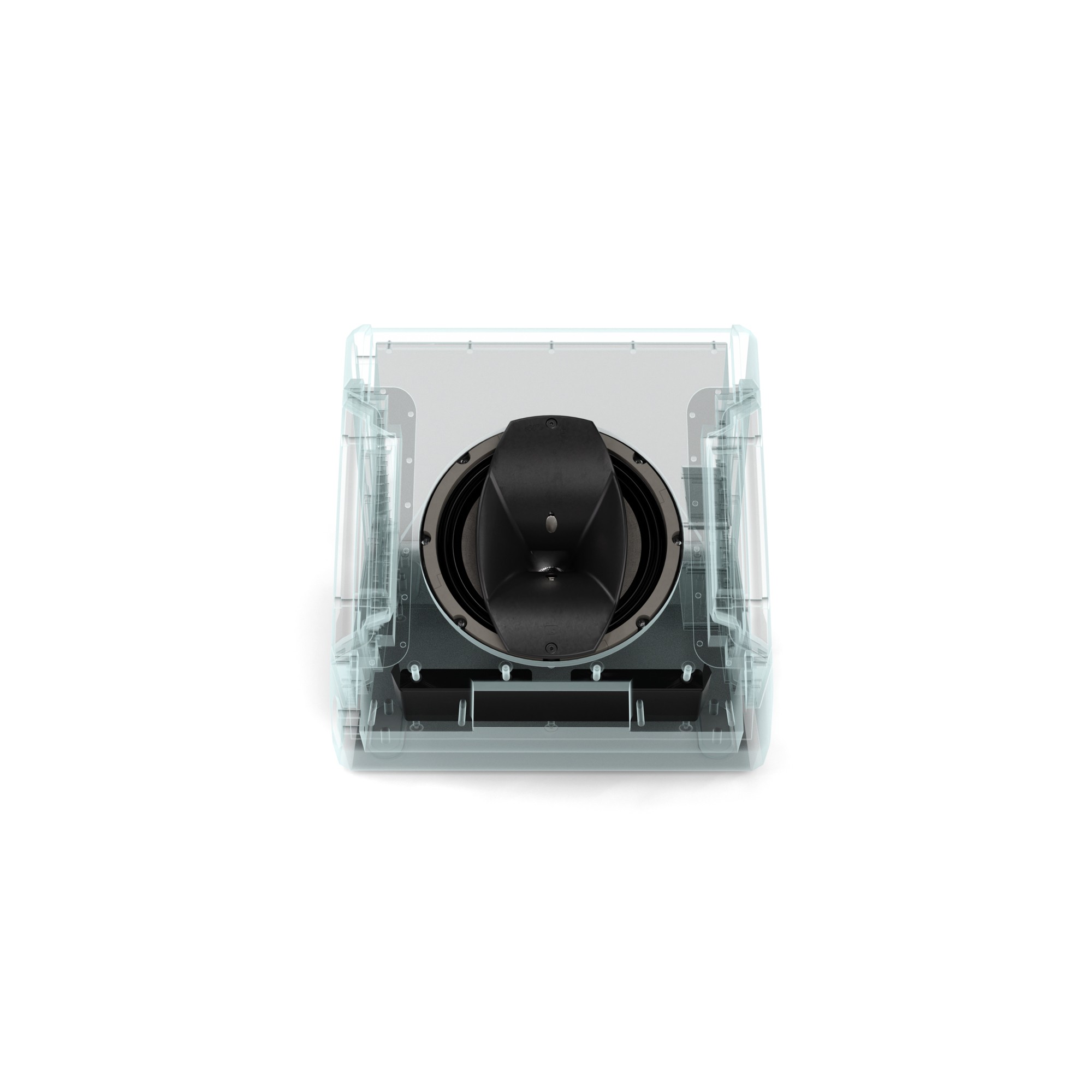

The MON G3 series integrates the cutting-edge technology and uncompromising materials used in high-end monitors typically used in professional rentals, and makes this quality available to everyone. For example, the advanced coaxial drivers, equipped with a 50° x 90° constant directivity horn: they are a true point source, an acoustically ideal solution, guaranteeing exceptional audio performance, even in close listening. In addition, the series offers a high level of robustness, a comprehensive feature set and the elegant look of LD systems.

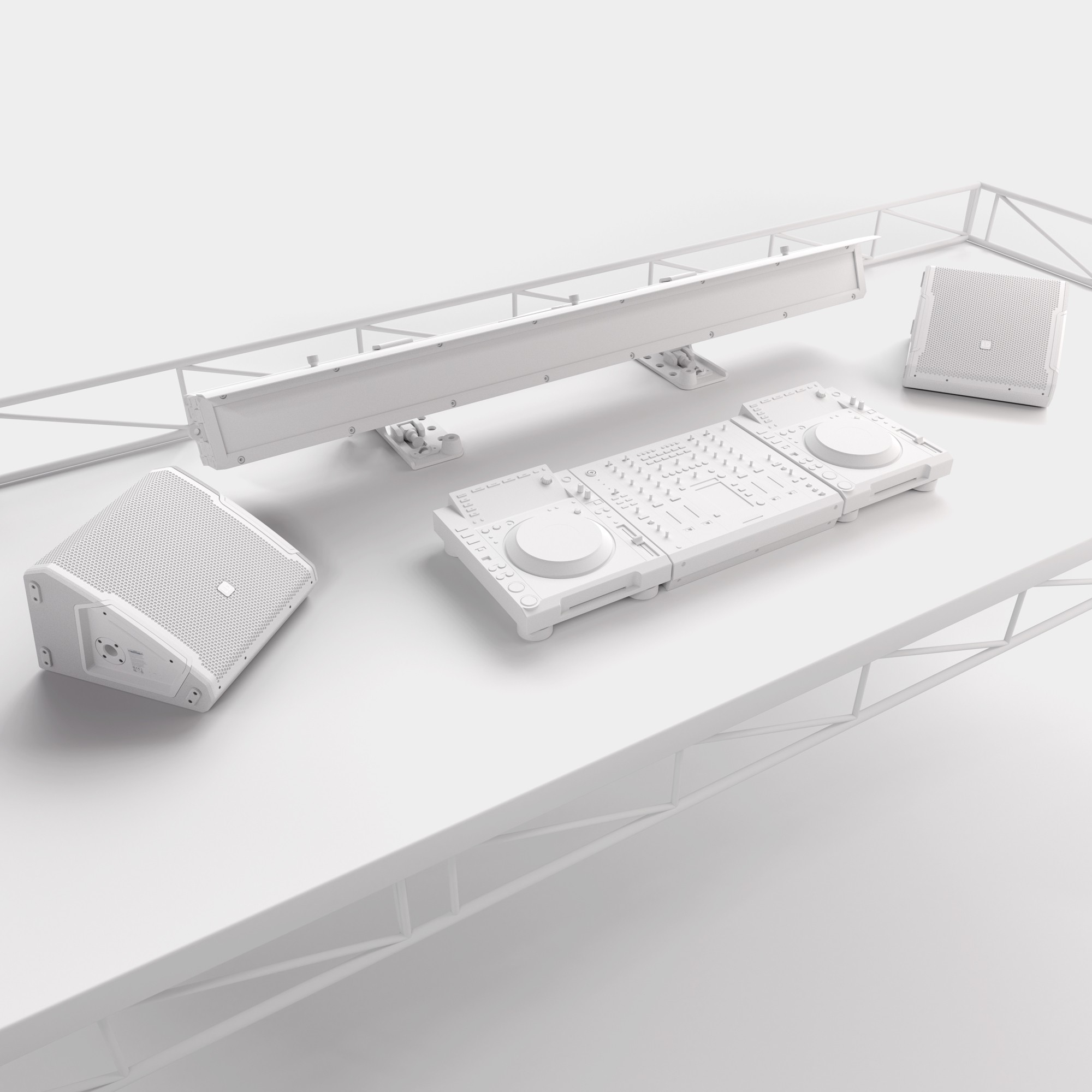

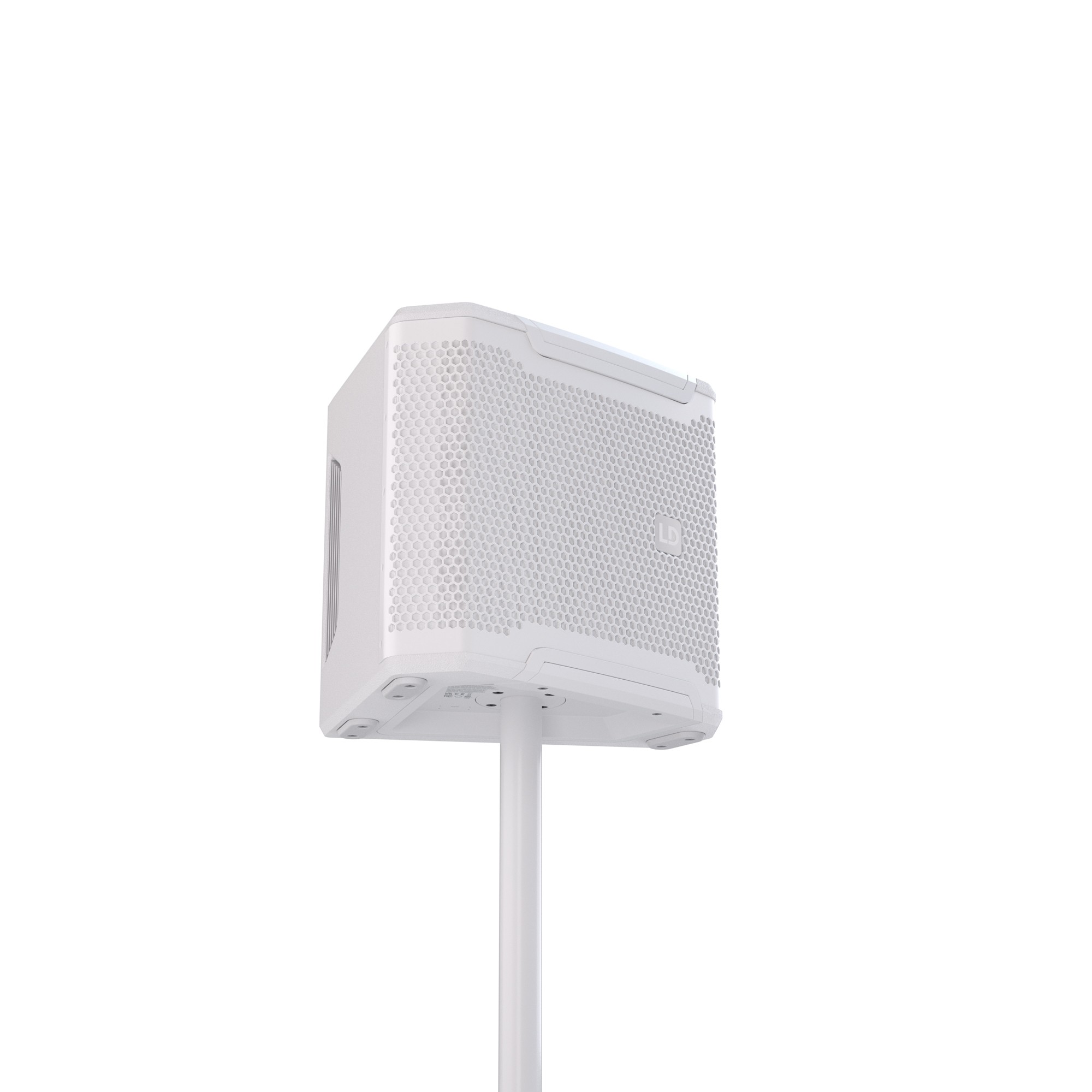

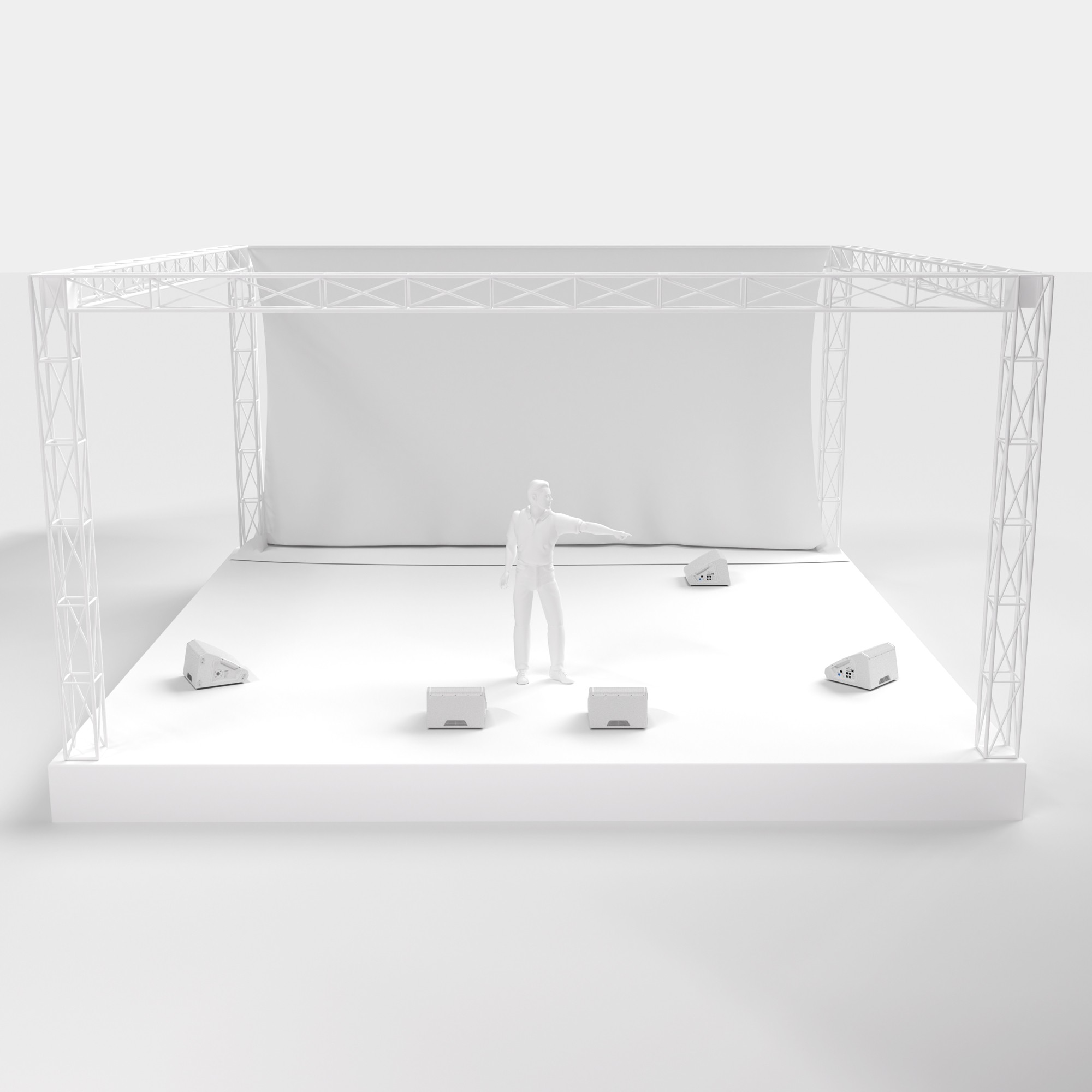

As the smallest member of the new family of stage monitors, the MON 8 A G3 W is particularly discreet and versatile in use: as a stage monitor, in a DJ setup or on a speaker stand, as a front-of-house speaker, as a satellite in 2.1 systems or as a delay line speaker. The frequency response of the MON 8 A G3 W goes down to 59 Hz, an unusually low value considering its dimensions; this is called full-range reproduction.

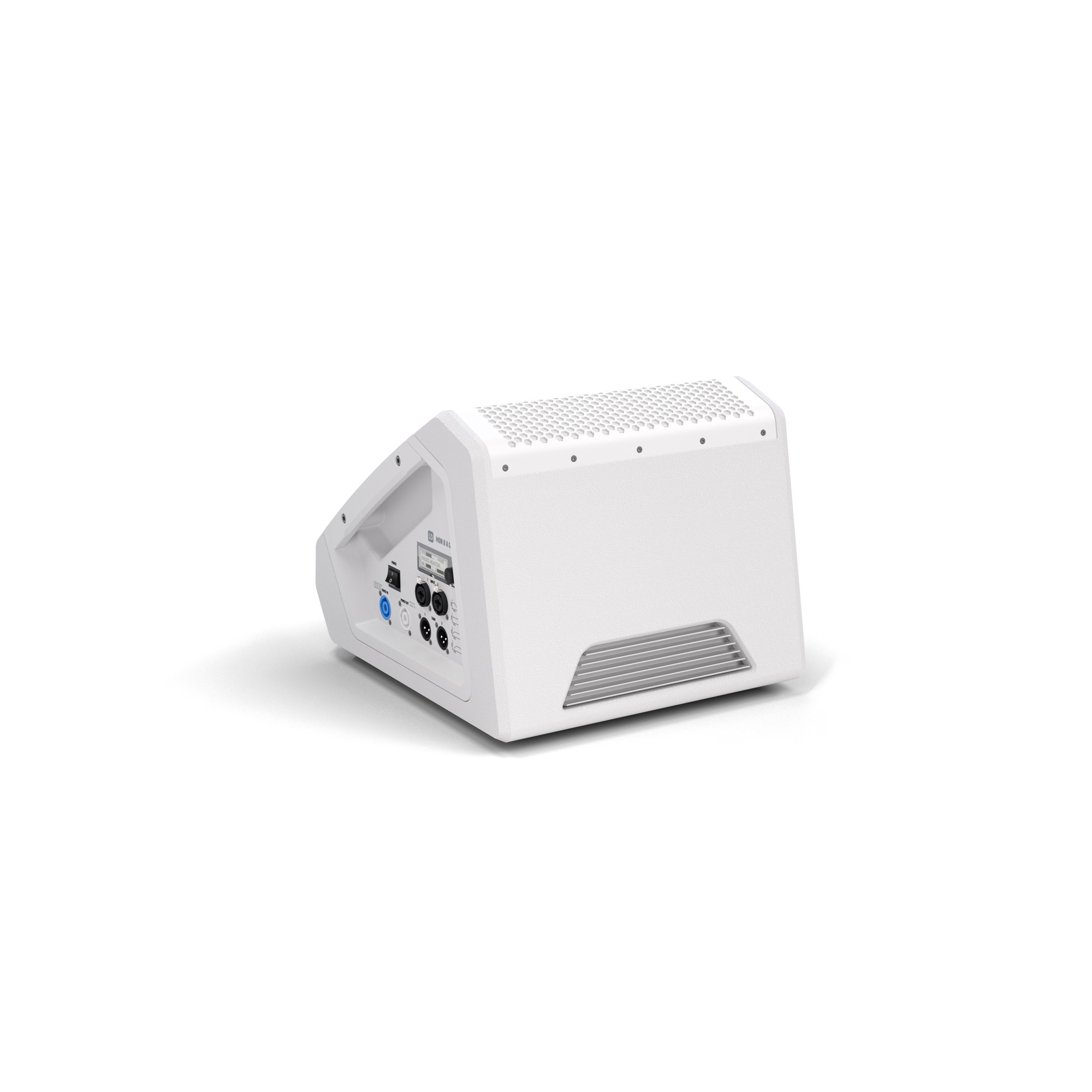

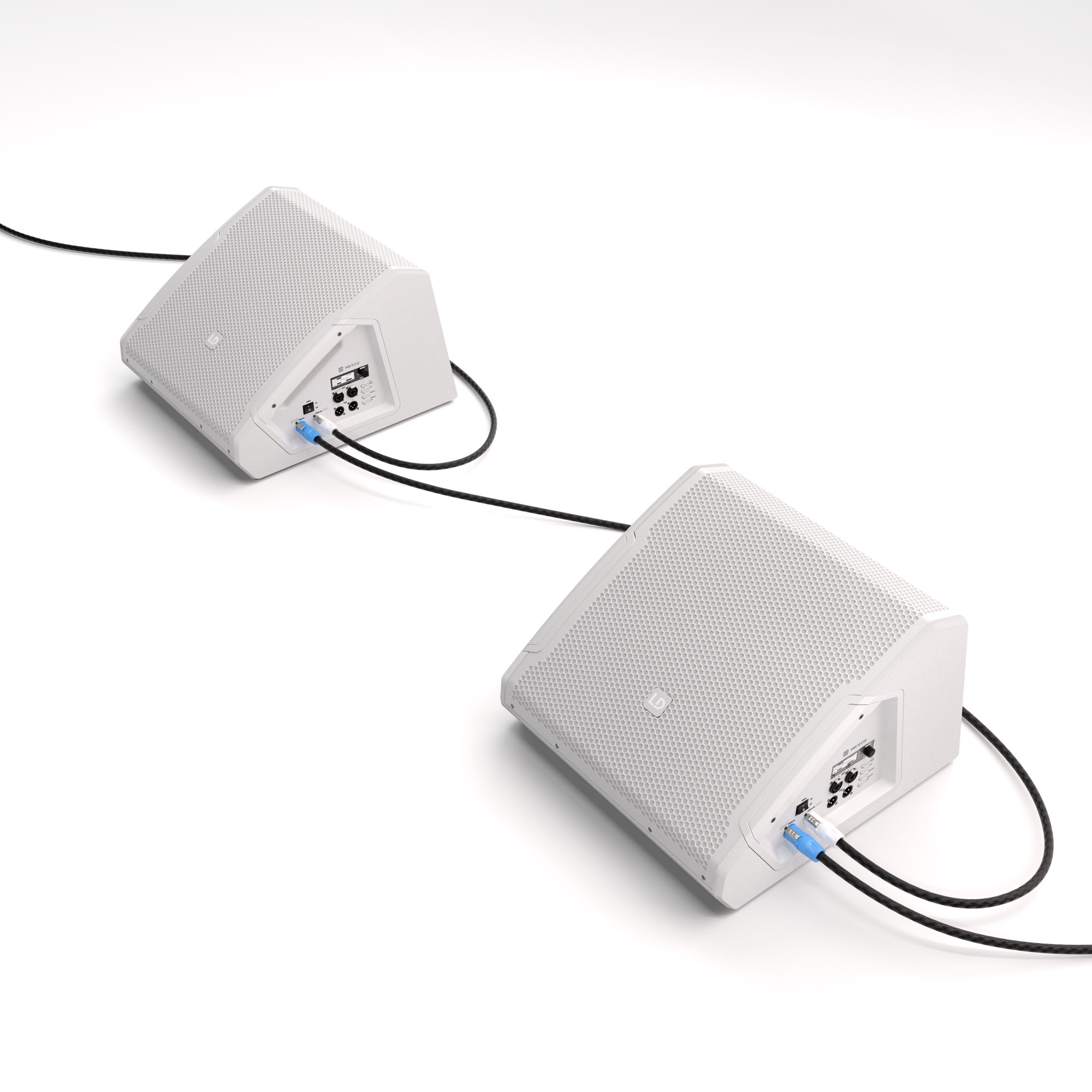

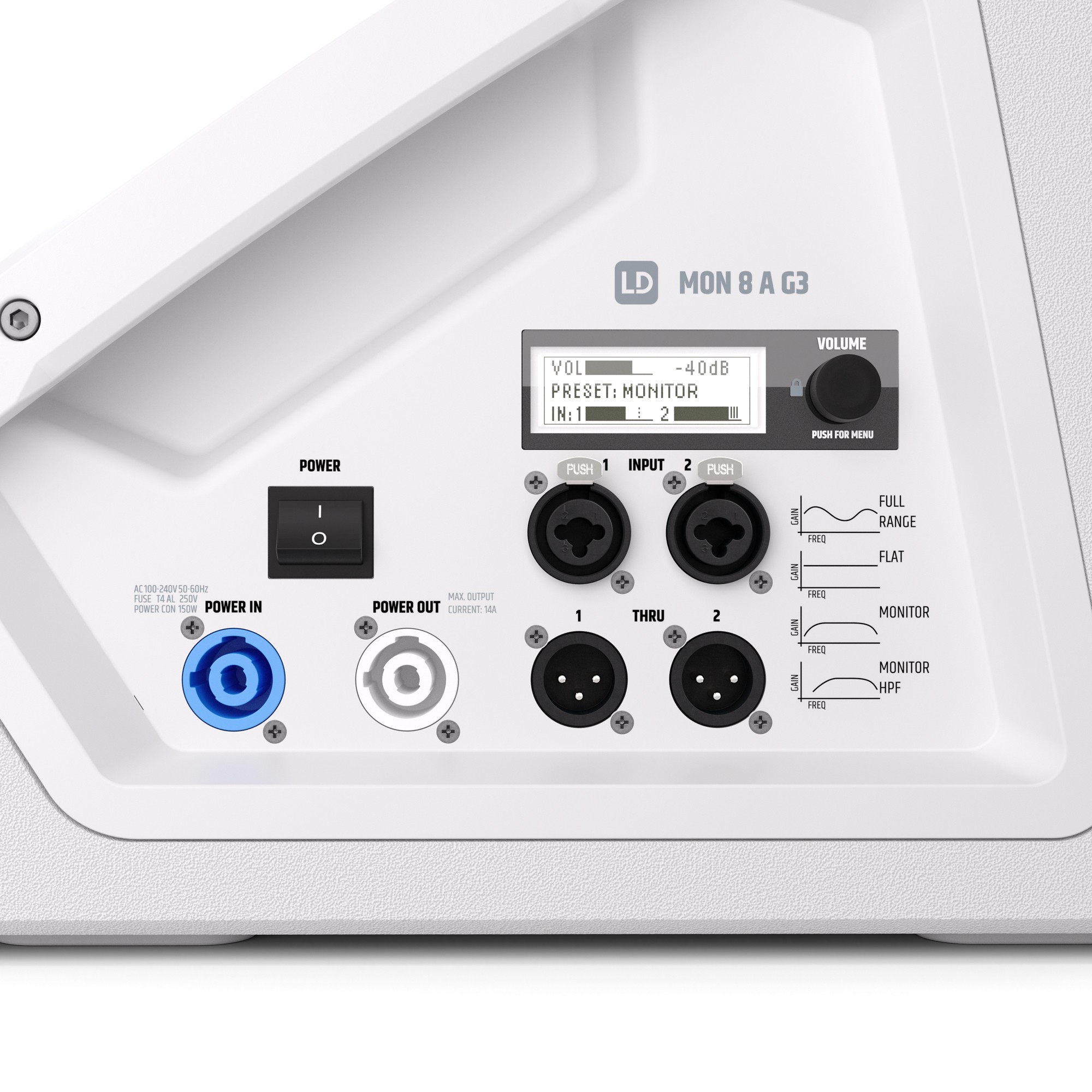

Return connectors are available for the input audio signal (Combo connector, XLR/jack) and the mains power supply (powerCON socket). This allows for elegant and tidy cabling in multi-monitor or sound distribution systems.
Lire la suite

Technical sheet

  • PA power speaker 1001 to 1500 watts RMS
  • Type of PA speaker Stage monitor
  • General
    • Product type : Stage monitor
    • Type : Active
    • Color : White
    • System power (rms) : 300 W
    • System power (peak) : 1200 W
    • Max. SPL Average (Sine burst) : 116 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
    • Max. SPL Peak (Sine burst): 121 dB (fullspace @1m, 10% THD)
    • Frequency response (-3 dB): 68 - 18,000 Hz
    • Frequency response (-10 dB): 59 - 20,000 Hz
    • Crossover frequency: 2500 Hz
    • Monitor angle: 33
    • Dispersion angle (H x V): 50° x 90°.
  • Dimensions
    • Width: 340 mm
    • Depth: 368 mm
    • Height: 278 mm
    • Weight: 13.2 kg
  • Features
    • 4 application presets
    • Delay Line
    • 3-band equalizer (High, Mid, Low)
    • Notch Filter
  • Boomer
    • Diameter: 8" (203.2 mm)
    • Coil: 2.5" (65 mm)
    • Magnet : Ferrite
    • Type: Coaxial loudspeaker
    • Brand: Custom
  • Cabinet
    • Type : Bass Reflex
    • Material: 15 mm birch plywood, 15 mm MDF panel
  • Tweeter
    • Diameter: 1" (25.4 mm)
    • Coil: 1.75" (44.45 mm)
    • Magnet : Ferrite
    • Horn: Constant directivity (CD)
    • Brand: Custom
  • Amplifier Module
    • Amplifier: Class D
    • Protection circuits :
    • Multiband limiter
    • Overload, overtemperature and overvoltage protection
    • Operating temperature: 0 - 40°C
    • Permissible humidity: < 80% (non-condensing)
    • Fuse: T4AL 250 V
  • Settings and indicators
    • Settings: Rotary encoder/pushbutton, on/off switch
    • Indicators: LCD display
  • Power supply
    • Type: SMPS
    • Voltage: 100 - 240 V, 50 - 60 Hz
    • Power consumption: 150 W
    • Power connector: PowerCON compatible
  • Connections
    • Line inputs: 2
    • Connectors: 6.35 mm jack, XLR Combo
    • Line feed-through (Line Out): 2
    • Line Out connectors: XLR
