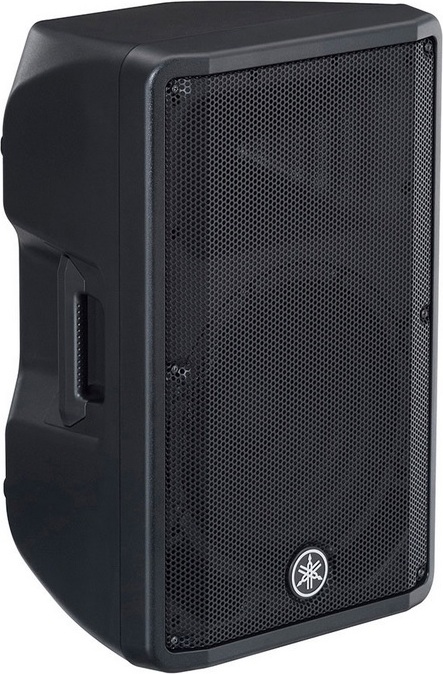

Yamaha DBR12

Active full-range speaker

(2 avis client)

515.00 € 436.00 €
+
-
DOWNLOADING INFO STOCK
  • Need help +33 1 81 930 900

  • Fast delivery

  • Guarantee : 4 Years warranty

    days refund guarantee : within 30 days

Share

Description

Active full-range speaker YAMAHA Dbr12.

Characteristics

Ref : 37941
- Pa power speaker : 151 to 300 watts rms
- Type of pa speaker : stage & foh monitor
2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) 52Hz – 20kHz
Crossover 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Output power Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
Maximum output level (1m; on axis) 131dB SPL
I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipation Fan cooling, 4 speeds
Power requirements 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption 74W(1/8 Power Consumption), 18W(Idle)
Cabinet material Plastic
Finish Black
Handle Side x 2
Flying and mounting hardware Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
Pole socket 35mm (Bottom x 1)

We recommend


ABOUT THIS PRODUCT


How to choose your PR System - Buying guide Power, loudspeaker size, price, efficiency, dimensions, passive or active version... Choosing a loudspeaker is no easy task! In this guide, you will find several ways to help you make your choice acco...
