Ld systems SAT 102 G2 W
- Read reviews (0)
- Related accessories
- Similar products
- Free delivery
- Low prices guaranteed
- Satisfied or refunded
- 3-years warranty
- Ref : 78789
In stock
shipped under 8/10 days
Stock in store
Not available in store
The brand Ld systems
Learn more about the Ld systems brand and discover the entire catalog.
How to choose your PR System Buying guide
Power, loudspeaker size, price, efficiency, dimensions, passive or active version... Choosing a loudspeaker is no easy task! In this guide, you will find several ways to help you make your choice acco
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.
Installation speakers
LD Systems SAT 102 G2 W is a white passive installation enclosure.
The 2-way passive loudspeaker is thus equipped for both vertical and horizontal use, it is ideally suited as a fixed installation and fits well in all environments, and includes a custom 10 "woofer and compression chamber motor. 1 "Celestion, connected to a CD rotary tweeter with an angle of dispersion 80 ° x 60 °.
The SAT 102 G2 achieves a maximum sound pressure of 118 dB, its frequency response ranges from 65 Hz to 19 kHz for a maximum load of 200 watts. The SLR camera is made of 15 mm thick MDF panels and has four M8 suspension points, one input with a speakON-compatible female connector and one terminal block, while another terminal block serves as an output for a parallel connection with ease. .

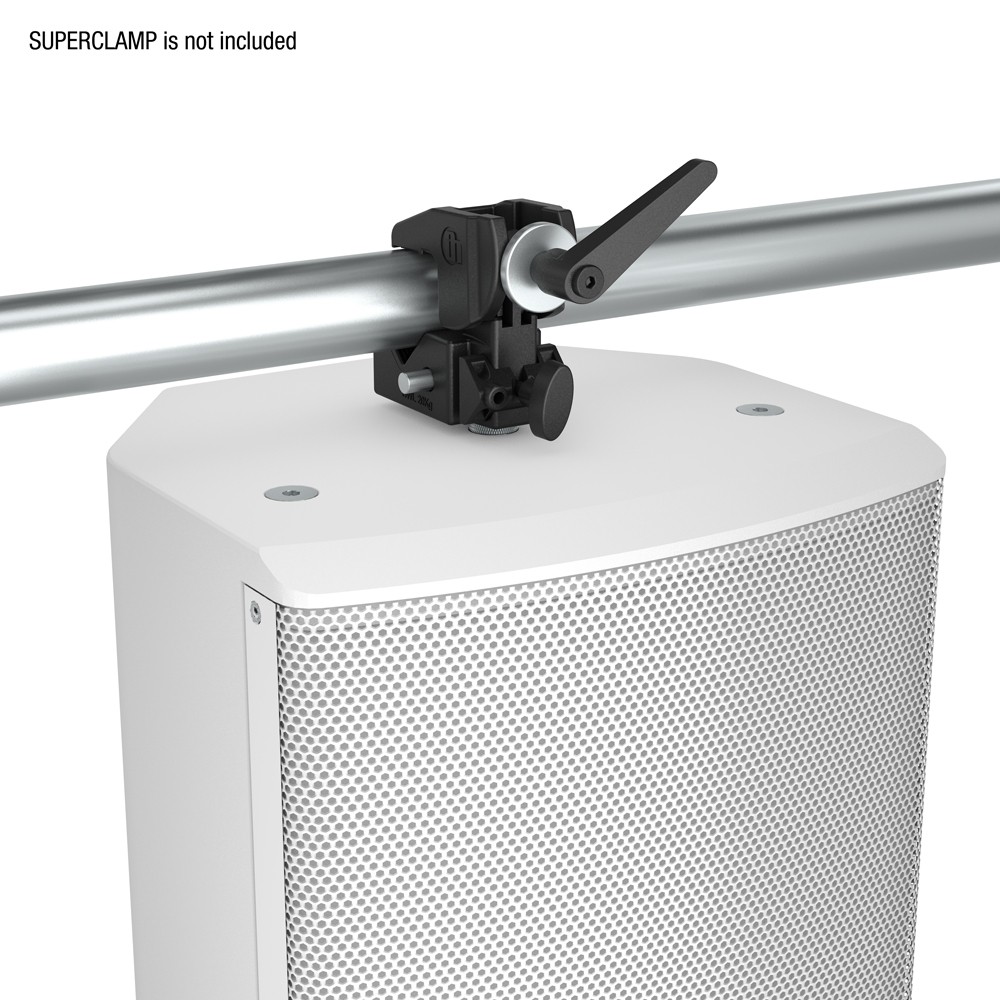

Optional special wall mounts make it easy to mount the speaker. The SAT 102 G2 is available with black finishing lacquer (code LDSAT102G2) or white (code LDSAT102G2W).
The 2-way passive loudspeaker is thus equipped for both vertical and horizontal use, it is ideally suited as a fixed installation and fits well in all environments, and includes a custom 10 "woofer and compression chamber motor. 1 "Celestion, connected to a CD rotary tweeter with an angle of dispersion 80 ° x 60 °.
The SAT 102 G2 achieves a maximum sound pressure of 118 dB, its frequency response ranges from 65 Hz to 19 kHz for a maximum load of 200 watts. The SLR camera is made of 15 mm thick MDF panels and has four M8 suspension points, one input with a speakON-compatible female connector and one terminal block, while another terminal block serves as an output for a parallel connection with ease. .
Optional special wall mounts make it easy to mount the speaker. The SAT 102 G2 is available with black finishing lacquer (code LDSAT102G2) or white (code LDSAT102G2W).
Lire la suite
Technical sheet
- Inside / outside Internal use only
- Type of installation Wall installation
- Product type Fixed installation loudspeakers
- Type Wall Speakers
- Boomer diameter / medium 10 "
- Boomer diameter 254 mm
- Ferrite Boom Magnet
- Custom made boomer brand
- Boomer coil (mm) 50,8 mm
- Constant directivity pavilion (CD)
- Diameter tweeter 1 "
- Tweeter diameter 25.4 mm
- Ferrite tweeter magnet
- Brand tweeter Celestion
- Dispersion angle (H x V) 80 x 60 °
- Power (effective) 200 W
- Power (peak) 400 W
- Frequency response 65 - 19000 Hz
- Sound pressure level (for 1 W to 1 m) 95 dB
- Maximum sound pressure level 118 dB
- Impedance 8 Ohm (s)
- Tweeter protection circuits
- Speaker Inputs 2
- Speakon Compatible Speaker Input Connectors,
- Eurobloc
- Speaker Outputs 1
- Eurobloc speaker output connectors
- Material cabinet MDF panel 15 mm
- Surface of the box Painted structured paint
- Color white box
- Bass Reflex cabinet finish
- Width 300 mm
- Height (mm) 550 mm
- Depth 270 mm
- Weight 12.2 kg
