Ld systems Stinger 10 A G3

  • Read reviews (0)
  • Related accessories
  • Similar products

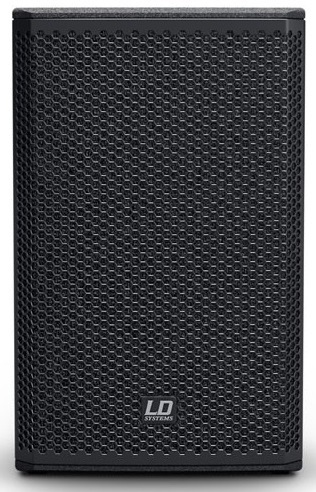

  • Ld Systems Stinger 10 A G3 - Active full-range speaker - Main picture
  • Ld Systems Stinger 10 A G3 - Active full-range speaker - Variation 1
  • Ld Systems Stinger 10 A G3 - Active full-range speaker - Variation 2
  • Ld Systems Stinger 10 A G3 - Active full-range speaker - Variation 3
  • Ld Systems Stinger 10 A G3 - Active full-range speaker - Variation 4
550,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 83413
In stock
shipped under 8/10 days
Stock in store
Not available in store

The brand Ld systems

Learn more about the Ld systems brand and discover the entire catalog.

How to choose your PR System Buying guide

Power, loudspeaker size, price, efficiency, dimensions, passive or active version... Choosing a loudspeaker is no easy task! In this guide, you will find several ways to help you make your choice acco

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Active full-range speaker

the LD Systems Stinger 10 A G3 is a 2-way bass reflex active speaker, 10 inch woofer.

This ultra-professional 2-way active loudspeaker has been designed and manufactured to ensure absolute reliability over time.
Thanks to its multifunction bass reflex box and its user-friendly and carefully optimized presets, the speaker is equally suitable for full-range use as well as satellite or back-stage use. The Stinger® 10 A G3 is powered by a high efficiency digital amplifier, working in Class D, high power (300 W continuous). Its 10-inch boomer, developed specifically, and its tweeter BMS ensure a low downward restitution in the bass and treble fresh and natural. The tweeter waveguide was developed taking into account edge effects (BEM), with a numerical simulation of the radiation and the propagation of sound energy. It reduces reflections on the floor and ceiling, avoids side lobes and provides a controlled and homogeneous dispersion. Thanks to LD Systems DynX® proprietary DSP technology, the Stinger® 10 A G3 provides excellent performance, maximum clarity and maximum projection in all conditions. The signal conditioning filtering / frequency distribution and the multiband limiter provides maximum longevity and a total absence of distortion. Designed to foolproof, its reinforced bass reflex box is made of robust birch plywood. Its extremely durable Polyurea finish provides exceptional stability and durability. The enclosure is equipped with a steel front grille, a Dual-Tilt footwell, grip points and ergonomic handles. The Stinger® 10 A G3 loudspeaker is an attractive professional sound solution, and a wide range of accessories for both stage and fixed installation.
Lire la suite

Technical sheet

  • PA power speaker 301 to 600 watts RMS
  • Type of PA speaker Stage & FOH monitor
  • Product Type PA Speaker
  • Active type
  • Boomer diameter / medium 10 "
  • Boomer diameter 254 mm
  • Magnet Ferrite Boomer
  • Brand Boomer Custom
  • 2 "woofer coil
  • Boom winder (mm) 50,8 mm
  • Horn optimized BEM horn with constant directivity
  • Diameter tweeter 1 "
  • Tweeter diameter 25.4 mm
  • Ferrite tweeter magnet
  • Brand tweeter BMS
  • 1 "tweeter coil
  • 25.4mm Mobile Tweeter Reel Diameter
  • Class D amplifier
  • Dispersion angle (H x V) 90 ° x 50 ° °
  • Power (effective) 300 W
  • Power (peak) 600 W
  • Frequency response 65 - 20000 Hz
  • Peak SPL level (peak) 127 dB
  • Protection circuits Multiband limiter, Overload, Overheating, Overvoltage
  • Input sensitivity -9 dBu

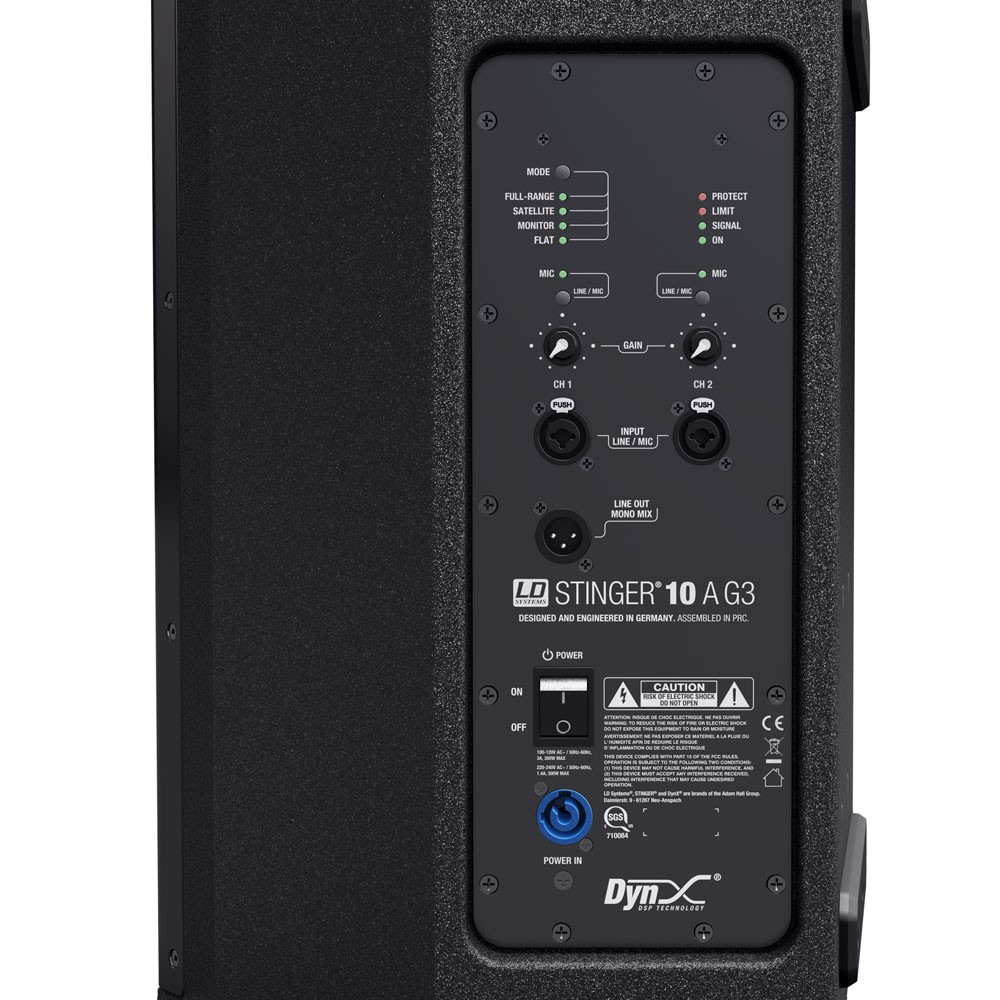

  • Settings 2 x Gain, 2 x Mic / Line
  • Indicators Limit, Microphone, Mode, On, Protect, Signal
  • Inputs line 2
  • 1/4 "XLR Jack Line Input Connectors
  • Outputs line 1
  • XLR Line Output Connectors
  • Mains Voltage 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (Automatic Switching), Power Supply
  • Operating temperature 0 - 40 ° C
  • Relative hygrometry rate <80%, non-condensing
  • Box material Plywood 12 mm
  • Surface of the Polyurea box
  • Bass reflex cabinet finish
  • 54 ° angle monitor
  • Width 325 mm
  • Height (mm) 527 mm
  • Depth 318 mm
  • Weight 12,7 kg
