Ld systems MON 12 A G3 W

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Ld Systems Mon 12 A G3 W - Active full-range speaker - Main picture
  • Ld Systems Mon 12 A G3 W - Active full-range speaker - Variation 1
  • Ld Systems Mon 12 A G3 W - Active full-range speaker - Variation 2
  • Ld Systems Mon 12 A G3 W - Active full-range speaker - Variation 3
  • Ld Systems Mon 12 A G3 W - Active full-range speaker - Variation 4
  • Ld Systems Mon 12 A G3 W - Active full-range speaker - Variation 5
  • Ld Systems Mon 12 A G3 W - Active full-range speaker - Variation 6
  • Ld Systems Mon 12 A G3 W - Active full-range speaker - Variation 7
  • Ld Systems Mon 12 A G3 W - Active full-range speaker - Variation 8
  • Ld Systems Mon 12 A G3 W - Active full-range speaker - Variation 9
  • Ld Systems Mon 12 A G3 W - Active full-range speaker - Variation 10
  • Ld Systems Mon 12 A G3 W - Active full-range speaker - Variation 11
  • Ld Systems Mon 12 A G3 W - Active full-range speaker - Variation 12
  • Ld Systems Mon 12 A G3 W - Active full-range speaker - Variation 13
  • 629.00 €
  • Ref : 114666
615,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
Pre-order
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go

The brand Ld systems

Learn more about the Ld systems brand and discover the entire catalog.

How to choose your PR System Buying guide

Power, loudspeaker size, price, efficiency, dimensions, passive or active version... Choosing a loudspeaker is no easy task! In this guide, you will find several ways to help you make your choice acco

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Active full-range speaker

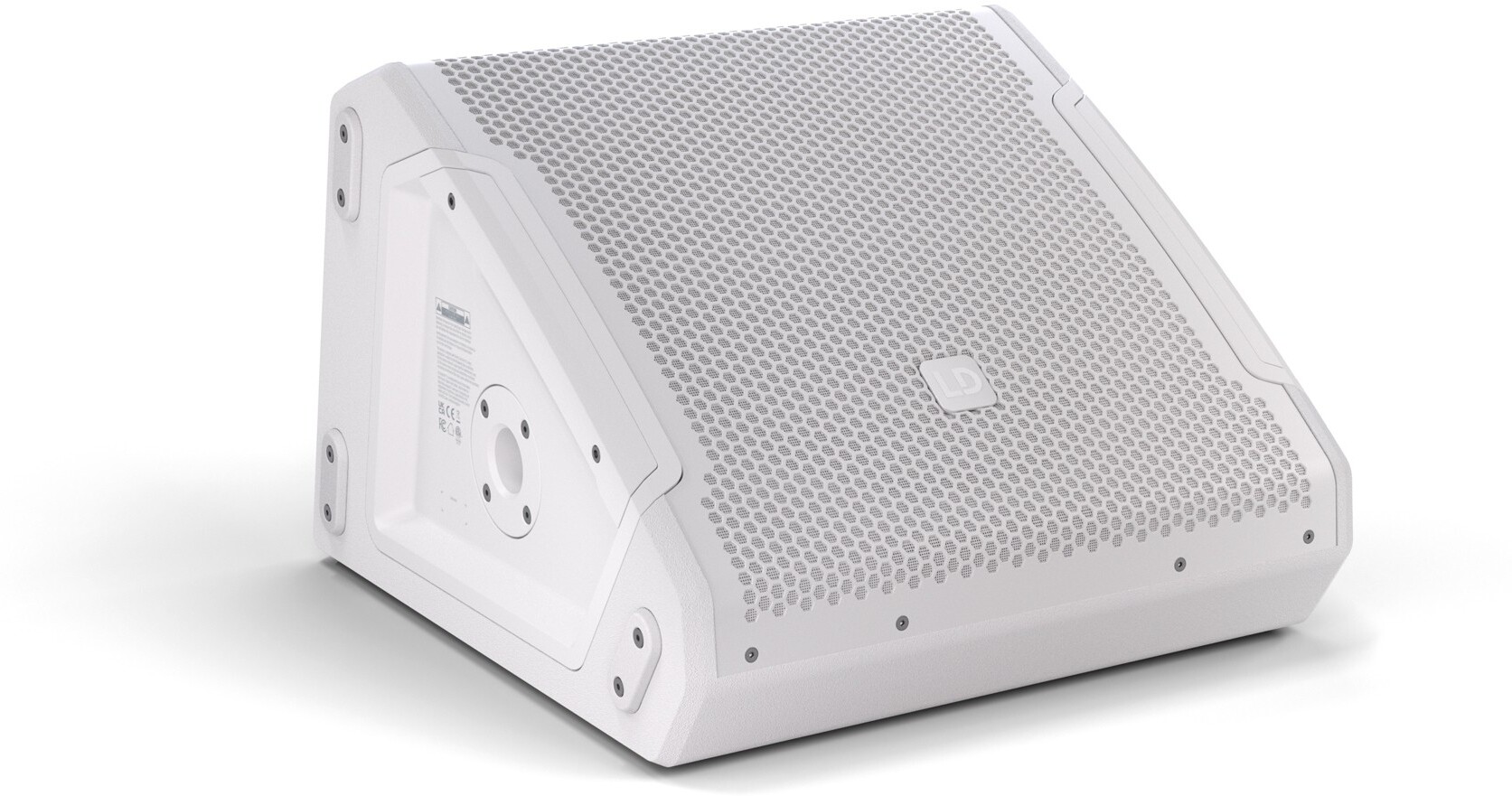

The MON 12 A G3 W is part of an entirely new family of high-performance powered stage monitors.

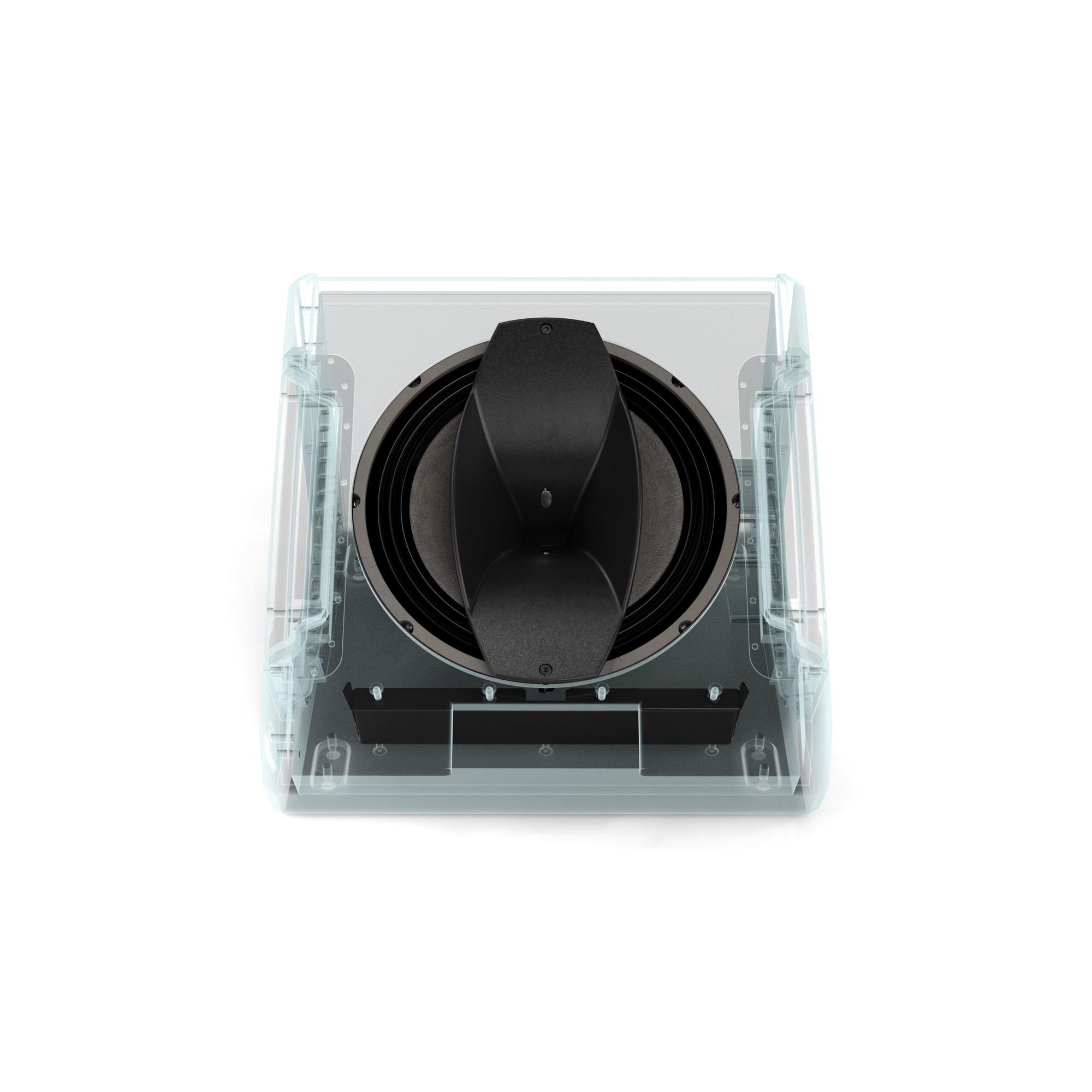

The MON G3 series takes the cutting-edge technology and uncompromising materials found in high-end rental monitors typically used by professionals and makes this quality available to everyone. For example, the advanced coaxial drivers with a 50° x 90° constant directivity horn are a true point source, an acoustically ideal solution that guarantees exceptional audio performance even in close listening situations. In addition, the series offers a high level of robustness, a comprehensive feature set and the elegant look of LD systems.

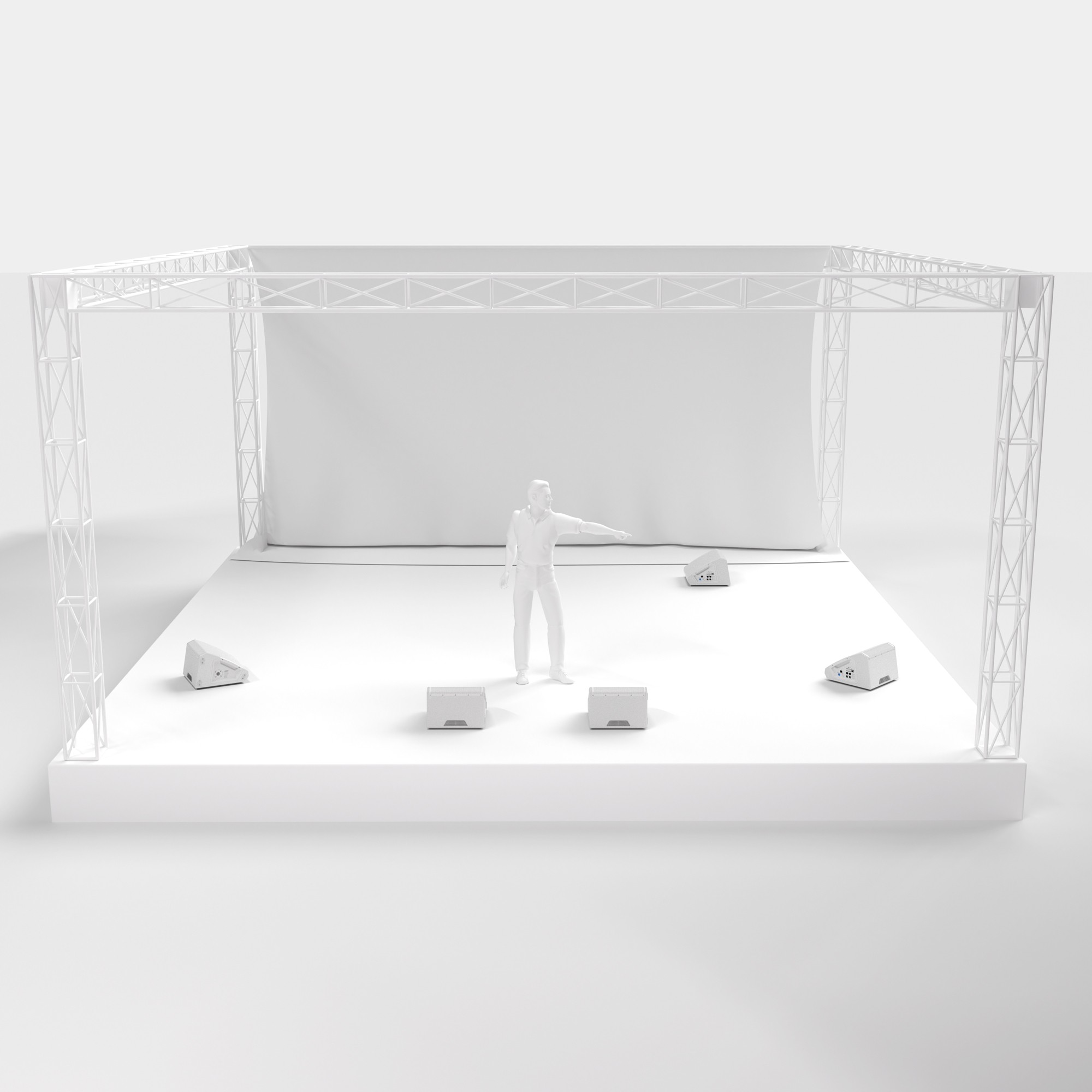

For decades, 12"/1" stage monitors have set the standard for sound quality, sound pressure level and portability. With its coaxial design, intelligent electronics and professional appearance, the MON 12 A G3 W brings this concept into the "modern era". The ideal dispersion of 50° x 90° (stage monitor use) or 90° x 50° (front of house use) makes it a versatile tool that is always the right solution for many different tasks.

Loopback connectors are available for the input audio signal (Combo connector, XLR/jack) and the mains power supply (powerCON socket). This allows for elegant and tidy cabling in multi-monitor or sound distribution installations.
Lire la suite

Technical sheet

  • PA power speaker 1001 to 1500 watts RMS
  • Type of PA speaker Stage monitor
  • Product type
    • Stage monitor
  • Type
    • Active
  • Color
    • White
  • System power
    • Eff. : 300 W
    • Peak: 1200 W
  • Max. SPL level
    • Average (sine burst): 120 dB (100 Hz - 12 kHz, full space, 1 m, 10% THD)
    • Peak (sine burst): 127 dB (full space, 1 m, 10% THD)
  • Frequency response
    • -3 dB: 68 Hz - 18 kHz
    • -10 dB: 55 Hz - 20 kHz
  • Crossover frequency
    • 1400 Hz
  • Monitor angle
    • 33°
  • Dispersion (H x V)
    • 50° x 90°
  • Dimensions
    • Width: 425 mm
    • Depth: 453 mm
    • Height: 315 mm
  • Weight
    • 17.4 kg
  • Features
    • 4 application presets
    • Delay Line
    • 3-band equalizer (High, Mid, Low)
    • Notch filter
  • Speakers
    • Boomer / Midrange: Diameter: 12" (304.8 mm), Magnet : Ferrite, Brand: Custom, Type: Coaxial, Coil: 2.5" (65 mm)
    • Tweeter: Diameter: 1" (25.4 mm), Magnet: Ferrite, Brand: Custom, Coil: 1.75" (44.45 mm)
  • Construction and materials
    • Cabinet type: Bass Reflex
    • Materials: 15 mm birch plywood, 15 mm MDF
  • Integrated amplifier module
    • Amplifier type: Class D
    • Protection circuits: Multiband limiter, overload, overtemperature and overvoltage protection
    • Power consumption: 150 W
    • Mains voltage: 100 - 240 V (50-60 Hz)
    • Power supply: SMPS (PowerCON compatible)
    • Fuse: T4AL 250 V
    • Operating temperature: 0 to 40°C
    • Humidity: < 80% (non-condensing)
  • Connections
    • Line inputs: 2 (6.35 mm jack, XLR combo)
    • Line feed-through: 2 (XLR)
  • Controls and indicators
    • Settings: Rotary encoder/pushbutton
    • On/off switch
    • Indicators: LC display
