Lewitt LCT940

  • Read reviews (1)
  • Related accessories
  • Similar products
  • Lewitt Lct940 -  - Main picture
  • Lewitt Lct940 -  - Variation 1
  • Lewitt Lct940 -  - Variation 2
2039.00 €
1333,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 37180
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go
Other version(s) or associated product(s)

The brand Lewitt

Learn more about the Lewitt brand and discover the entire catalog.

Microphone buying guide

What microphone should you buy to record voice, guitar or drums? Everything is explained through this buying guide!

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Description

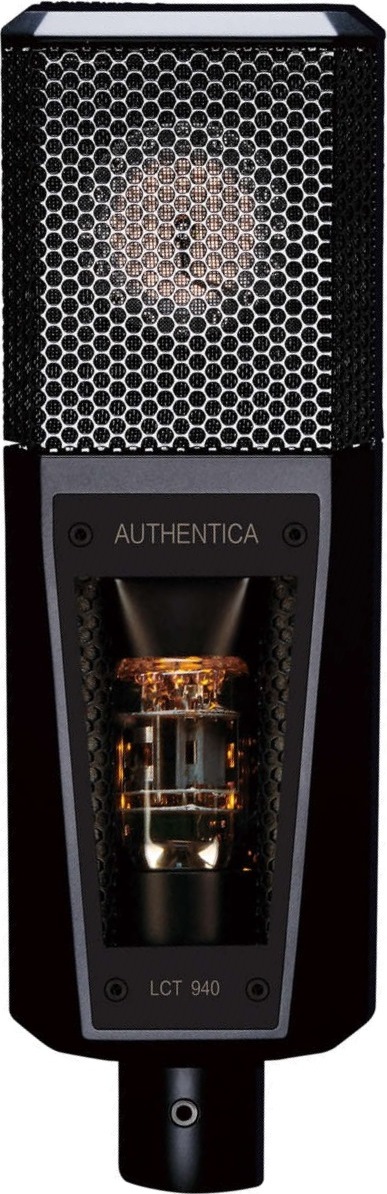

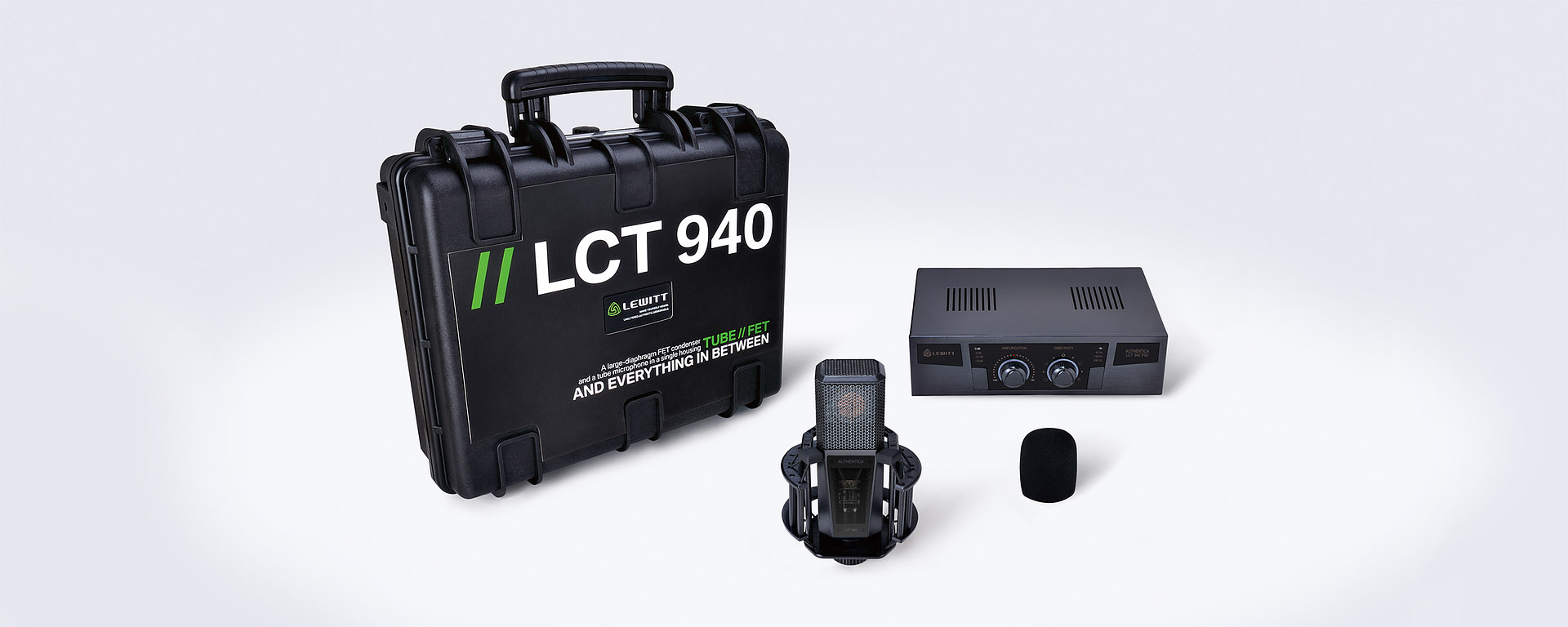

The LCT 940 combines a premium large-diaphragm FET condenser microphone and a top-notch tube microphone in a single housing. Choose between the two main settings of “TUBE” and “FET”, or find your sweet spot in between - they are mixable at any possible ratio.

The dual triode 12AX7 tube delivers a warm and comforting sound with smooth high frequencies while still preserving the ability to cut through the mix. Low self-noise and high dynamic range exemplify how the LCT 940 is vintage design brought into the present.

The LCT 940 is like its country of origin; Vienna, Austria. It is a mixture of old and new, traditional heritage and high-tech. We love rich tube sound, and we love precision and transparency. The freedom of having both and everything in between makes the LCT 940 a dream come true for all recording professionals.
Lire la suite

Technical sheet

  • Type :Condenser, externally polarized
  • Acoustical operating principle Pressure gradient transducer
  • Transducer Ø
  • 25.4 mm, 1 in
  • Polar pattern :Omni, wide cardioid, cardioid, supercardioid, figure-8, four intermediate patterns
  • Frequency range :20 ... 20,000 Hz
  • Sensitivity
  • 23 mV/Pa, -33 dBV/Pa (cardioid)
  • 20 mV/Pa, -34 dBV/Pa (omni)
  • 23 mV/Pa, -33 dBV/Pa (figure-8)
  • Equivalent noise level (FET)
  • 8 dB (A), cardioid
  • 9 dB (A), omni
  • 8 dB (A), figure-8
  • Equivalent noise level (Tube)
  • 12 dB (A), cardioid
  • 13 dB (A), omni
  • 12 dB (A), figure-8
  • Max. SPL for 0.5 % THD (FET)
  • 143 dBSPL, 0 dB pre-attenuation
  • Max. SPL for 0.5% THD (Tube)
  • 140 dBSPL, 0 dB pre-attenuation
  • Signal / noise ratio (FET)
  • 86 dB (A)
  • Signal / noise ratio (Tube)
  • 82 dB (A)
  • Dynamic range of FET mic. Amp.
  • 135 dB
  • Dynamic range of Tube mic. Amp.
  • 128 dB
  • Pre-attenuation pad
  • 0 dB
  • -6 dB
  • -12 dB
  • -18 dB
  • Low-cut filter
  • linear
  • 40 Hz (12 dB/oct)
  • 150 Hz (6 dB/oct)
  • 300 Hz (6 dB/oct)
  • Internal impedance
  • 200 Ω
  • Rated load impedance
  • 1,000 Ω
  • PSU - supply voltage
  • 230 V, 50 Hz
  • 110 V, 60 Hz
  • Current consumption
  • 170 mA
  • Connector
  • Gold plated 11-pin XLR
  • Microphone dimensions
  • 192 x 60 x 46 mm, 7.5 x 2.4 x 1.8 in
  • PSU dimensions
  • 250 x 150 x 70 mm, 9.8 x 5.9 x 2.8 in
  • Microphone net weight
  • 662 g, 23.3 oz
  • PSU net weight
  • 1930 g, 68.1 oz
More specifications
Fewer specifications
