Description

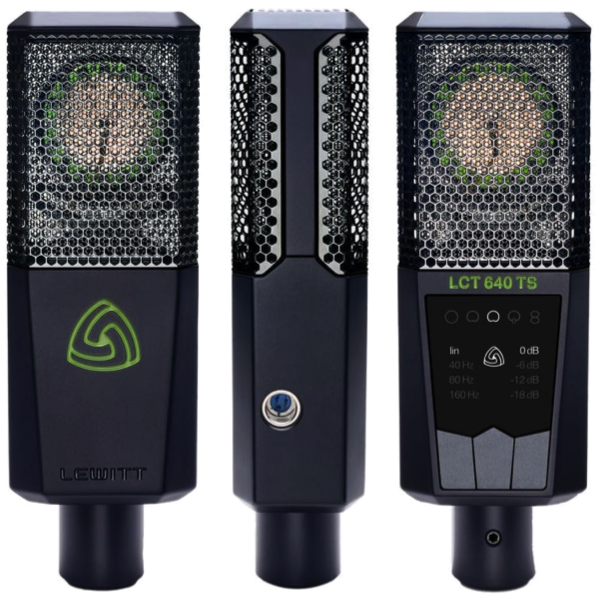

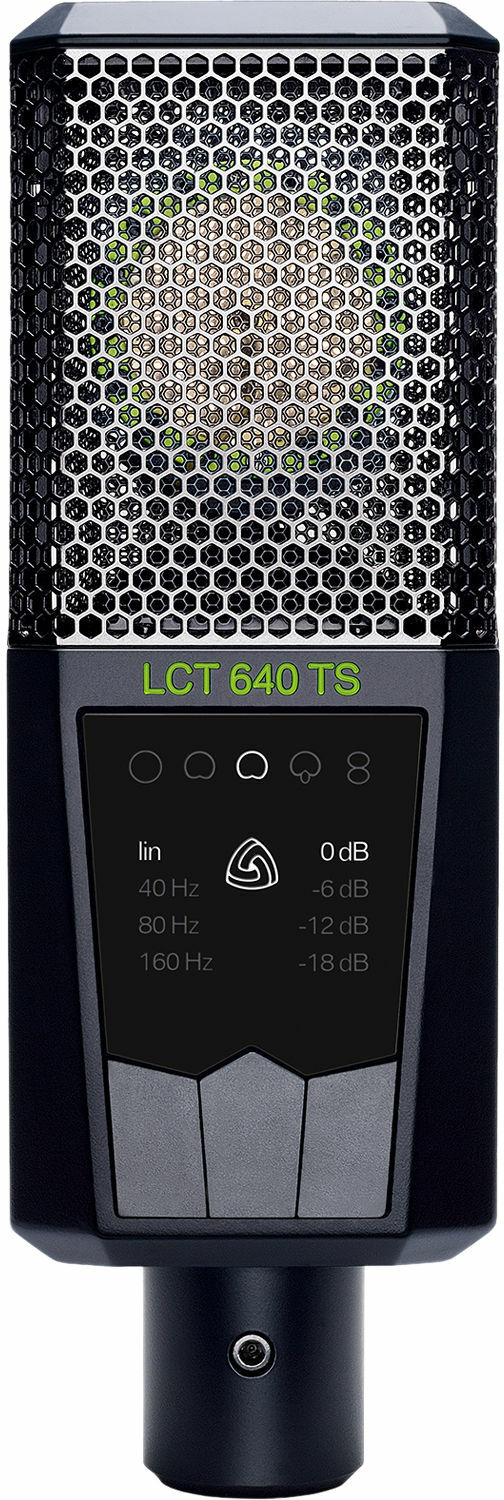

Designed and engineered in Austria, the LCT 640 TS will revolutionize the way we think about the recording process. Since the signal of the front and back diaphragm is provided by independent circuitries, any kind of polar pattern can be realized dynamically - even after the recording.

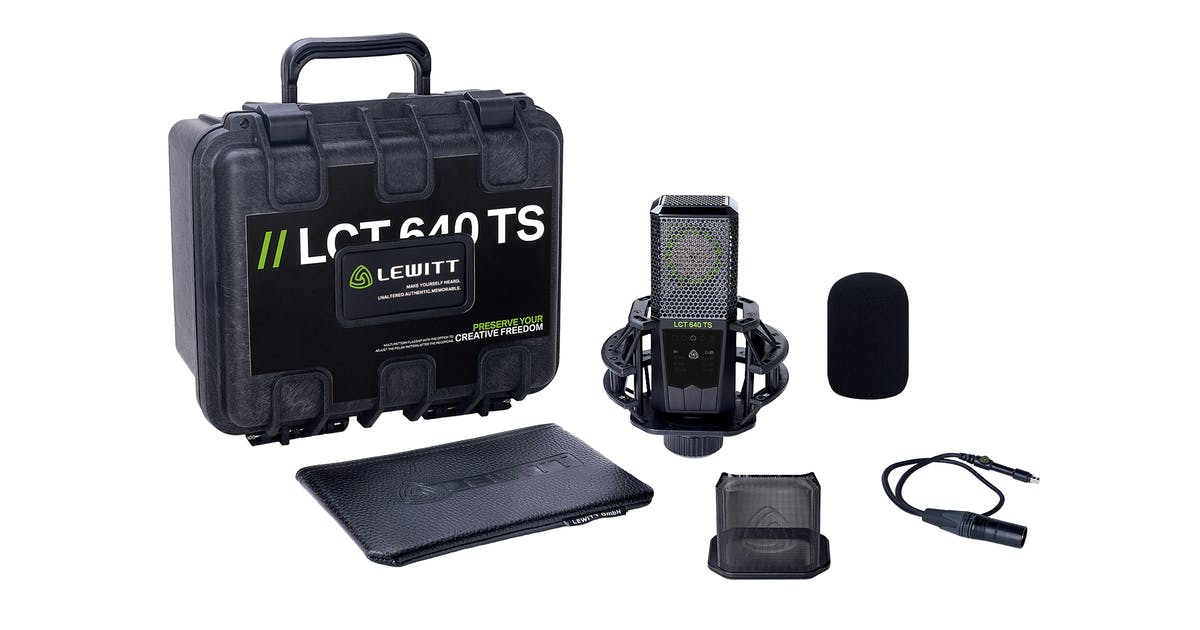

The LCT 640 TS provides the signal of the front and the back diaphragm of the capsule separately. In addition to your standard XLR cable plug in the included adapter cable and experience all the possibilities of this true next-gen microphone. Use both outputs to capture the whole session instead of committing to a single source.
The LCT 640 TS provides the signal of the front and the back diaphragm of the capsule separately. In addition to your standard XLR cable plug in the included adapter cable and experience all the possibilities of this true next-gen microphone. Use both outputs to capture the whole session instead of committing to a single source.
Lire la suite
Technical sheet
- Type :Condenser, externally polarized
- Acoustical operating principle :Pressure gradient transducer
- Diaphragm :3 micron gold sputtered Mylar
- Transducer Ø :25.4 mm, 1 in
- Polar pattern (Dual Output Mode) :Create any polar pattern in post-production
- Polar pattern (Multi-Pattern Mode) :omni, wide cardioid, cardioid, supercardioid, figure-8
- -Sensitivity
- 31.4 mV/Pa, -30.1 dBV/Pa (cardioid)
- 30.3 mV/Pa, -30.3 dBV/Pa (omni)
- 34.1 mV/Pa, -29.4 dBV/Pa (figure-8)
- -Equivalent noise level
- 10 dB (A), cardioid
- -Max. SPL for 0.5 % THD
- 134 dBSPL, 0 dB pre-attenuation
- Signal / noise ratio
- 84 dB (A)
- -Dynamic range
- 124 dB (A)
- Pre-attenuation pad
- 0 dB
- -6 dB
- -12 dB
- -18 dB
- Low-cut filter
- linear
- 40 Hz (12 dB/oct)
- 80 Hz (12 dB/oct)
- 160 Hz (6 dB/oct)
- Internal impedance
- 110 Ω
- Rated load impedance
- 1,000 Ω
- Supply voltage
- 48 V ± 4 V
- Current consumption
- 5.1 mA
- Mic enclosure
- Zinc die cast
- Connector
- Gold plated 3-pin XLR + Mini 3-pin XLR
- Microphone dimensions
- 158 x 52 x 36 mm, 6.22 x 2.04 x 1.42 in
- Microphone net weight
- 425 g, 14.9 oz
